A Description of the User Interface Getting Started

Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 45

How to Access the Details Screen

You can access the parameters of a module that are not shown on the

overview screen by pressing Channel to select the channel and

pressing the [Details] softkey. You should see the Details screen as

shown in Figure 13, Figure 14, or Figure 15.

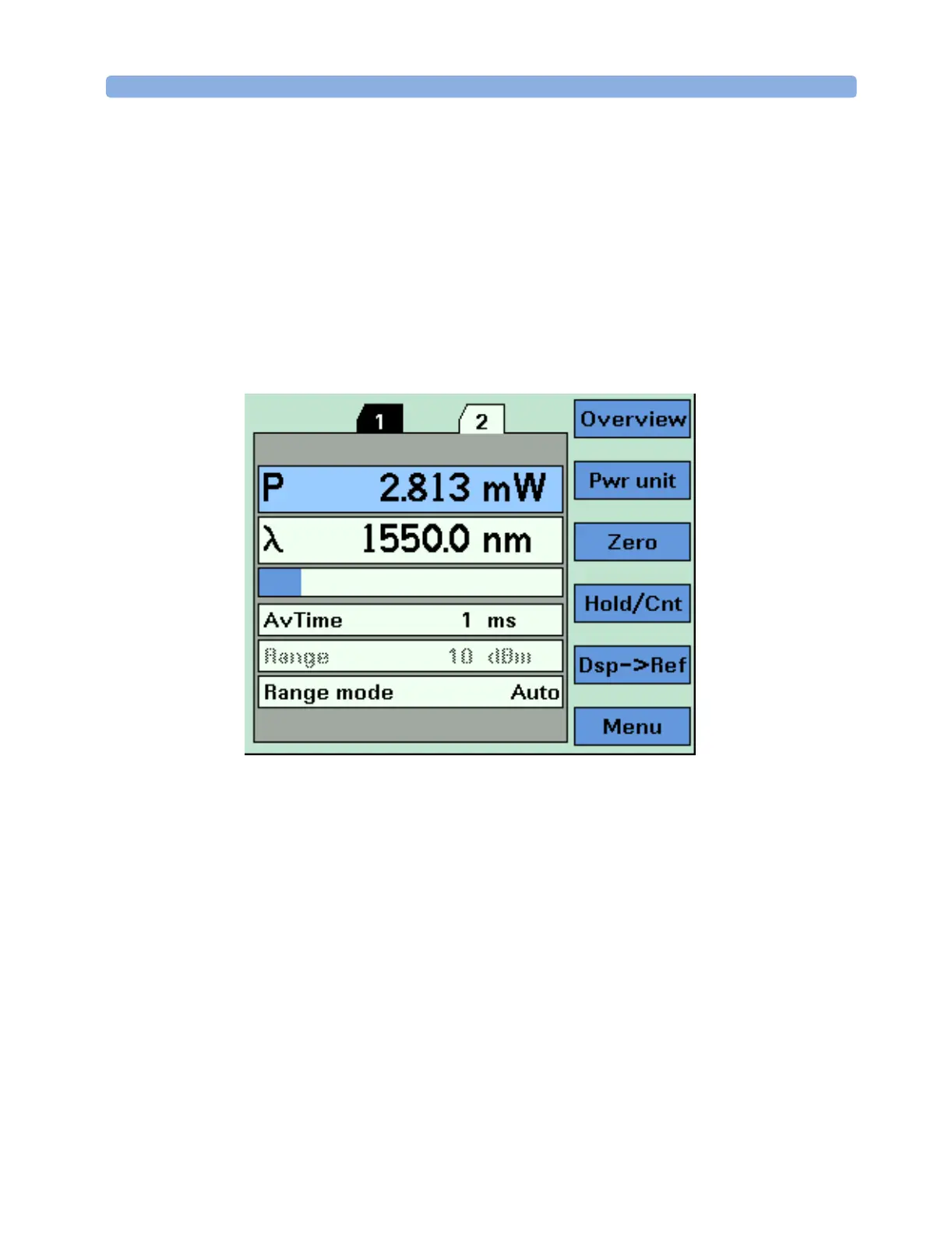

Figure 13 The Agilent 8163B’s Details Screen for a Power Sensor Channel
