A Description of the User Interface Getting Started
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 43
Figure 10 shows the overview screen for the Agilent 8166A Lightwave
Multichannel System, this screen is shown immediately after start-up.
It shows the module slots that are occupied.
How to Use the Cursor Key
You can move the highlighted marker between parameters using the
[Cursor] hardkey.
When editing a parameter, see “How to Change the Value of a
Parameter” on page 52, the up and down cursor keys can be used to
increment and decrement the value of a digit and the left and right
cursor keys can be used to move the highlighted digit left and right.
How to Use the Numerical Keypad
NOTE The Numerical Keypad is only available if you use the
Agilent 8164A/B.

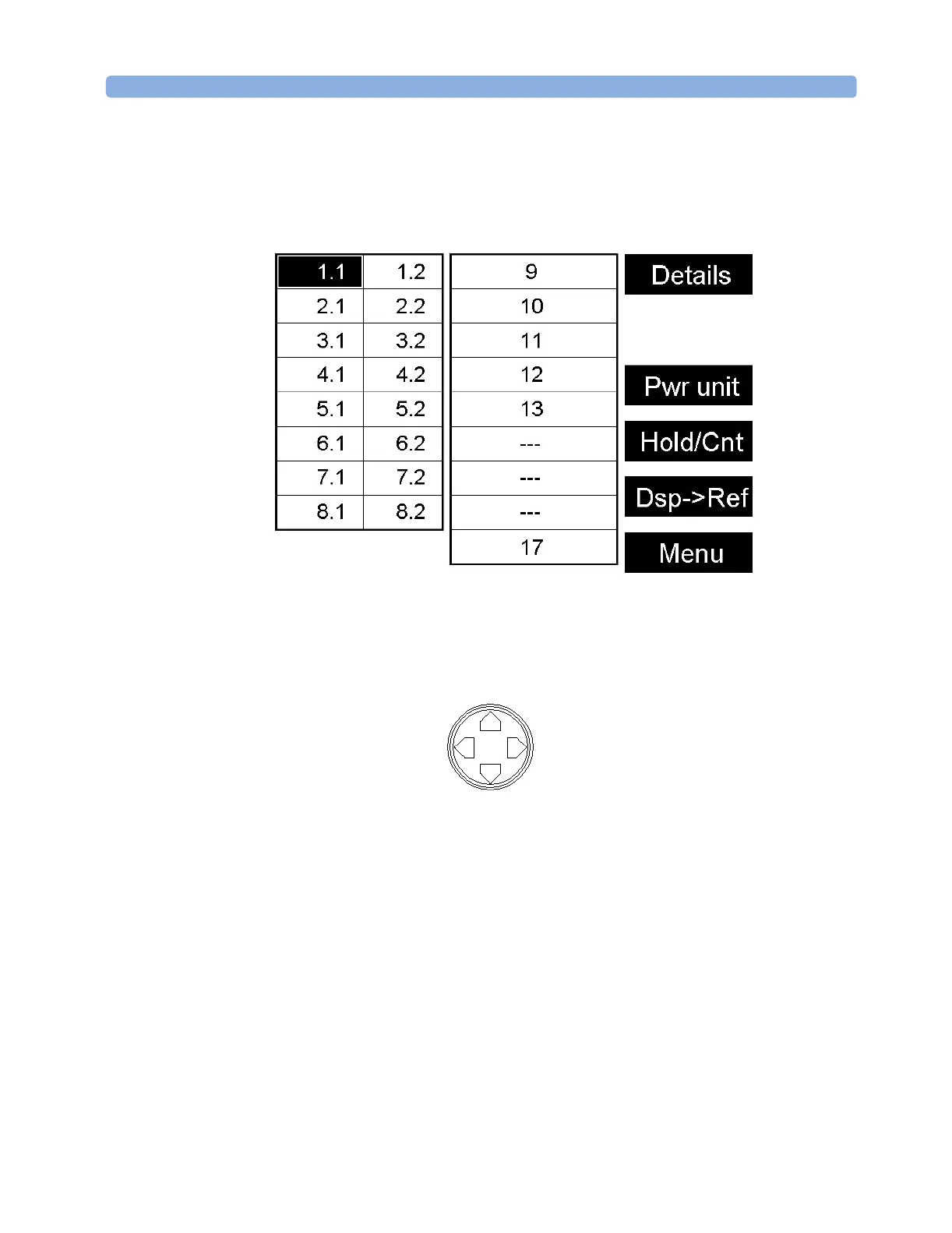

Figure 10 The Agilent 8166A Overview Screen
Figure 11 The Cursor Key
