Applications The Stability Application
246 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
Viewing the Statistics for a Power Meter Channel
25 If you are using the Agilent 8164A/B, move to [Stat Ch.], press
Enter, move to a Power Meter channel, and press Enter.
If you are using the Agilent 8163A/B, press [More], a screen similar
to that shown in Figure 161 appears, move to [Stat Ch.], press
Enter, move to a Power Meter channel, and press Enter.

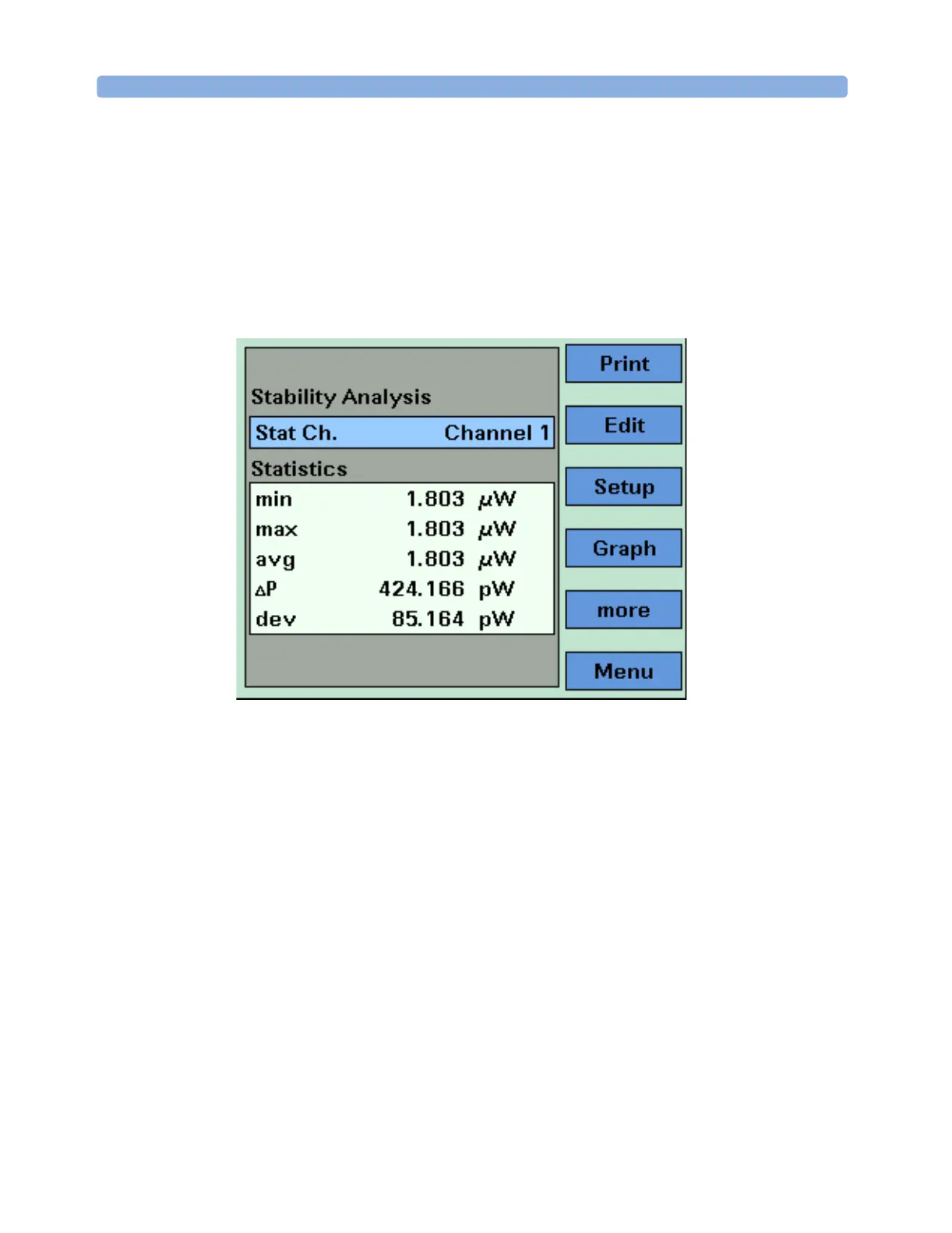

Figure 161 The Agilent 8163A/B Stability Analysis Screen - Second Screen
The following statistics are displayed for the chosen Power Meter
channel:
–[min], the minimum power measurement measured,
–[max], the maximum power measurement measured,
–[avg], the average of all power measurements measured,
–[
∆P], the difference between [max] and [min],
–[dev], the standard deviation of all power measurements
measured.
On-Screen Messages
The messages listed in the table below may appear at the top of the
screen during the Stability application.
