Switching Optical Routes Typical Applications
210 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
Typical Applications
This section provides some examples of typical test configurations
that demonstrate how an Agilent 8159xA/S Optical Switch module can
be used to achieve test automation, and improve test repeatability.
If your test configuration requires more than one 1x2 Optical Switch,
you can use the Agilent 81592A/S dual 1x2 Optical Switch modules to
reduce the number of mainframe slots required.
Selecting a Laser Source

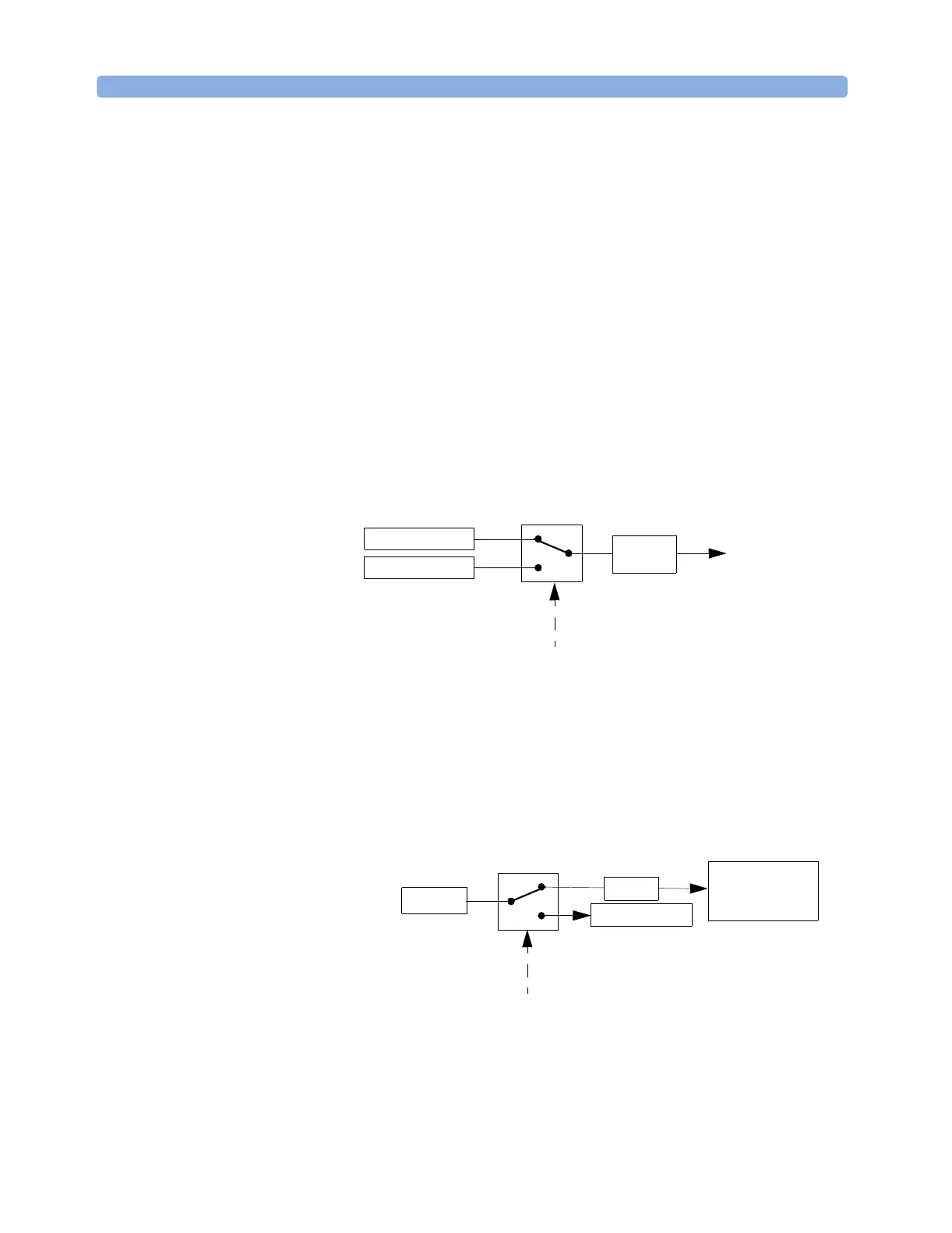

In Figure 130, an Agilent 81591A/S 1x2 Optical Switch is used to select
one of two different sources (different wavelengths) as the input to the
DUT.
Figure 130 Laser Source selection
Selecting Measurement and Calibration
Paths
In Figure 131, an Agilent 81591A/S 1x2 Optical Switch is used to select
between the measurement path and the calibration path.
Figure 131 Measurement Path selection
1310 nm source
1550 nm source
DUT
automated control
measurement
and analysis
equipment
Power Meter
DUT
automated control
measurement
and analysis
equipment
Source
To Next Page
