A Description of the User Interface Getting Started
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 41
The channel number of single channel modules is always one.
How to Navigate/Modify the Display
Overview Screen
Figure 8 shows the overview screen for the Agilent 8163B Lightwave
Multimeter, this screen is shown immediately after start-up. It shows
the most important parameters of all installed modules.

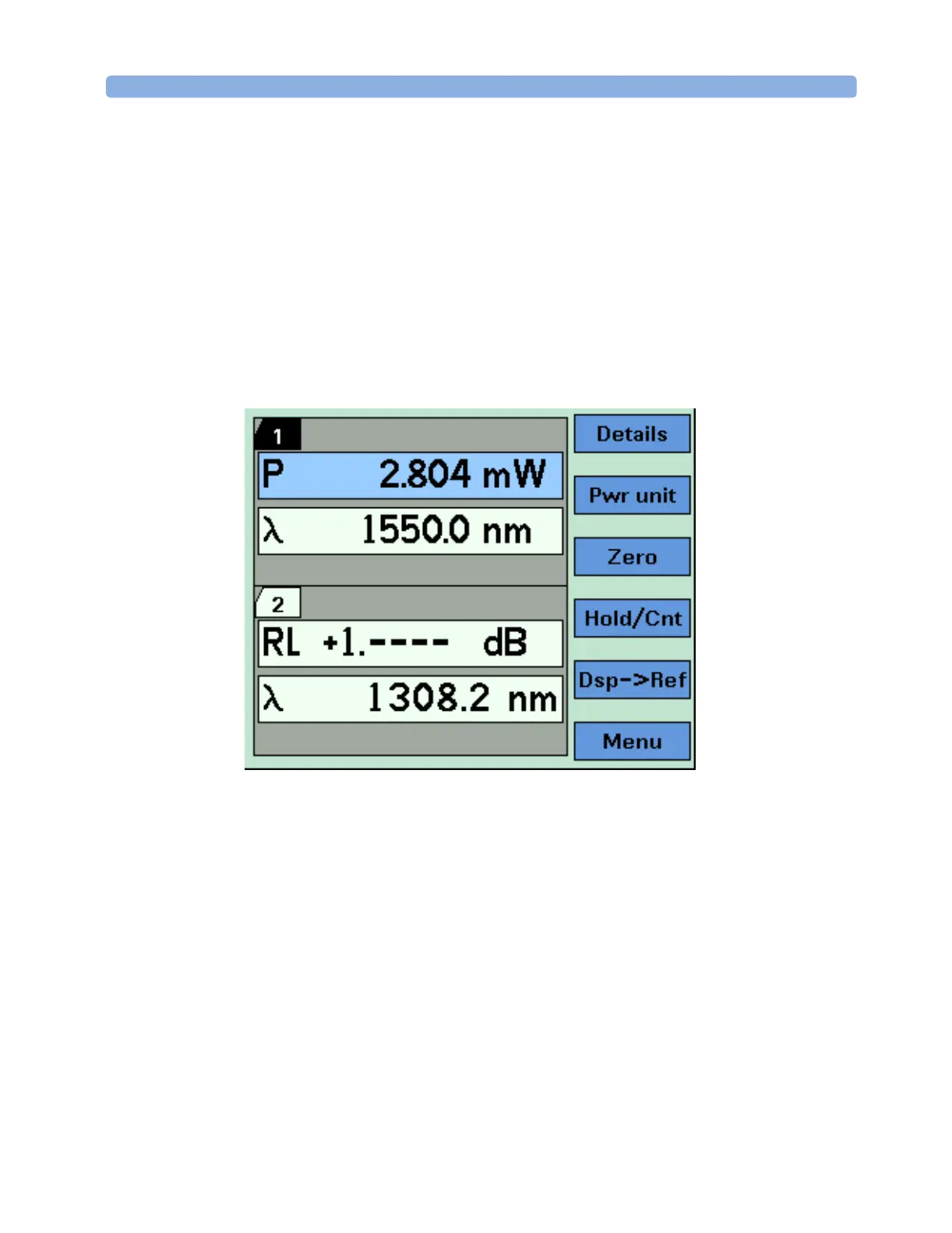

Figure 8 The Agilent 8163B’s Overview Screen
NOTE The display of the Agilent 8163A and the Agilent 8166A is black and
white only.
