Installation and Maintenance Using Modules
286 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition
2 Pull the module out of the mainframe, using the handle, being
careful to keep the module completely flat.

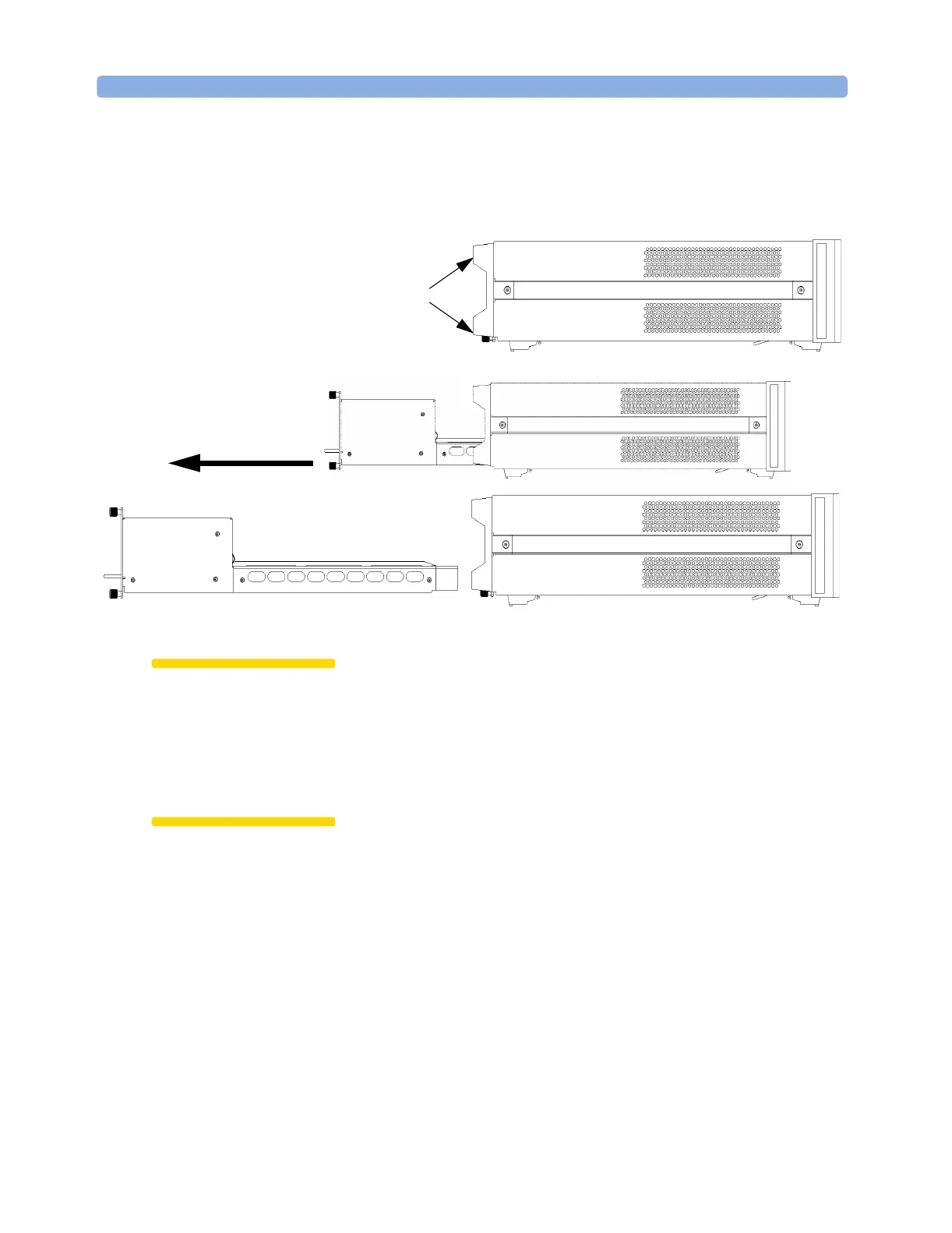

Figure 191 Removing a Back-Loadable Module from the Agilent 8164A/B
CAUTION If you pull the module out at an angle or vertically, you may damage
the instrument and the module. You should pull the module out along
the direction shown by the arrow in Figure 191.
How to Fit a Back-Loadable Module
CAUTION Disconnect all electrical and optical connectors before you fit this
module into the instrument, as this can cause damage to the
connectors.
Make sure that the instrument is in stand-by mode, see page 275,
before you remove a module.
Untighten Retaining Screws
Remove module by pulling
along the direction shown
by this arrow
