Using Modules Installation and Maintenance
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 287

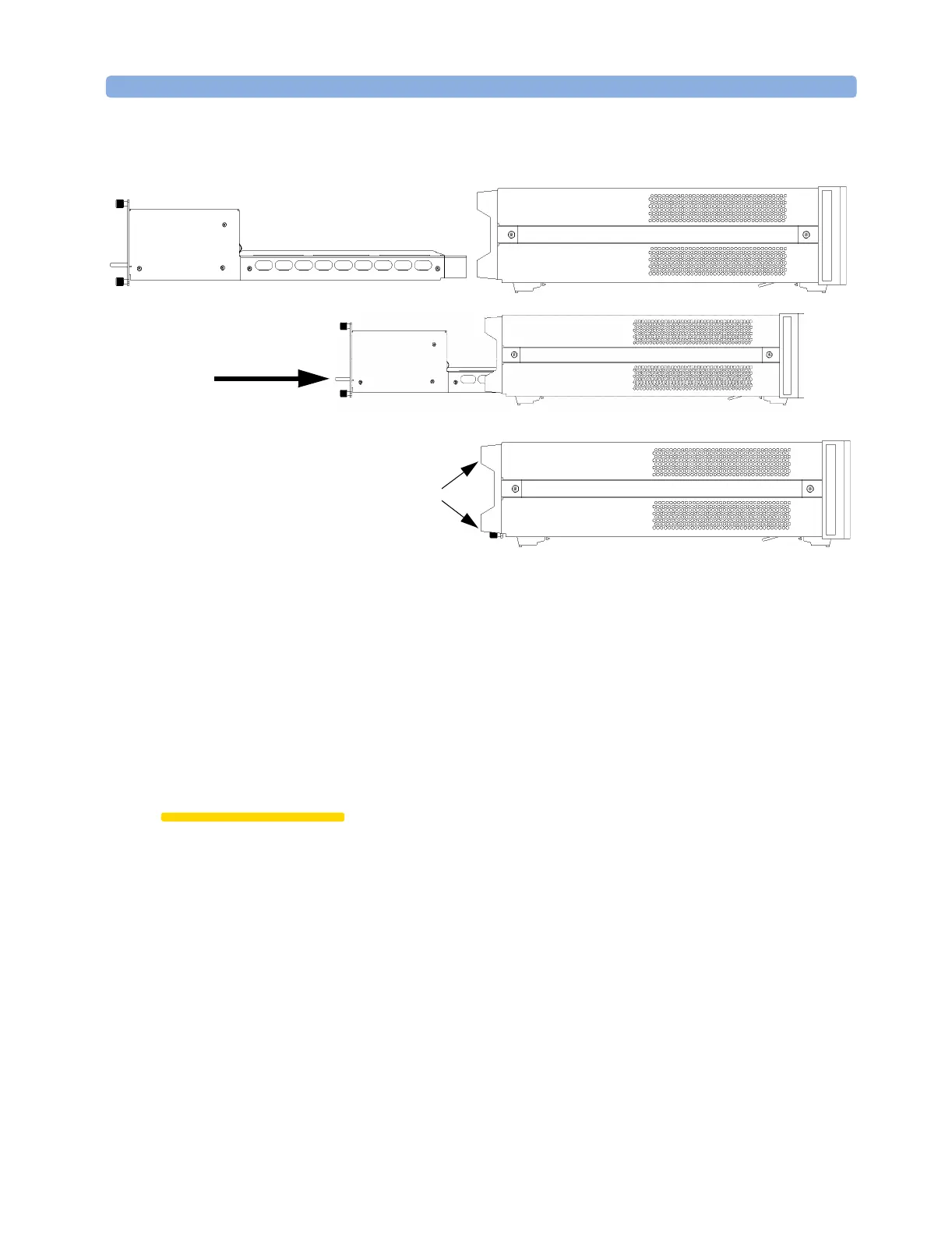

Figure 192 Fitting a Back-Loadable Module
1 Position the module at the rear of the instrument as shown in
Figure 192.
2 Insert the module into the mainframe, using the handle, being
careful to keep the module completely flat. If the module does not
slide freely, check that you have correctly oriented it and that there
is no obstruction to its movement.
CAUTION If you insert the module at an angle or vertically, you may damage the
instrument and the module. You should insert the module along the
direction shown by the arrow in Figure 192.
3 Apply pressure to the handle, and push the module as far as it goes.
You hear a small click when the module reaches its installed
position. This is the catch making contact.
4 Tighten retaining screws, to hold module in place.
Tighten Retaining Screws
Insert module
along the direction shown
by this arrow
