Typical Applications Switching Optical Routes
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 211
Inserting or Bypassing an Optical
Component
In Figure 132, an Agilent 81594A/S 2x2 non-blocking (crossover)
Optical Switch is used to insert or bypass a fiber spool.

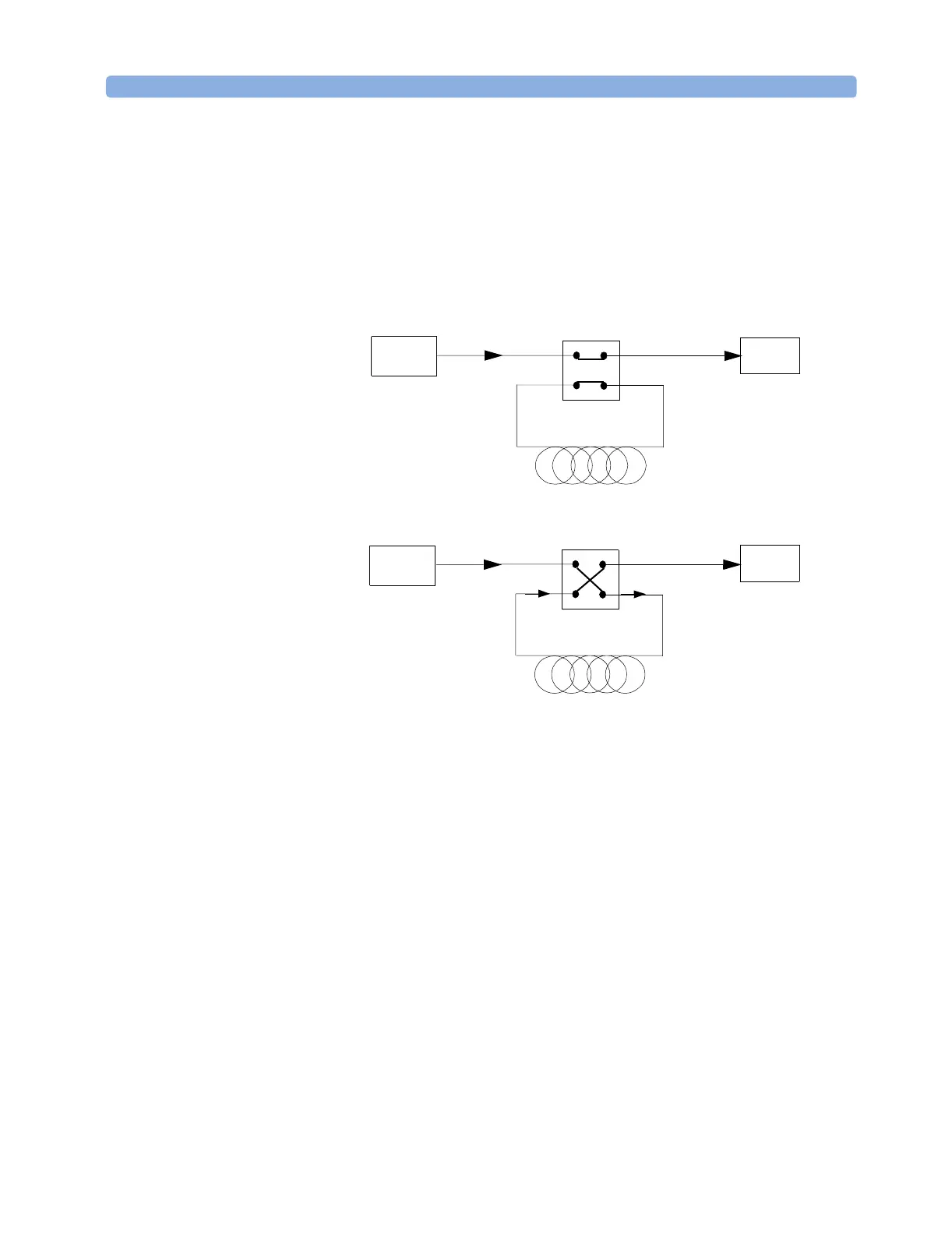

Figure 132 Circuit selection with crossover switch
input
signal
output
input
signal
output
fiber spool
fiber spool
Bypass position
Insert position
