Working with Application Graphs Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 219
– Move to the required character using the cursor keys and press
the [Select] softkey to select to add the selected character to the
end of the legend label.
– Press the [Delete] softkey to delete the last character of the legend
label.
– Press the [CapsLock] softkey to toggle between upper and lower
case characters.
– Press the [Cancel] to reject the edited legend label and return to
the menu.
– Press the [OK] to accept the edited legend label and return to the
menu.
How to Select the Samples Display
The samples display determines how the curves of the graph are
represented. To choose the samples display:
1 Press the [Menu] softkey and move to <Samples Display>. A box
displaying the following options appears:
–<Line> - the curve will be displayed using a line that connects
between each sample of the curve.

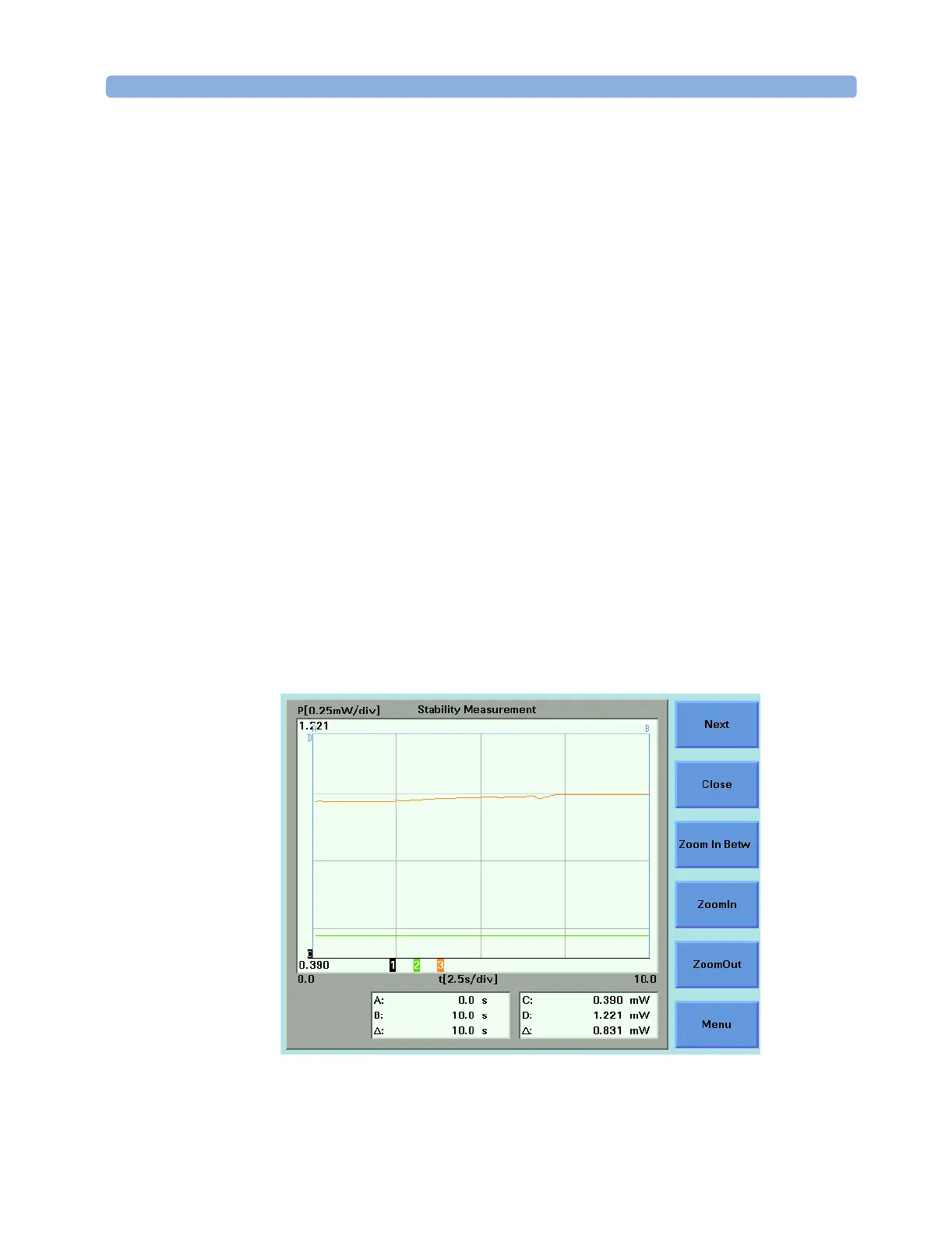

Figure 137 Samples Display - <Line>
