A Description of the User Interface Getting Started

Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 49

How to Change the System Configuration

Press the Config hardkey to access all the system configuration

parameters that can be changed. Figure 18 and Figure 19 show the

menu you should see. See “Additional Information” on page 59 for

more details.

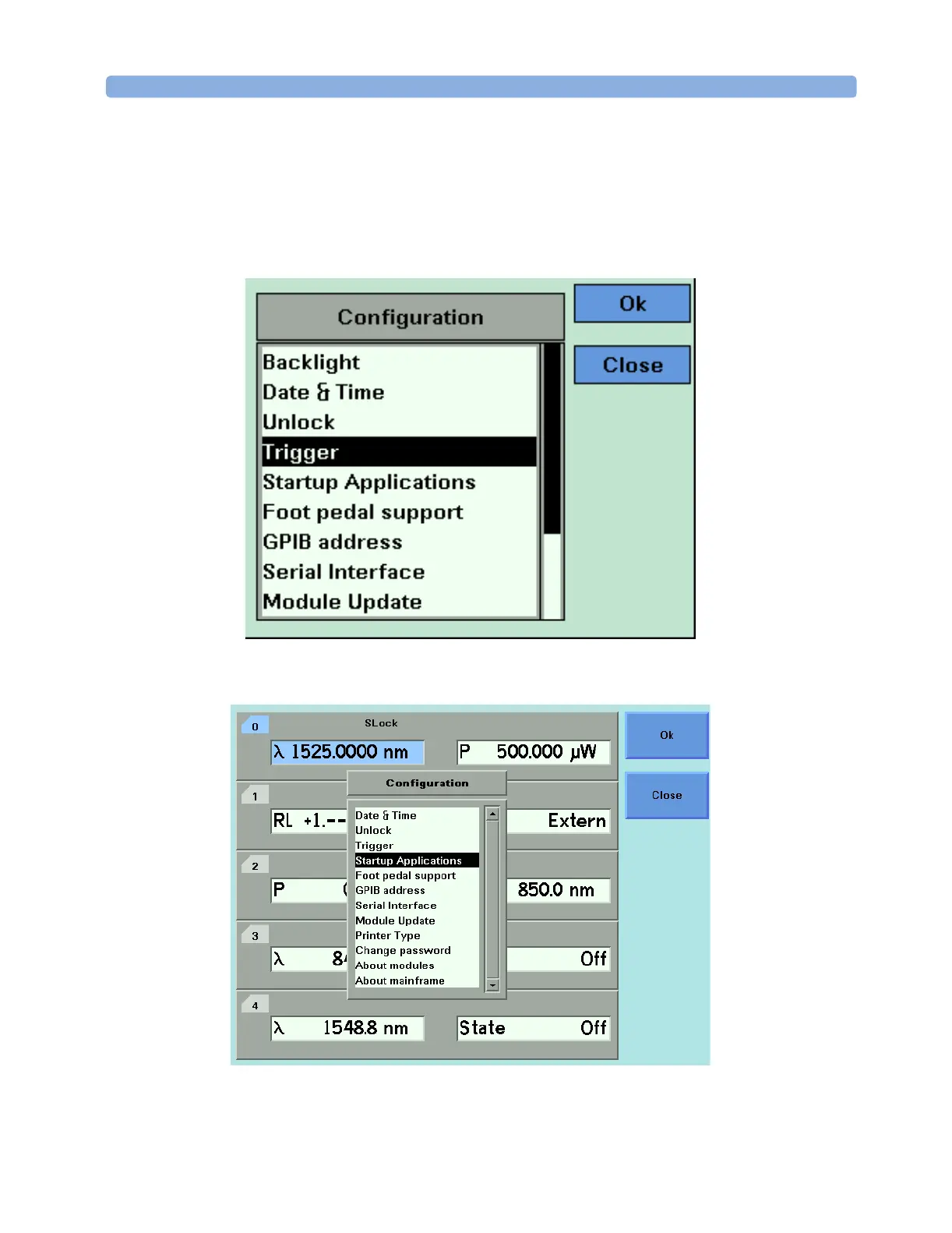

Figure 18 The Agilent 8163B System Configuration Menu

Figure 19 The Agilent 8164A/B System Configuration Menu
