Using the System Utilities Additional Information
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 69
2 Move to the <Serial Interface> menu option and press Enter. You
see a box displaying all the available line speeds in bps.
3 Move to the Baudrate required and press Enter.
NOTE The Baudrate set for the serial interface of the instrument should
match that set for the PC serial interface connected to it.
The PC serial interface should be configured to match the instrument’s
fixed parameters. Refer to “Serial Interface” on page 293
How to Update a Module
For information about instrument and module firmware upgrade
procedures refer to “Firmware Upgrades” on page 431
To set the mainframe in Module Update mode:
NOTE Module Update mode is necessary only when updating a module via
the serial interface.
1 Press the Config hardkey.
2 Move to the <Module Update> menu option and press Enter. You see
a box that displays Module Update mode as on.

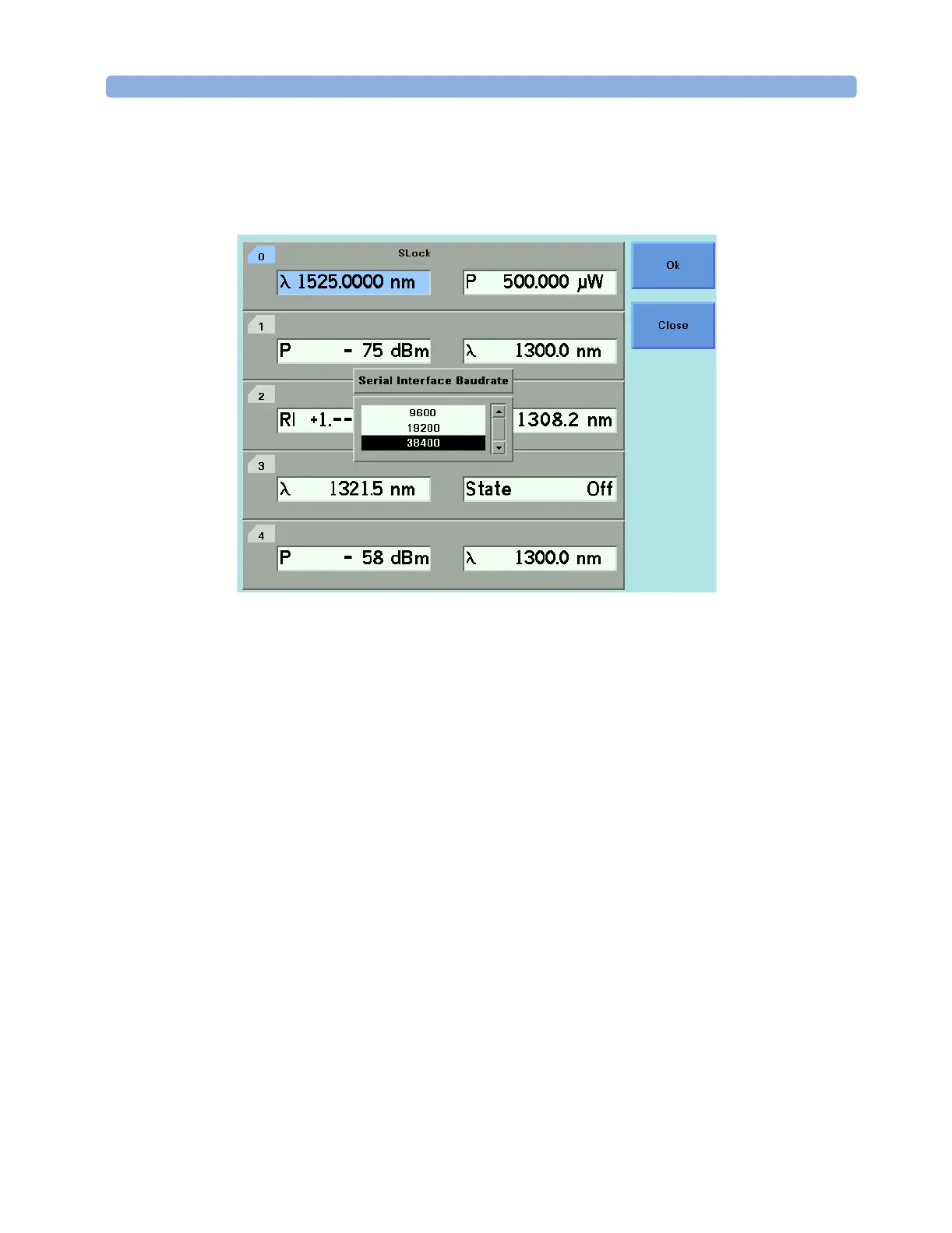

Figure 34 Selecting a Baudrate for the Serial Interface
