Getting Started A Description of the User Interface

42 Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition

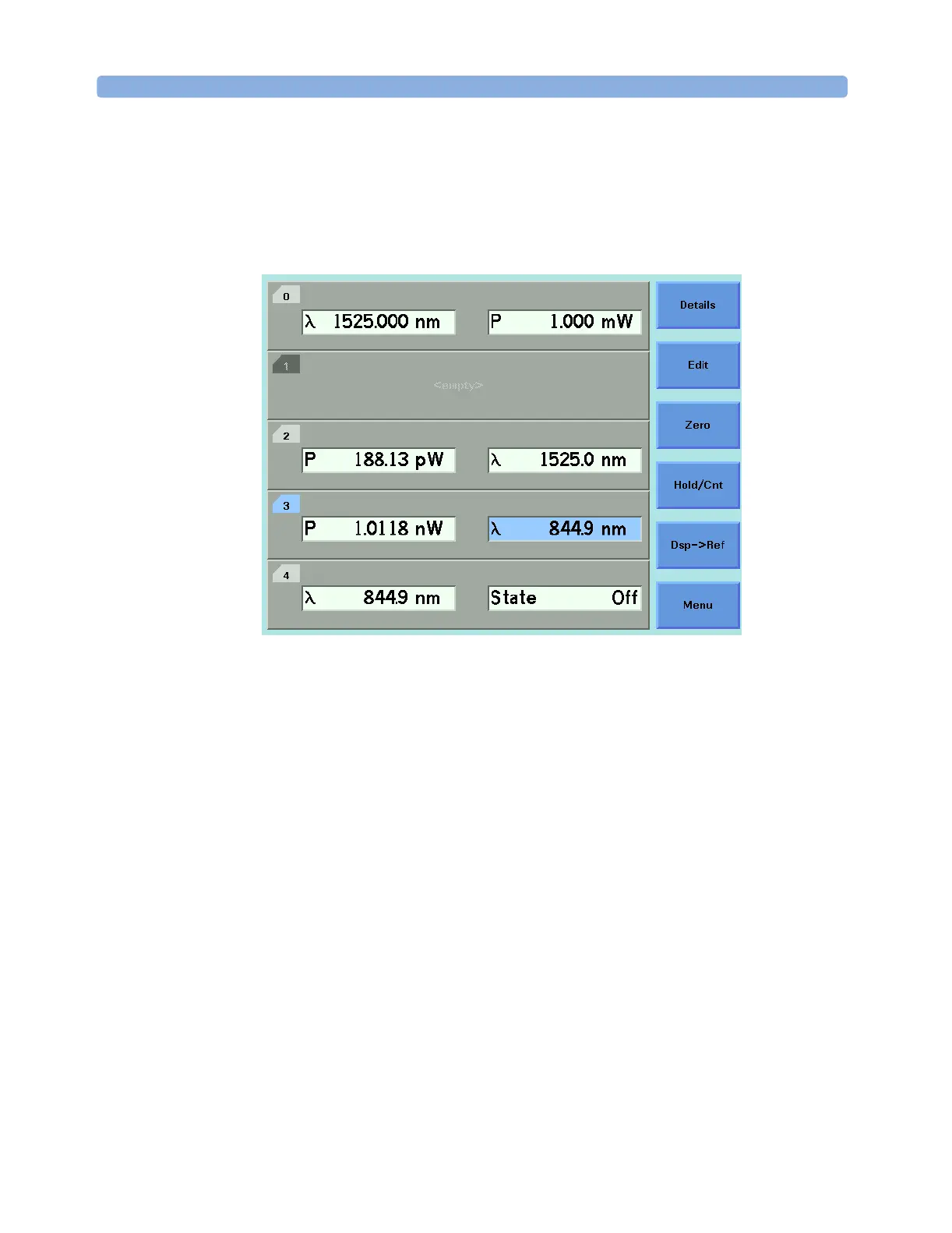

Figure 9 shows the overview screen for the Agilent 8164A/B

Lightwave Measurement System, this screen is shown immediately

after start-up. It shows the most important parameters of all installed

modules

Figure 9 The Agilent 8164A/B’s Overview Screen
