The PACT Application Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 253
20 Press [New Ref]. A box similar to the box in Figure 164 appears
prompting you to connect a fiber to the first Power Meter channel.
21 Connect the Tunable Laser module to the Power Meter channel
through all the system components, but excluding the Device Under
Test. Press [Next] to start the reference measurement.
The PACT Reference Measurement screen, as shown in Figure 165,
appears. A progress bar shows the proportion of the stability
application that has been completed. The wavelength, λ, shows you
the current wavelength of the Tunable Laser module.
22 There are two softkeys available from the PACT Reference
Measurement screen.
– Press [Graph] to view a graph of the Measurement results as the
results are measured. Press [Close] to return to the PACT
Reference Measurement screen. See “Working with Application
Graphs” on page 215 for information on zooming in and out.
– Press [Cancel] to return to the PACT Reference screen without
completing the reference measurement, all reference values that
were measured will be deleted.

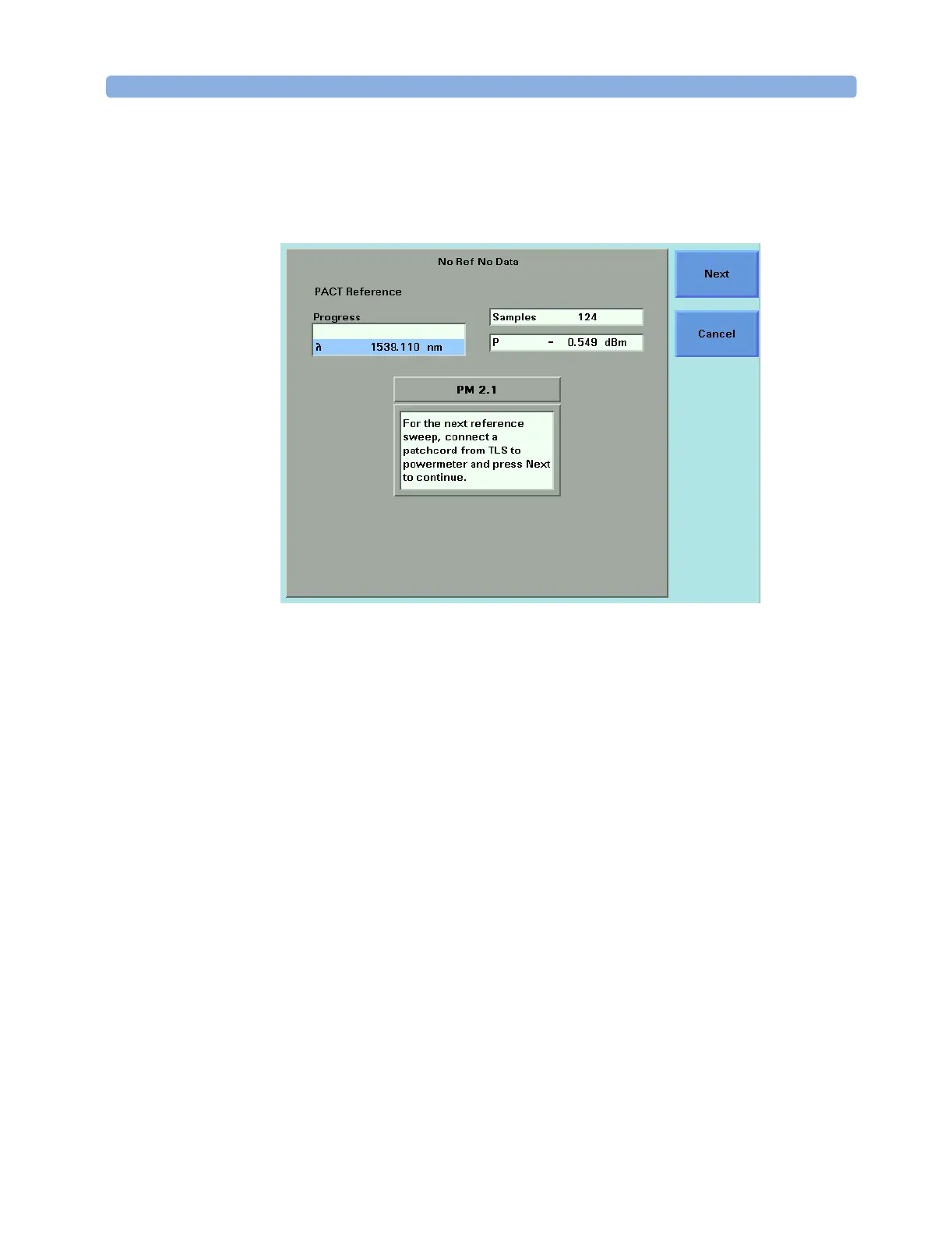

Figure 164 Connection Prompt Screen
To Next Page
