The PACT Application Applications
Agilent 8163A/B, 8164A/B, and 8166A/B User’s Guide, Fourth Edition 259
29 Press [Setup]. The Logging Analysis screen appears as shown in
Figure 150.
The sweep parameters are shown.
The following results of the PACT Measurement are shown for each
selected Power Meter channel:
– min. Loss, the minimum loss value for the particular Power Meter
channel for the sweep, and
– max. Loss, the maximum loss value for the particular Power
Meter channel for the sweep.

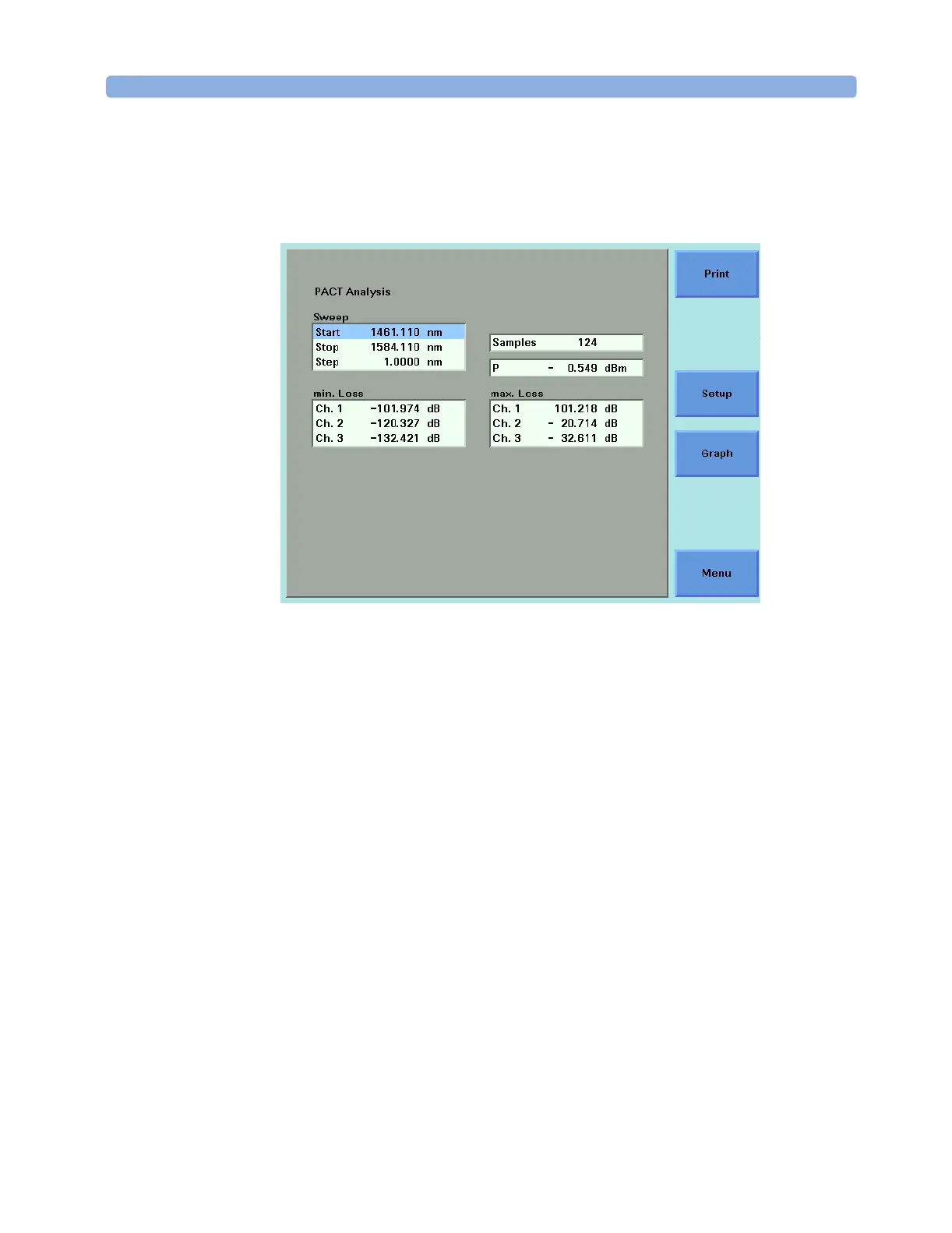

Figure 170 The PACT Analysis Screen
