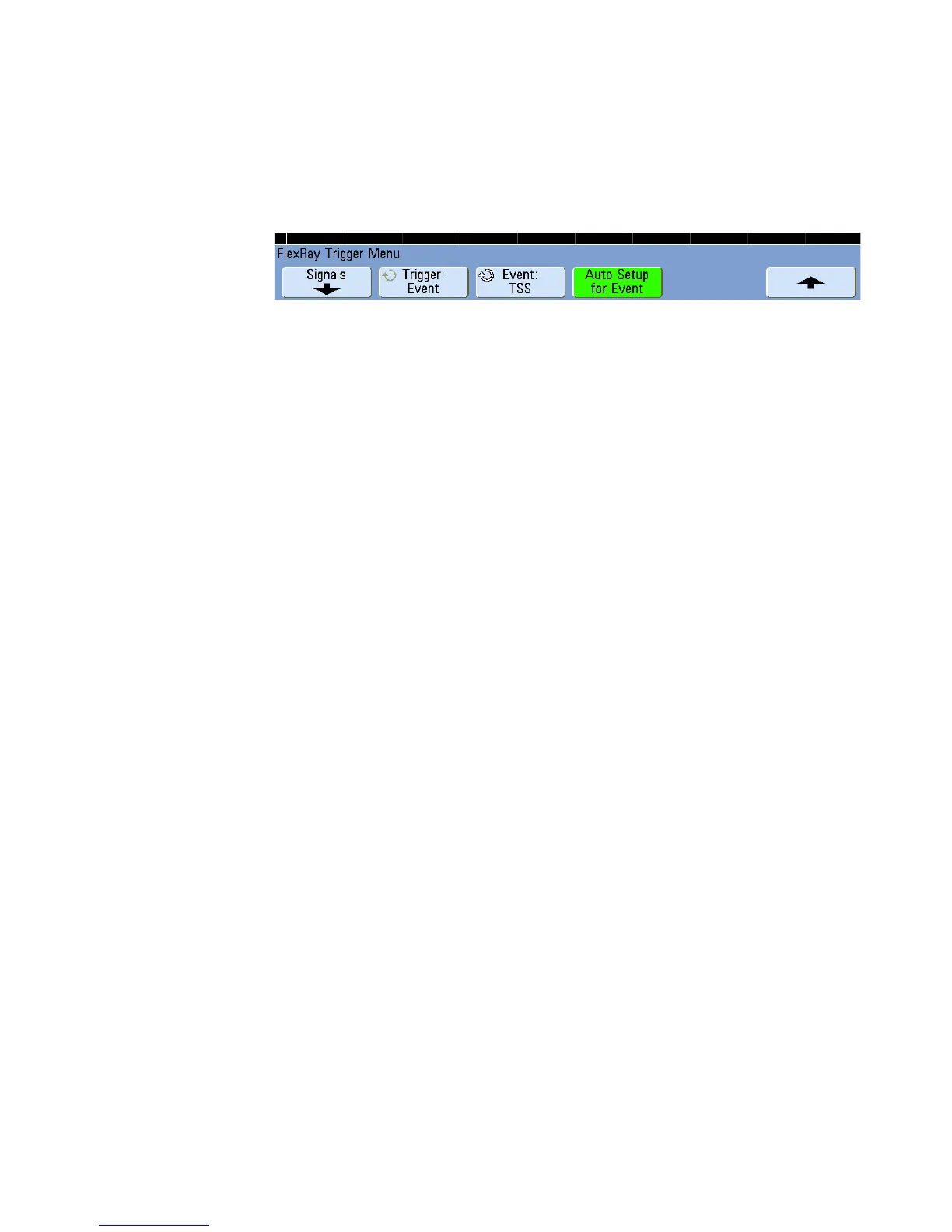

4 In the FlexRay Trigger Menu, press Trigger; then, select Event.
5 Press Event; then, select the event type:
• Wake-up
• TSS - Transmission Start Sequence
• BSS - ByteStart Sequence
• FES/DTS - Frame End or Dynamic Trailing Sequence
6 Press Auto Setup for Event.
This automatically configures oscilloscope settings (as shown on the display) for the
selected event trigger.
