2 Initial Setup
36 InfiniiVision Oscilloscopes User’s Guide
You can find these items at www.agilent.com
or at www.parts.agilent.com.
For information on more probes and accessories see “5989-6162EN Probes and
Accessories Selection Guide” and “5968-8153EN 5000 and 6000 Series Oscilloscope
Probes and Accessories Data Sheet,” available at www.agilent.com.
Tilt the oscilloscope up for easy viewing
The oscilloscope can be tilted up for easier viewing.
To tilt the 5000 Series oscilloscope up for easy viewing
The oscilloscope’s handle affects the tilt. The handle can be locked in one of three
positions:
• up, for carrying
• back, so the handle is out of the way
• down, so the oscilloscope can be tilted back for easy viewing when the oscilloscope is
on the floor and you are standing above it.

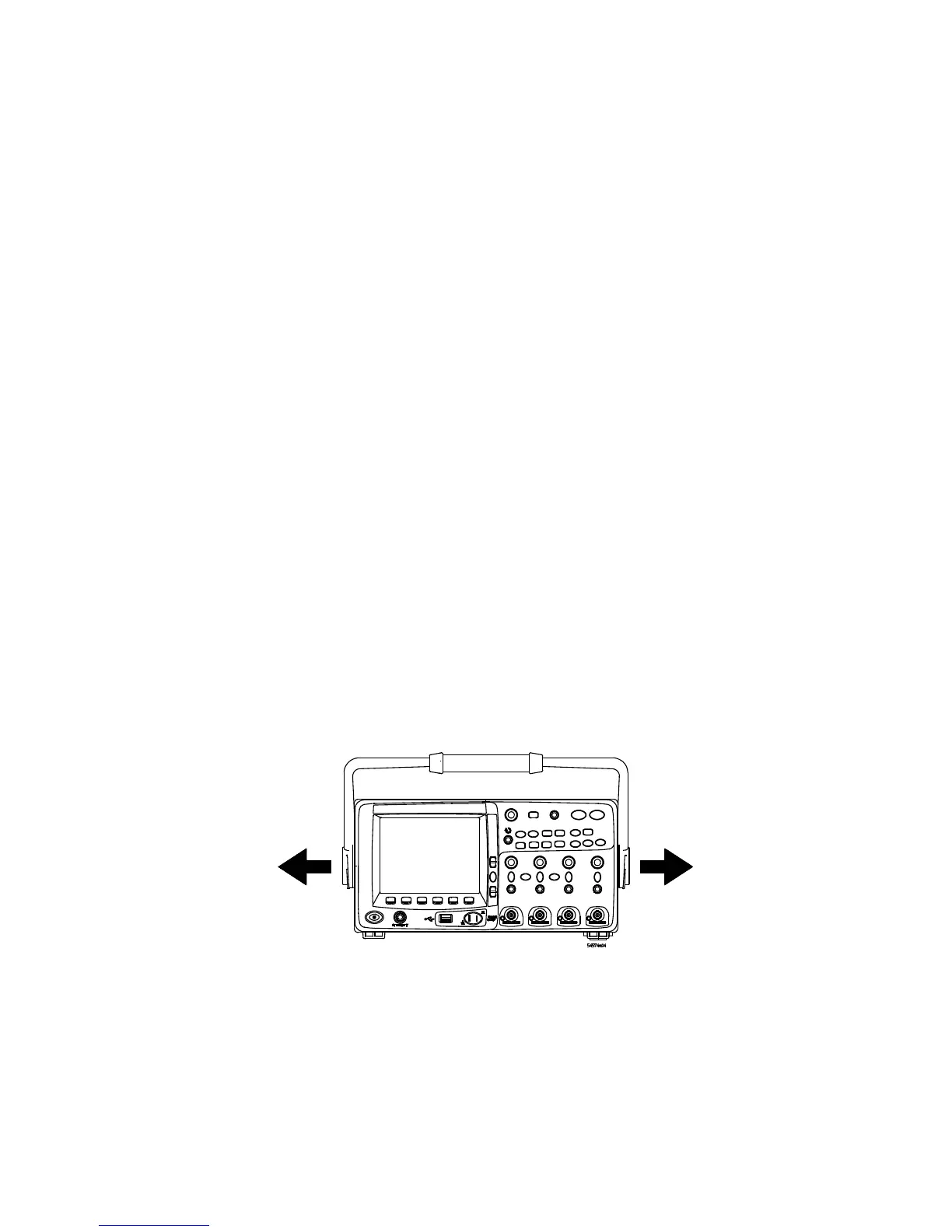

1 To rotate the handle, grasp the handle hubs on each side of the instrument and pull the
hubs out until they stop.
2 Without releasing the hubs, rotate the handle to the desired position. Then release the
hubs. Continue rotating the handle until it clicks into a set position.
