6 Measurements and Math Functions
194 InfiniiVision Oscilloscopes User’s Guide

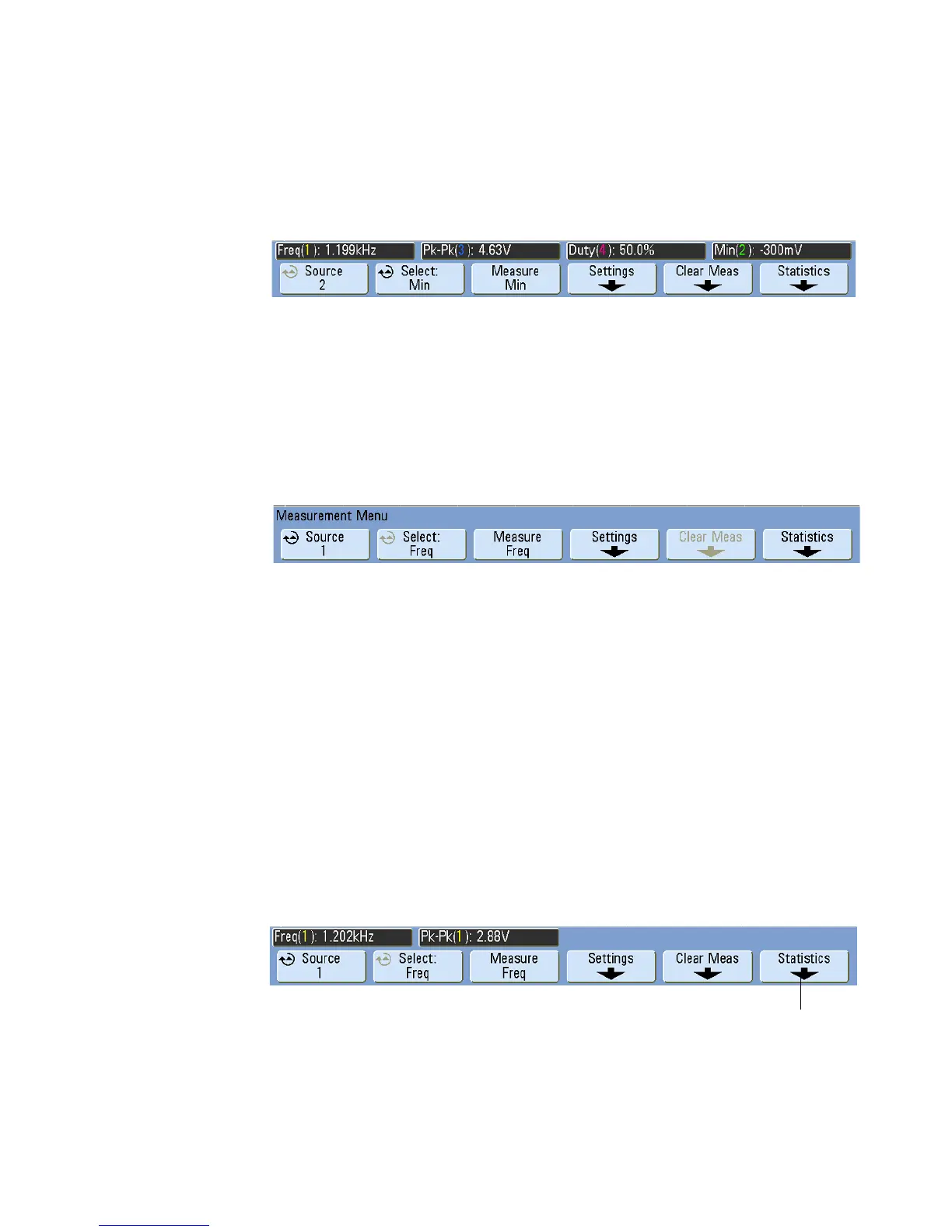

3 Press the Select softkey then rotate the Entry knob to select a measurement to be
made.
4 The Settings softkey will be available to make additional measurement settings on
some measurements.
5 Press the Measure softkey to make the measurement. (By default, measurement
statistics are displayed. See page 194.)
6 To turn off Quick Meas, press the [Quick Meas] key again. The key will no longer be
illuminated and the measurements will be erased from the display.
7 To stop making one or more measurements, press the Clear Meas softkey and choose
the measurement to clear, or press Clear All.
After all measurements have been cleared, when [Quick Meas] is pressed again, the
default measurements will be Frequency and Peak-Peak.
Measurements available only on analog channels
The following measurements can only be made on analog source channels: rise time, fall
time, X at max Y, Xat min Y, phase, delay, average, amplitude, base, maximum, minimum,
peak-to-peak, ratio, rms, std. deviation, and top.
Measurement Statistics
Press the [Quick Meas] key to enter the Measurement Menu. By default, statistics are
displayed, and frequency and voltage are measured on channel 1.
Select the measurements you desire for the channels you are using (see page 192).
From the Measurement Menu, press the Statistics softkey to enter the Statistics Menu.
