Agilent Technologies InfiniiVision 5000 Series User Manual

Measurements and Math Functions 6
InfiniiVision Oscilloscopes User’s Guide 193
Preshoot and Overshoot
• “Preshoot” on page 211.
• “Overshoot” on page 212.
Making Automatic Measurements
[Quick Meas] makes automatic measurements on a channel or any running math
function. Some measurements can only be made on analog source channels (see list on
page 194). The results of the last four selected measurements are displayed above the
softkeys, or in the display area when certain menus are selected. [Quick Meas] also
makes measurements on stopped waveforms when you are panning and zooming.
Cursors are turned on to show the portion of the waveform being measured for the most
recently selected measurement (right-most on the measurement line).
1 Press the [Quick Meas] key to display the Measurement Menu.
2 Press the Source softkey to select the channel or running math function to be
measured.
Only channels or math functions that are displayed are available for measurements. If
you choose an invalid source channel for a measurement, the measurement will
default to the nearest in the list that makes the source valid.
If a portion of the waveform required for a measurement is not displayed or does not
display enough resolution to make the measurement, the result will display “No
Edges”, “Clipped”, “Low Signal”, “< value”, or “> value”, or a similar message to
indicate that the measurement may not be reliable.

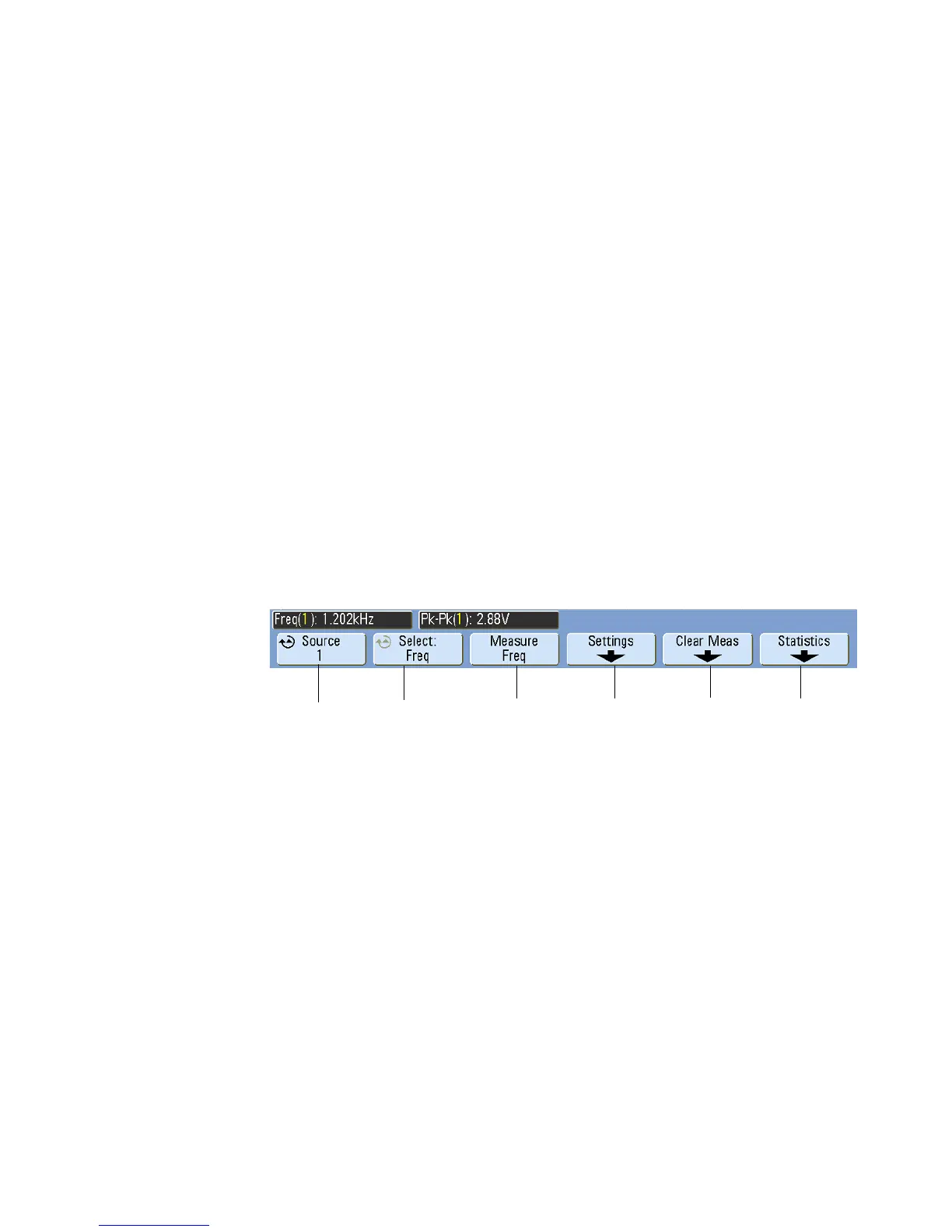

Source
select
Select a
measurement
Press to make
measurement
Additional
settings
Clear one or
more
measurements
Measurement
statistics
