4 Triggering
112 InfiniiVision Oscilloscopes User’s Guide
Glitch or Narrow Pulse Capture
A glitch is a rapid change in the waveform that is usually narrow as compared to the
waveform. Peak detect mode can be used to more easily view glitches or narrow pulses.
In peak detect mode, narrow glitches and sharp edges are displayed more brightly than
when in Normal acquire mode, making them easier to see.
To characterize the glitch, use the cursors or the automatic measurement capabilities of
the oscilloscope.

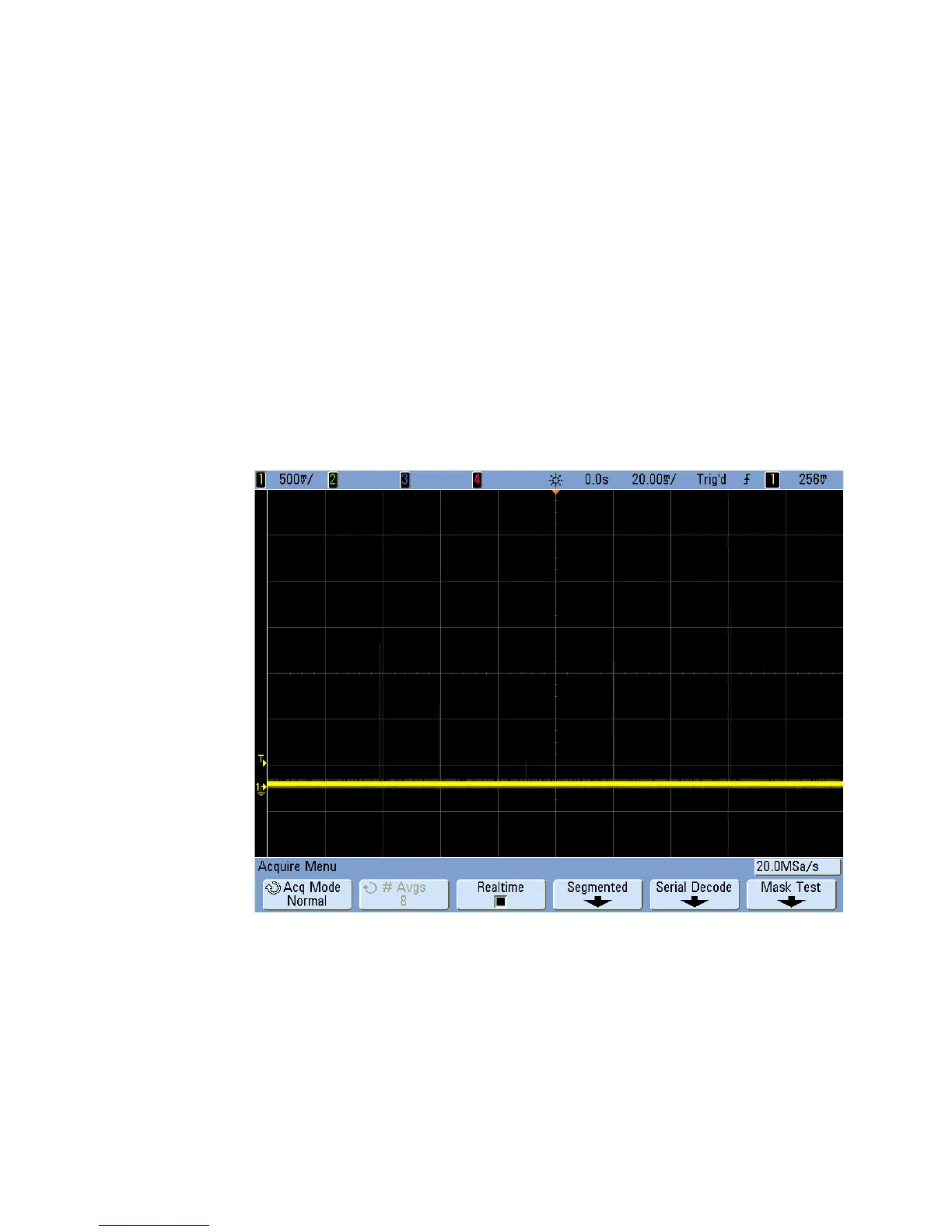

15
NS NARROW PULSE, 20 MS/DIV, NORMAL MODE
