Serial Decode/Lister 10
InfiniiVision Oscilloscopes User’s Guide 317
5 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode data.
You can use the Zoom horizontal sweep mode for easier navigation of the decoded data.

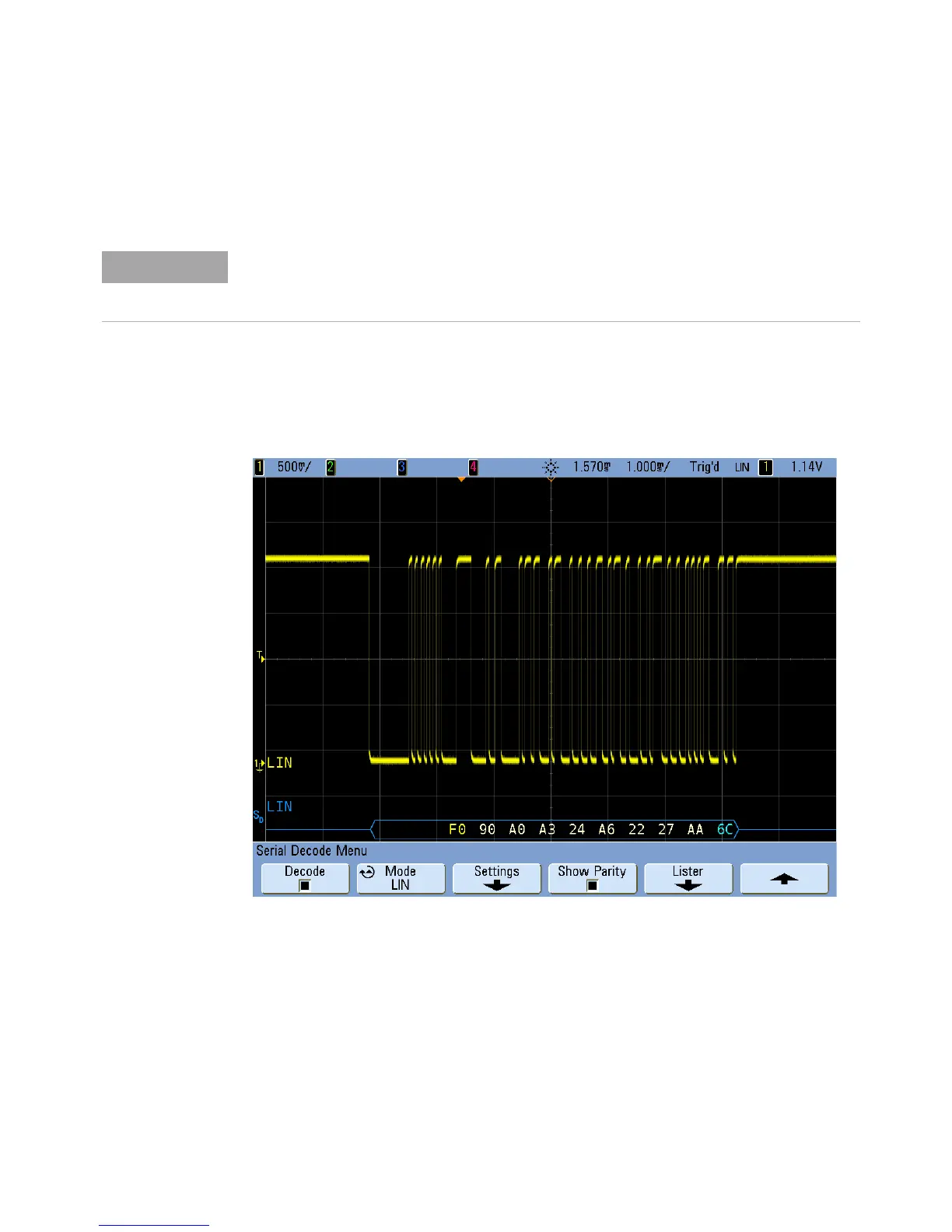

Interpreting LIN Decode
• Angled waveforms show an active bus (inside a packet/frame).
• Mid-level blue lines show an idle bus (LIN 1.3 only).
• The hexadecimal ID and parity bits (if enabled) appear in yellow. If a parity error is
detected the hexadecimal ID and parity bits (if enabled) appear in red.
• Decoded hexadecimal data values appear in white.
If the setup does not produce a stable trigger, the LIN signal may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode
softkey to set the trigger mode from Auto to Normal.
