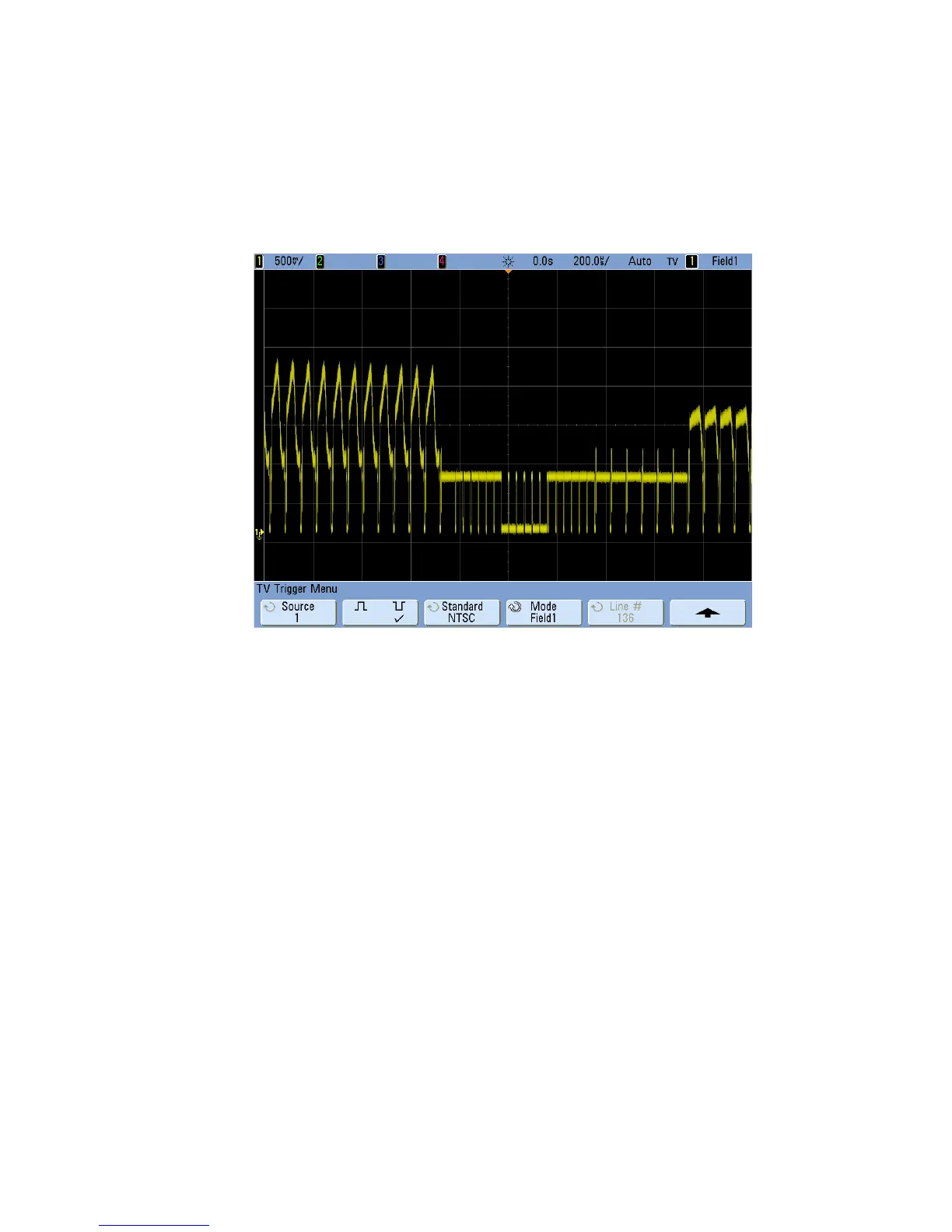

3 Press the Mode softkey and select Field1 or Field2.
T
RIGGERING ON FIELD 1
To trigger on all fields of the video signal
To quickly and easily view transitions between fields, or to find the amplitude differences
between the fields, use the All Fields trigger mode.
1 Press the Trigger [More] key, then press the TV softkey.
2 Press the Settings softkey, then press the Standard softkey to select the appropriate
TV standard.
3 Press the Mode softkey and select All Fields.
