• Red dots in the decode line indicate that there is data that is not being displayed.
Scroll or expand the horizontal scale to view the information.
• Aliased bus values (undersampled or indeterminate) are drawn in red.
• Unknown bus values (undefined or error conditions) are drawn in red.

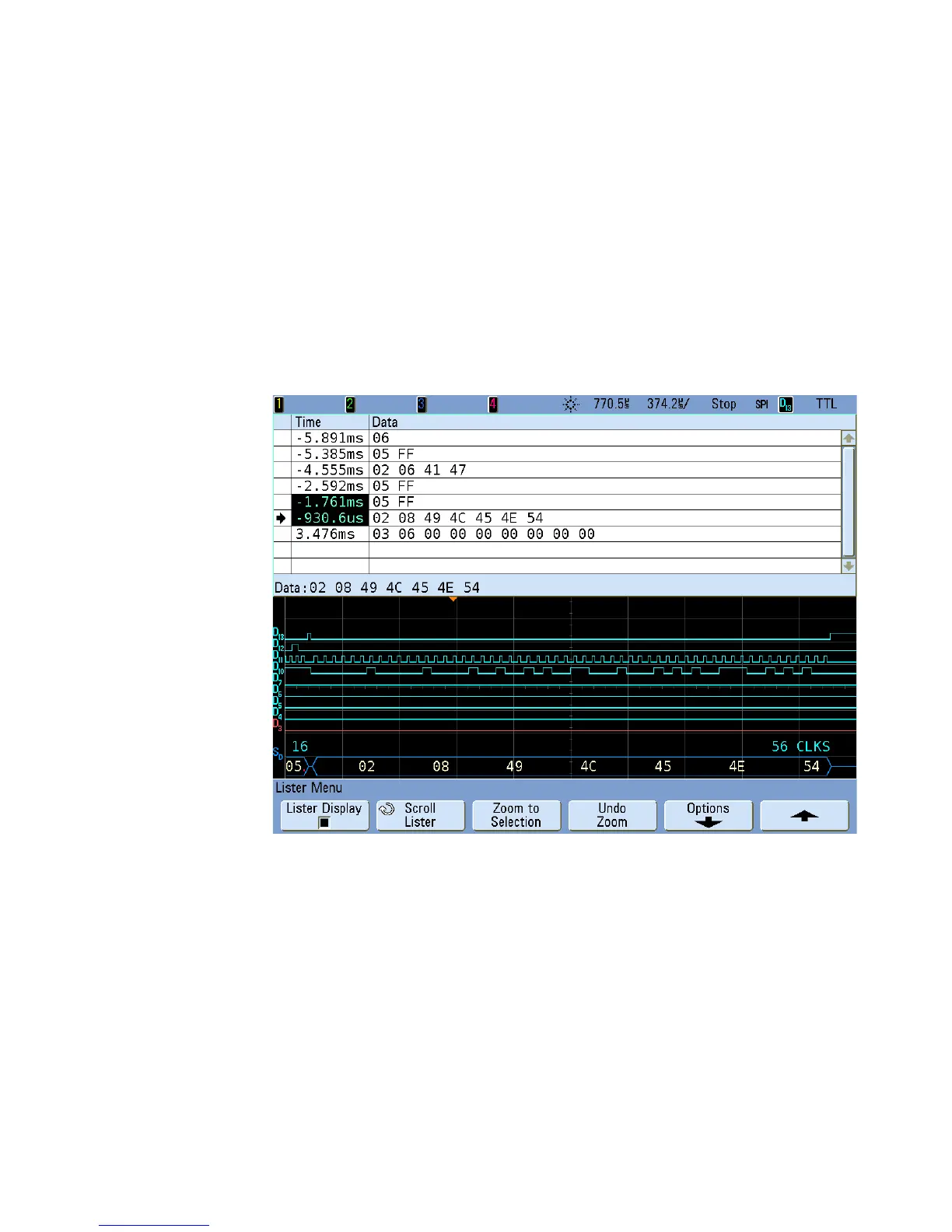

Interpreting SPI Lister Data
In addition to the standard Time column, the SPI Lister contains these columns:
• Data — data bytes (MISO or MOSI).
