12 Controls and Connectors
354 InfiniiVision Oscilloscopes User’s Guide

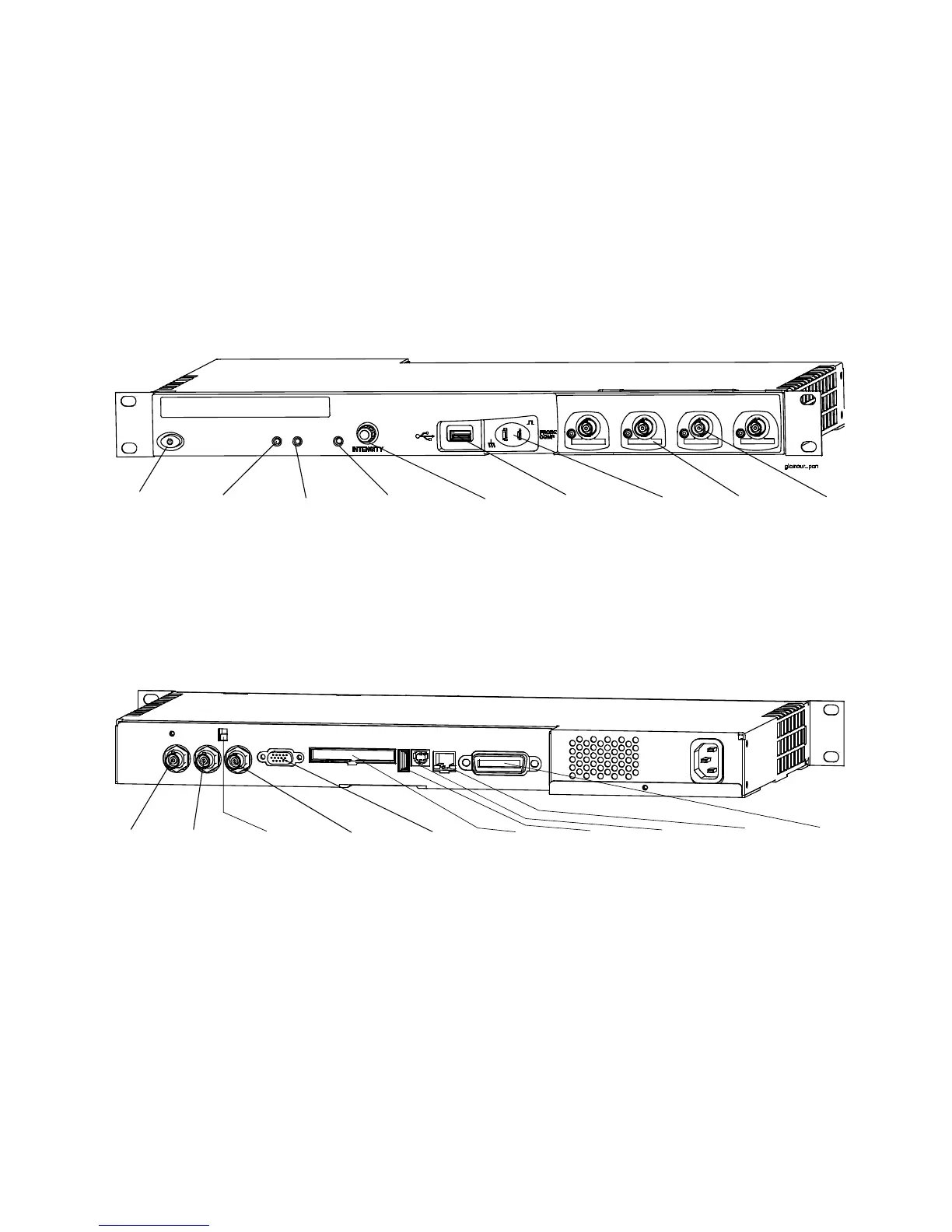

6000L Series Front and Rear Panel
Click the text for the item’s description and operation information. Printed manual: refer
to numbered descriptions on the following pages.
F
RONT PANEL
REAR PANEL
12.
Intensity
Control
1. Power
Switch
25.
Power
Indicator
26. LAN
Status
Indicator
2. USB
Host Port
3. Probe
Compen-
sation
Terminals
27. Reset
Switch
5.
AutoProbe
Interface
4. Channel
Input BNC
Connector
3. 10 MHz
Reference
Connector
5. Digital
Input
Connector
1.
External
Trigger
Input
2.
Trigger
Output
4.
Calibration
Protect
Switch
7. USB
Host Port
8. USB
Device
Port
6. XGA
Video
Output
9. LAN
Port
12. GPIB
Connector
