10 Serial Decode/Lister
314 InfiniiVision Oscilloscopes User’s Guide
LIN Serial Decode
1 Select the LIN serial decode mode:
a Press the [Acquire] key.
b Press the Serial Decode softkey.
c In the Serial Decode Menu, press the Mode softkey.
d Use the Entry knob (or repeatedly press and release the Mode softkey) to select the
LIN serial decode mode.
2 Choose whether to include the parity bits in the identifier field.
a If you want to mask the upper two parity bits, ensure that the box under the Show
Parity softkey is not selected.
b If you want to include the parity bits in the identifier field, ensure that the box under
the Show Parity softkey is selected.
For LIN triggering setup see page 128.

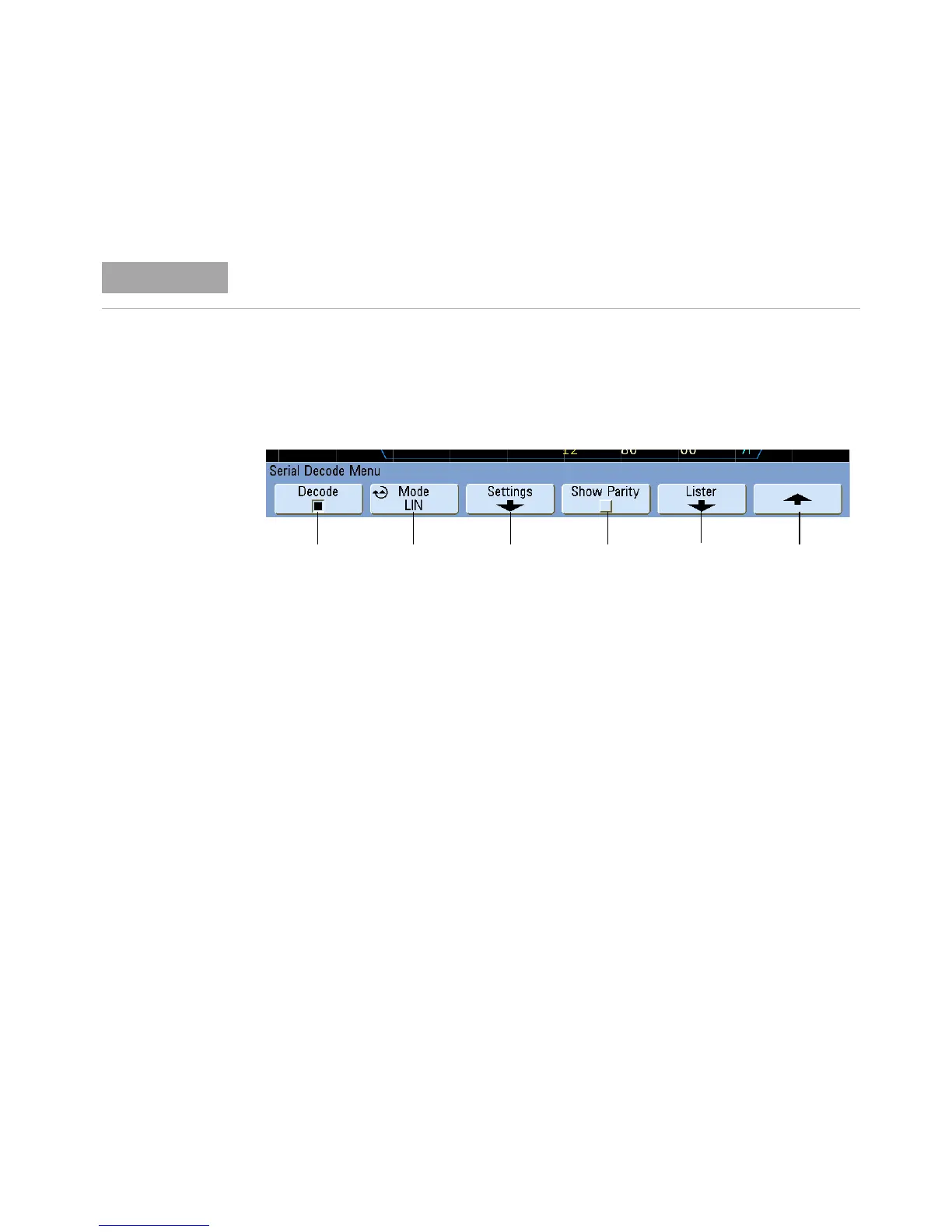

Display
decode
Decode
mode
Signal
setup menu
Return to
previous menu
Show
parity bits
Display
decode in
Lister
