Serial Decode/Lister 10
InfiniiVision Oscilloscopes User’s Guide 297
The value of the trigger level or digital threshold is displayed in the upper-right corner
of the display.
6 Repeatedly press and release the Baud softkey to set the CAN signal baud rate to
match your CAN bus signal.
The CAN baud rate can be set to:
The default baud rate is 1 Mb/s
If the desired baud rate is not shown in the table, select User Defined. You can set the
CAN baud rate from 10.0 kb/s to 1.000 Mb/s in increments of 100 b/s. Press the User
Baud softkey and rotate the Entry knob to make your selection.

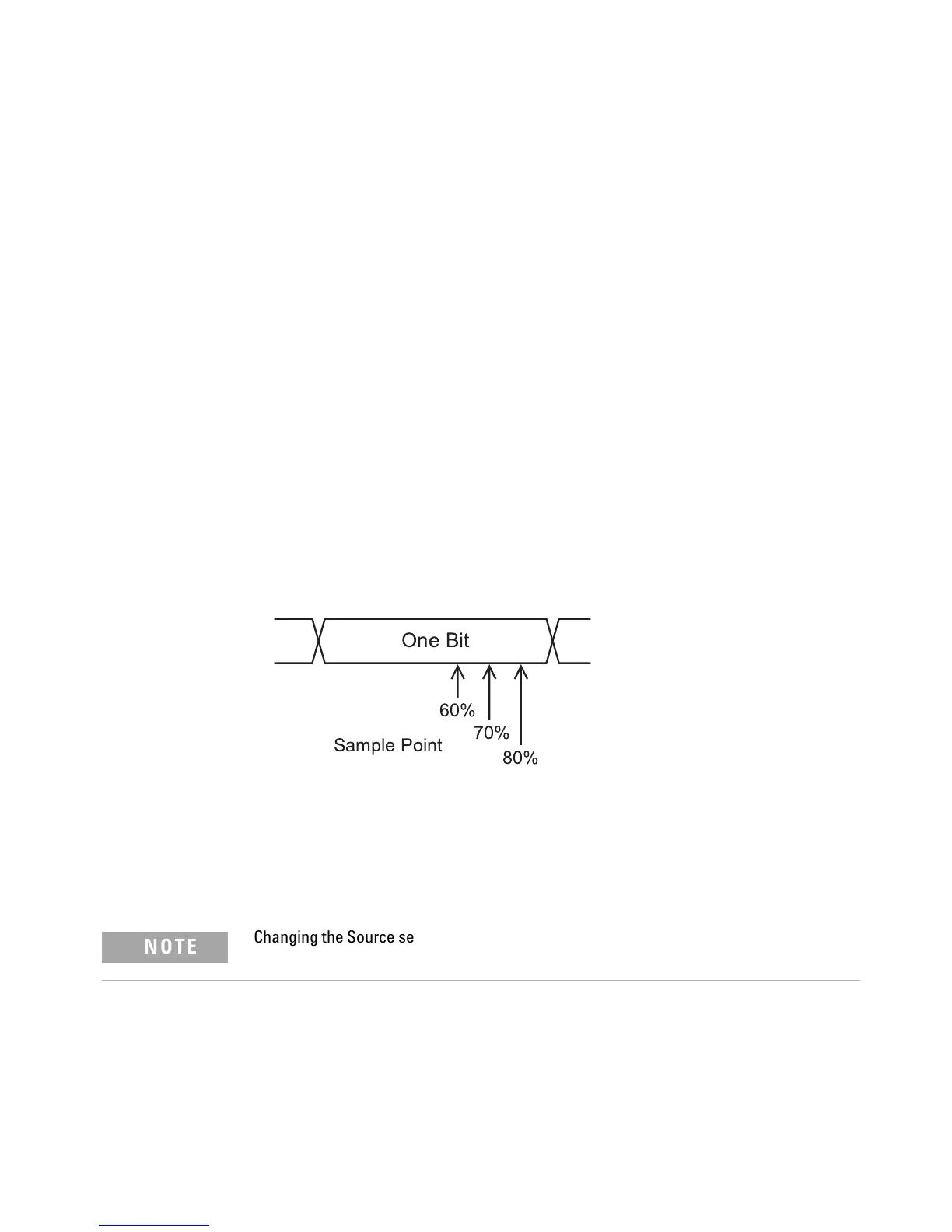

7 Repeatedly press and release the Smpl Pt softkey to select the point between phase
segments 1 and 2 where the state of the bus is measured. This controls the point
within the bit’s time where the bit value is captured.
8 Set the trigger level.
• For analog channels, turn the Trigger Level knob.
• For digital channels, press the [D15-D0] key and the Thresholds softkey to access
the threshold level setting softkeys.
9 Return to the previous menu by pressing the up-arrow softkey.
10 kb/s 50 kb/s 100 kb/s 500 kb/s
20 kb/s 62.5 kb/s 125 kb/s 800 kb/s
33.3 kb/s 83.3 kb/s 250 kb/s 1 Mb/s
User Defined
Changing the Source settings in the Serial Decode setup also changes them in the Trigger
setup.
