a Press the Settings softkey to access the I
2
C Signals Menu.
b Press the SCL softkey, and use the Entry knob to select the channel probing the
clock signal.
c Press the SDA softkey, and use the Entry knob to select the channel probing the
data signal.
3 Set the trigger levels for the SCL and SDA signals to the middle of the signals:
• If your I
2
C signals are connected to analog channels, press the SCL softkey and
rotate the Trigger Level knob, then press the SDA softkey and rotate the Trigger
Level knob.
• If your I
2
C signals are connected to digital channels, press the [D15-D0] key and
the Thresholds softkey to access the threshold level setting softkeys and set the
thresholds to the approximate middle of the signals.
4 If the decode line does not appear on the display, press the up-arrow softkey to return
to the previous menu, then press the Decode softkey to turn it on.
5 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode data.
You can use the Zoom horizontal sweep mode for easier navigation of the acquired data.

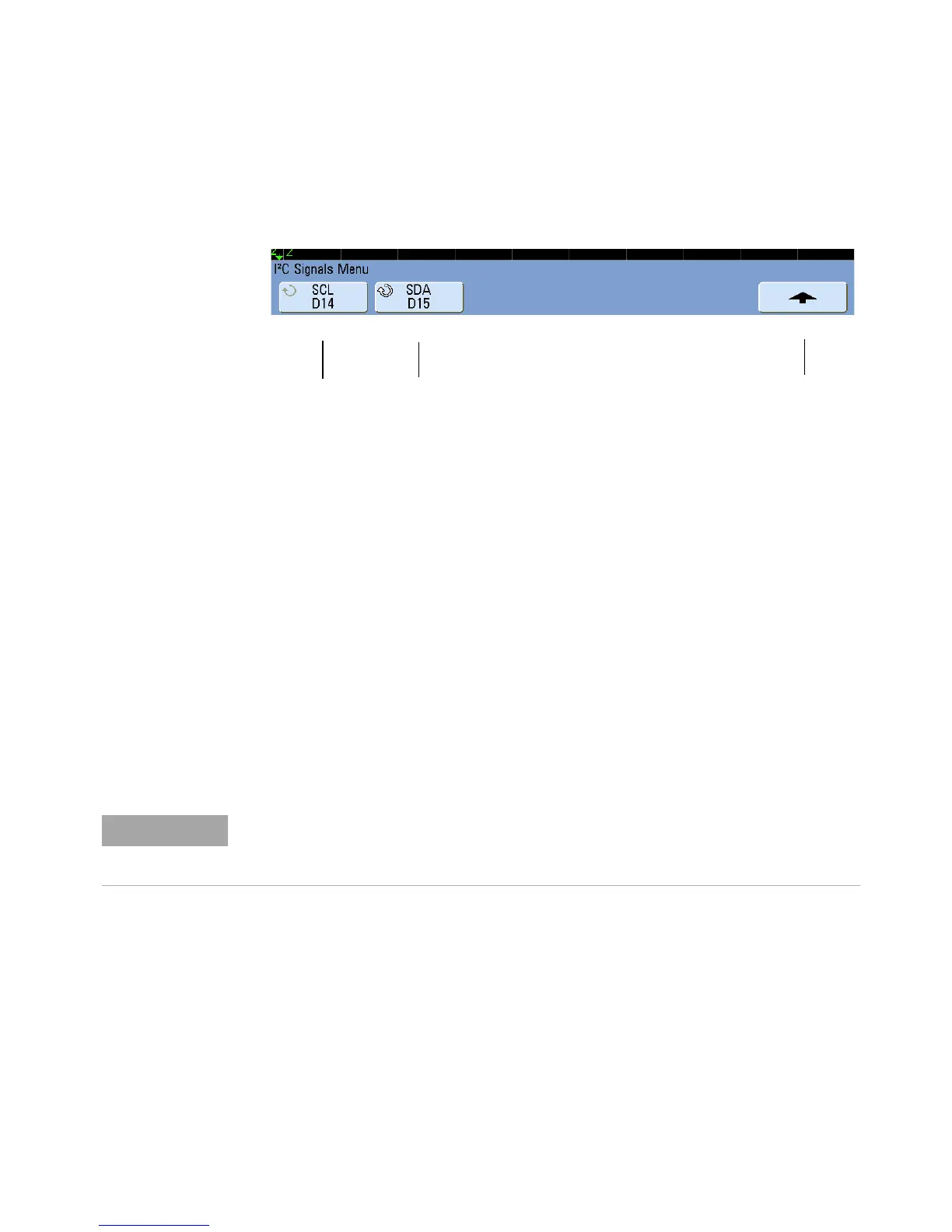

I
2
C clock
channel
I
2
C data
channel
Return to
previous menu
NOTE
If the setup does not produce a stable trigger, the I
2
C signal may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode
softkey to set the trigger mode from Auto to Normal.
