10 Serial Decode/Lister
330 InfiniiVision Oscilloscopes User’s Guide
2 Specify the UART/RS232 signals:
a Press the Settings softkey to access the UART/RS232 decode settings menu.
NOTE
Changing UART/RS232 signals in the Serial Decode setup also changes them in the
Trigger setup.

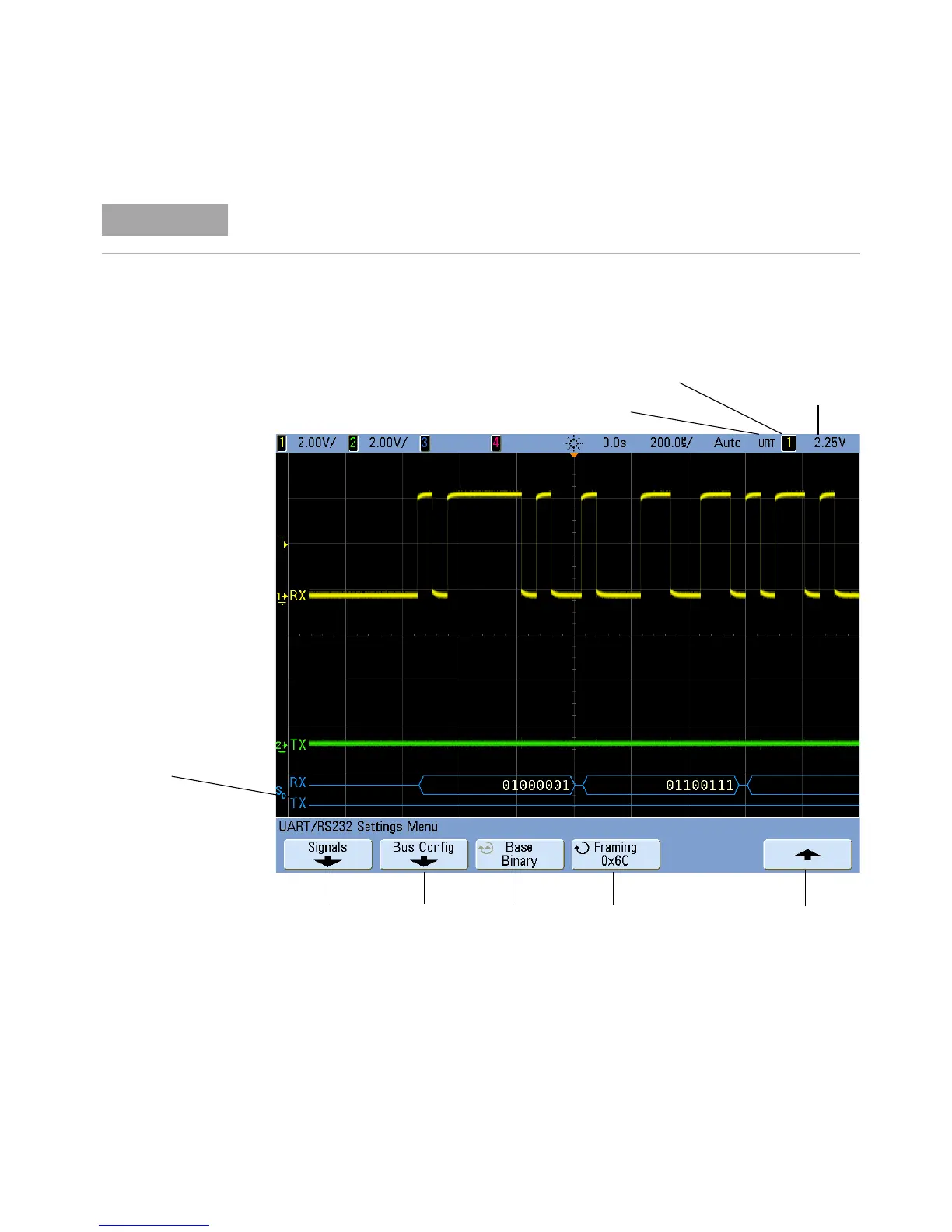

Define
signal
channels
Define bus
Display
base
Trigger level
or threshold
Currently selected channel
UART/RS232 trigger
Return to
previous menu
Framing
value
Decoded
data
