3.10.14 — MSS-1c cross-connections

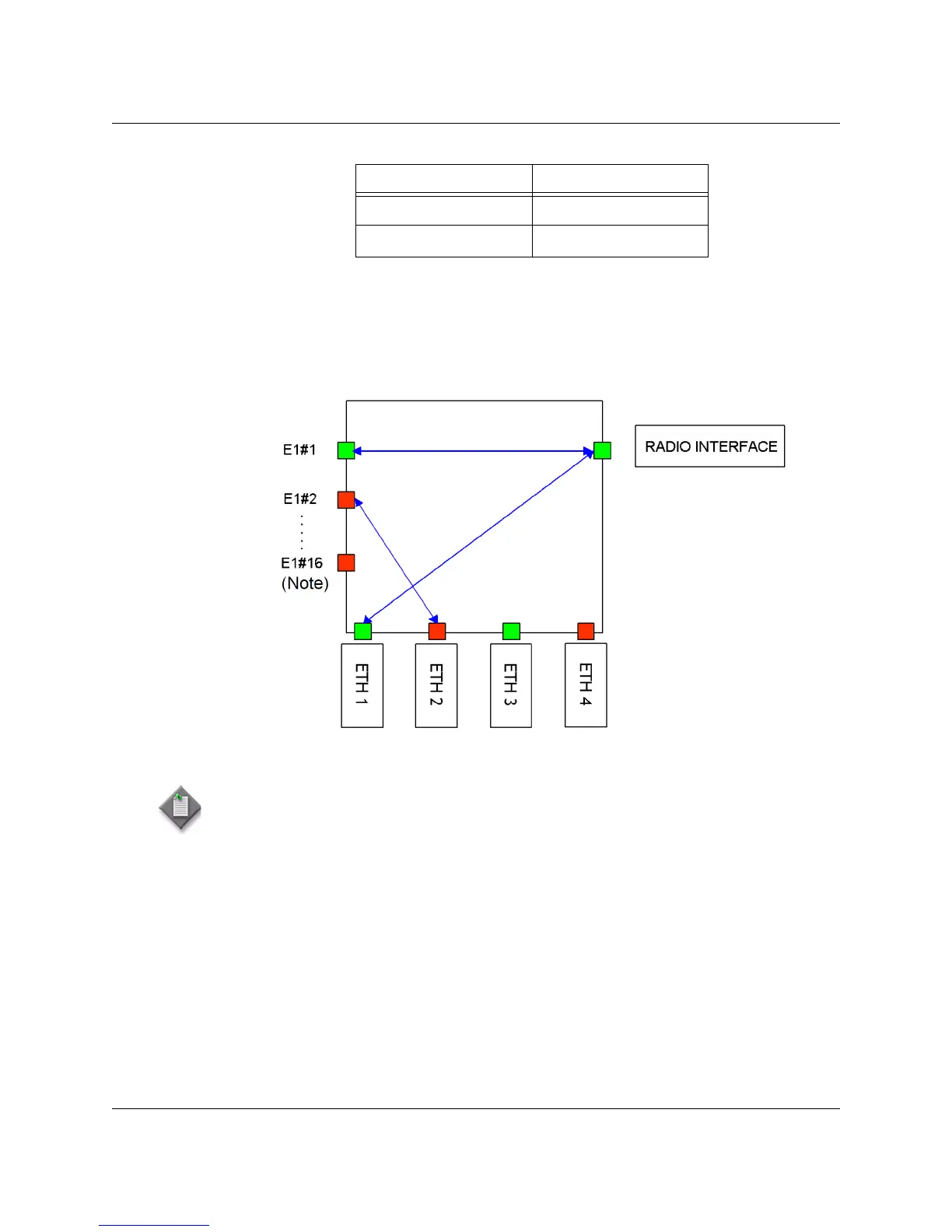

Figure 3.75 — Cross-connection
The cross-connections are realized with a Layer-2 Ethernet Switch inside the MSS-1c.
The decision made by the switch to forward the received packet is based on the destination
MAC address.
3.10.14.1 — E1/T1 cross-connection
Each E1 or T1 can be cross connected independently.
Q2 2
Q1 1
Table 3.51 — Default weights
Queue Weight
Note: Max #10 or #16 depending on the MSS-1C variant.
