WebEML start
MPR-e and MSS-1c User Manual 3DB19901EFAA Edition 01 193

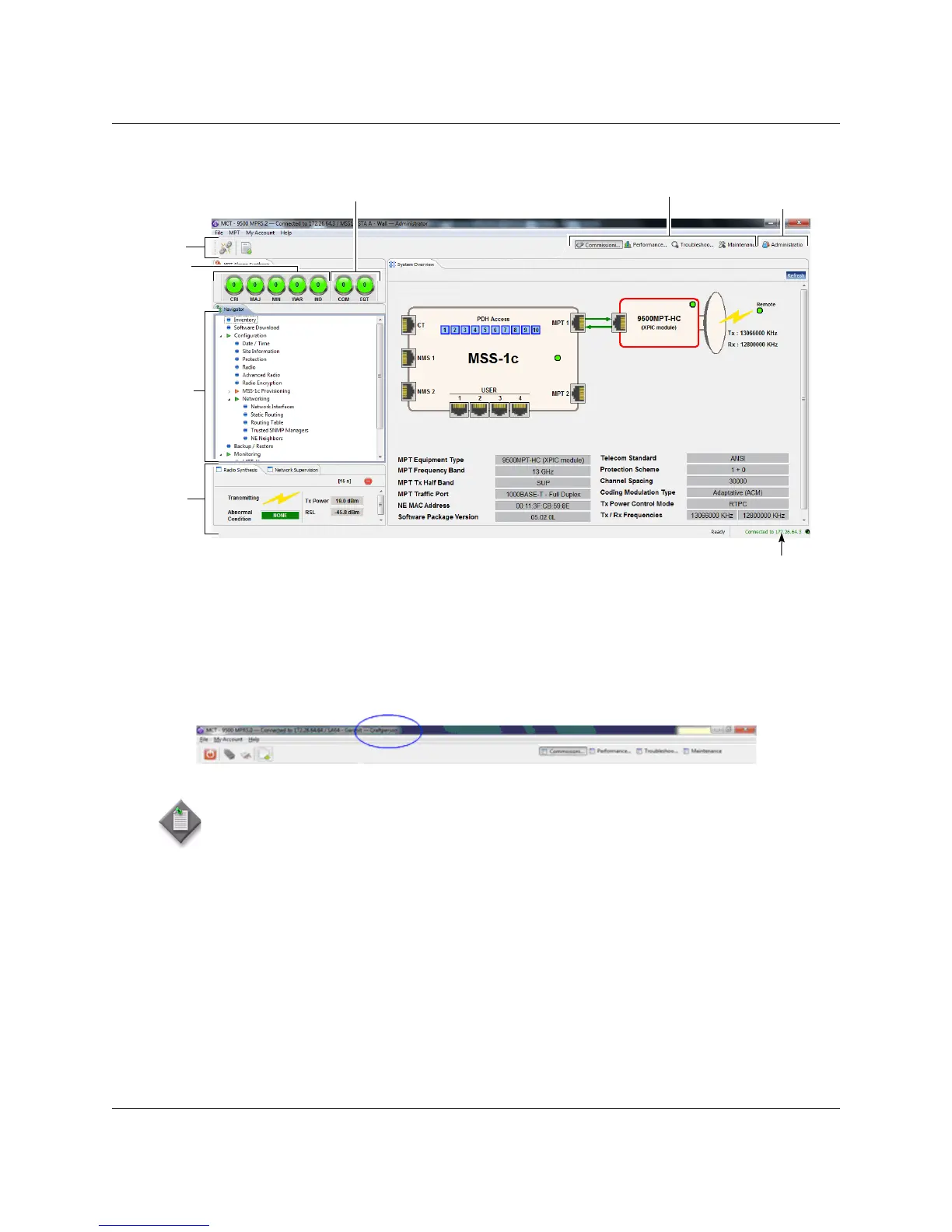

Figure 4.10 — Main view: system overview for MSS-1c
7. Figure 4.11 shows the banner that is displayed for the craft user. The Administration
tab and Administrative functions are not available for the craft user.
Figure 4.11 — Craft user banner
Tool bar
General
information
Navigator
IP address
of the
connected NE
23700
Alarm
Synthesis
Domain alarm
synthesis
Tab panels User Account
type
Note: If the WebEML is connected to an MPT-HC/HC-HQAM/XP/XP-HQAM/9558HC with the
XPIC + RPS external module installed (but with no XPIC feature configured), the screen in
Figure 4.12 will appear.
