Alcatel-Lucent 9500 - Figure 4.117 - MPR-E NE Neighbors Tab

Navigator area
MPR-e and MSS-1c User Manual 3DB19901EFAA Edition 01 289

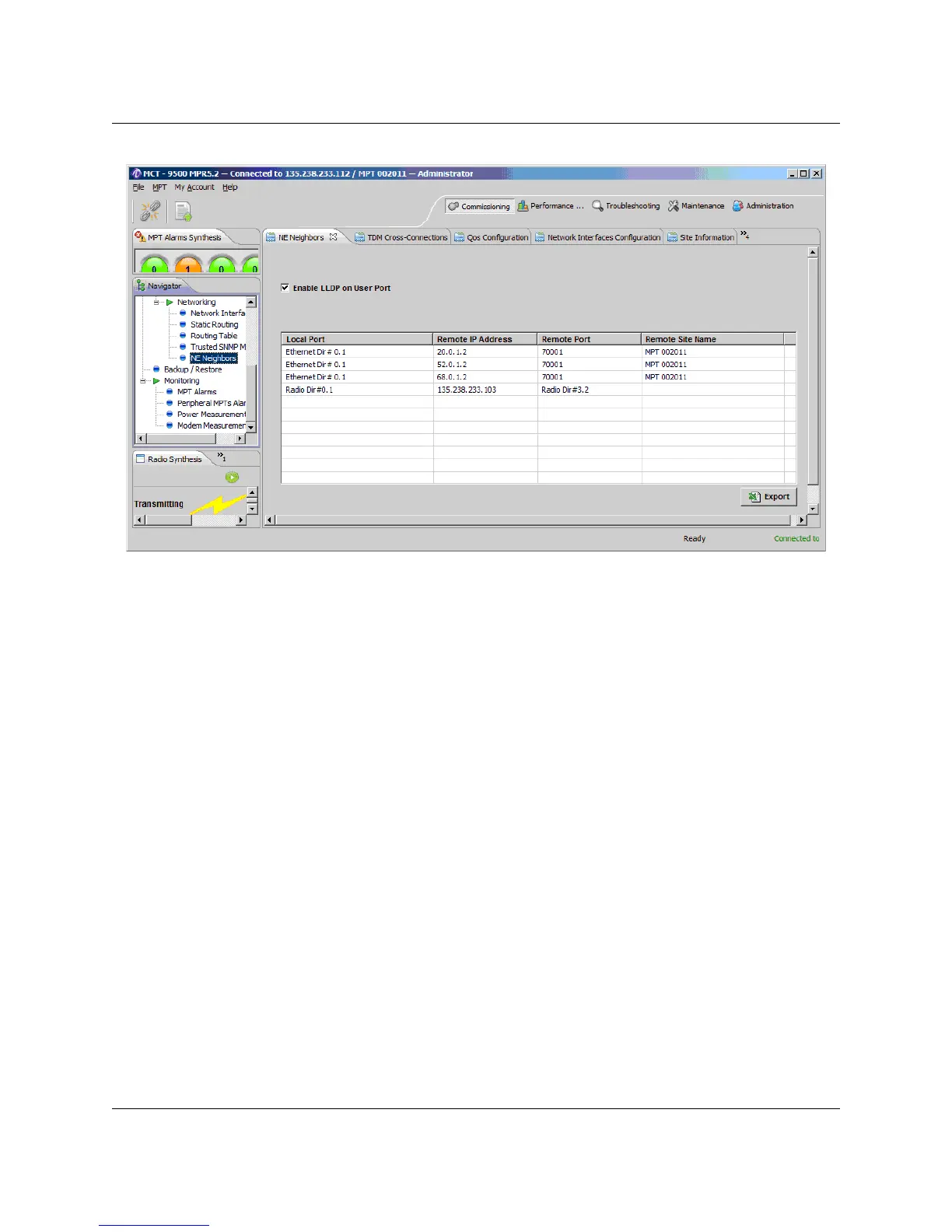

Figure 4.117 — MPR-e NE Neighbors tab
Click on the Export button to export the NE Neighbors information to a .csv file.
4.9.1.4.14 — NE Neighbors for MSS-1c
This view contains a table which automatically displays the MPT's radio neighbor's
information, remote IP and remote port only; see Figure 4.118. There is no site name. The
site Name field is only used on MPR-e for LLDP.
The radio neighbor is unique. It is discovered through an Alcatel-Lucent proprietary radio
discovery protocol. In case of radio failure, the table shows the last known neighbor until a
new one is discovered.
