Navigator area
292 MPR-e and MSS-1c User Manual 3DB19901EFAA Edition 01

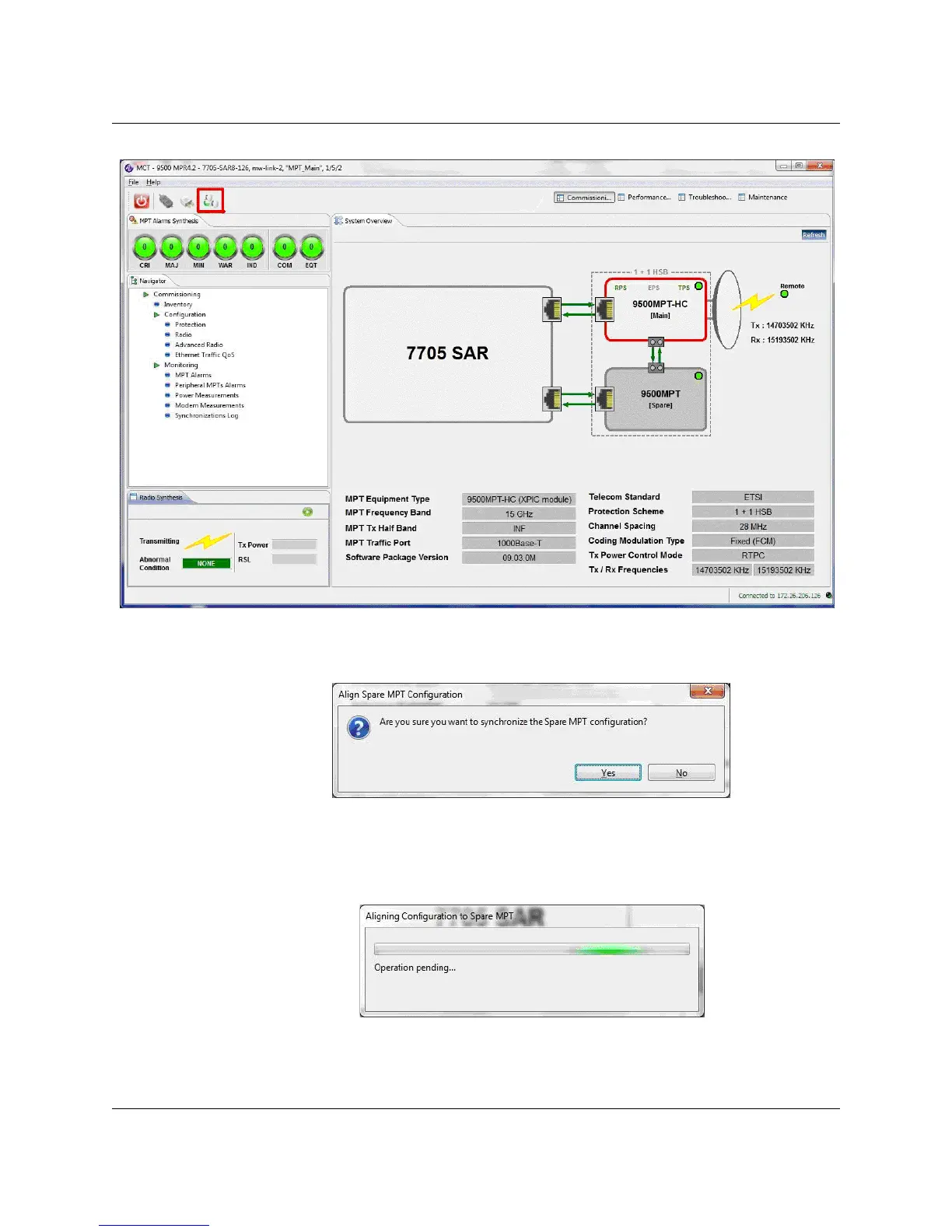

Figure 4.119 — MCT connected to main MPT
The Align Spare MPT Configuration dialog box opens.
Figure 4.120 — Align Spare MPT Configuration dialog box
• Click on the Yes button. The dialog box shows the status of the operation.
Figure 4.121 — Synchronization pending
