MPR-e and MSS-1c User Manual 3DB19901EFAA Edition 01 287

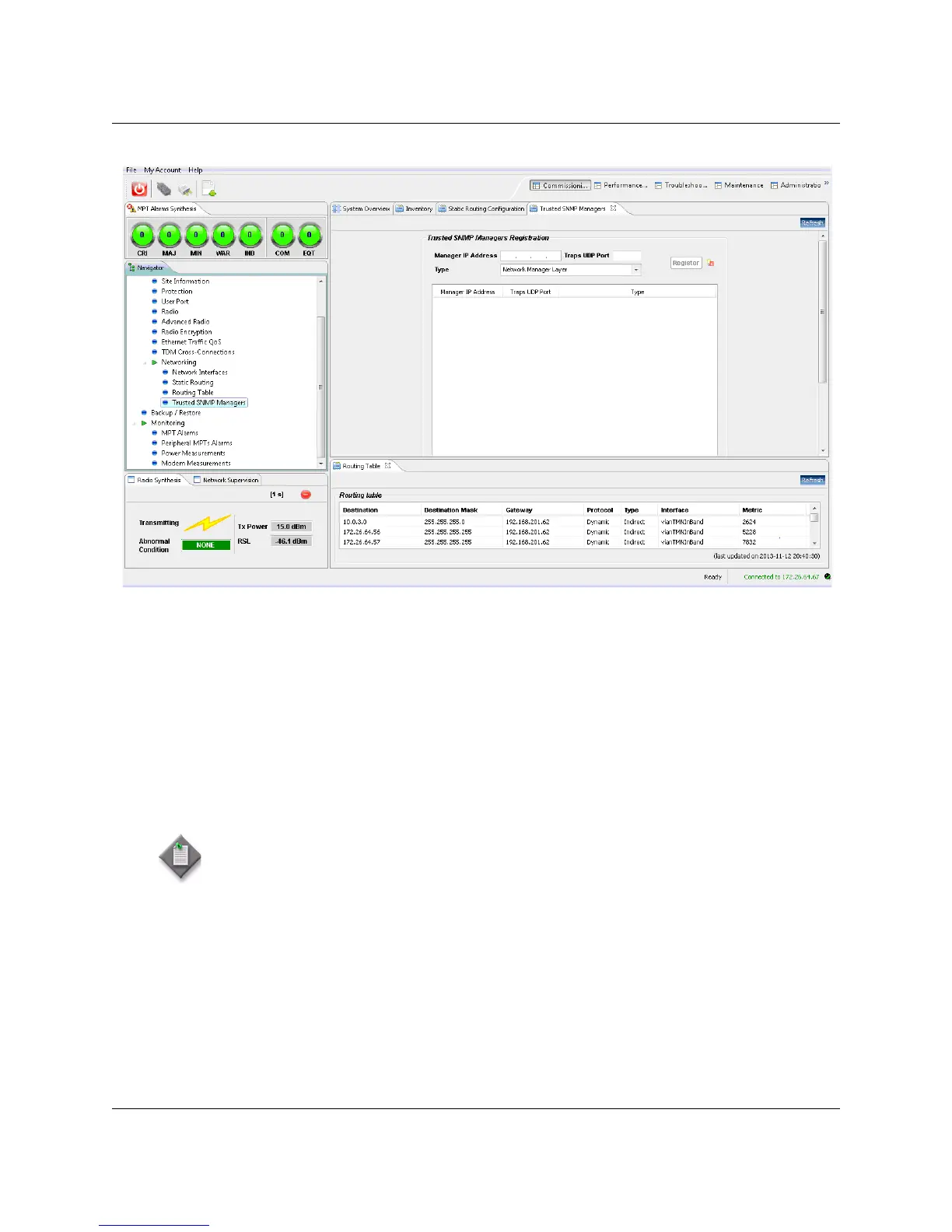

Figure 4.115 — Trusted SNMP Managers
To activate a Trusted Manager, enter the IP Address of the SNMP manager, the Traps
UDP Port and the Manager Type (Network Manager Layer or Equipment Manager
Layer), then click on the Register button.
Note about the Manager Type:
• “Network Manager Layer” must be used for 5620 SAM and other NMS system.
• “Equipment Manager Layer” must be used for 1350 OMS system type (where the
"alarm type" field is removed from the alarm traps) when automatic registration of
the manager is not possible
In Figure 4.116, one Manager has been created.
Note: The Traps UDP port corresponds to the port on which the Manager receives the
traps.
