Alcatel-Lucent 9500 - Figure 4.85 - NE Bridge Mode Selection

Navigator area
264 MPR-e and MSS-1c User Manual 3DB19901EFAA Edition 01
4.9.1.4.9.7 — Bridge provisioning (create a user virtual LAN)
In the NE bridge mode field select in the list:
•802.1D: default switch configuration, MAC learning based switching
•802.1Q: switch mode with Virtual Customer LAN. Switching is based on MAC and
C-VLAN
• 802.1ad (Q in Q): switch mode with Stacked VLANs. Switching is based on MAC
and S-VLAN
4.9.1.4.9.7.1 — A) Create a user virtual LAN
• Select the NE bridge mode in 802.1Q.
• Select a QoS mode: 802.1P, Diffserv or None

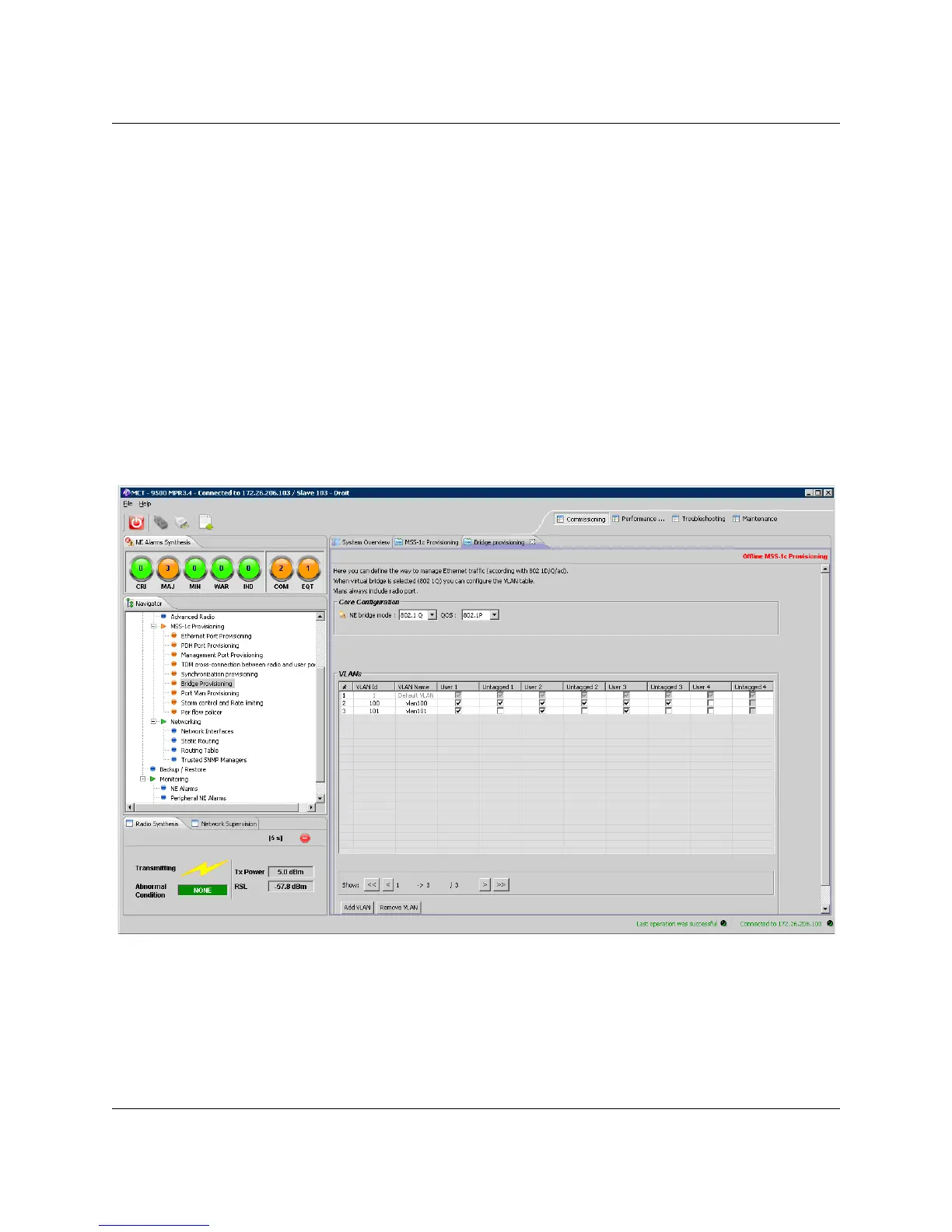

Figure 4.85 — NE bridge mode selection
To create a user virtual LAN:
• Push button Add VLAN and fill the fields.
• Push the button Add VLAN and fill the fields.
• In the column VLAN Id: Enter a valid VLAN Id (from 2 to 4080) and not used in
another VLAN or cross connection
