AT-SBx908 Gen2 Switch Installation Guide
103

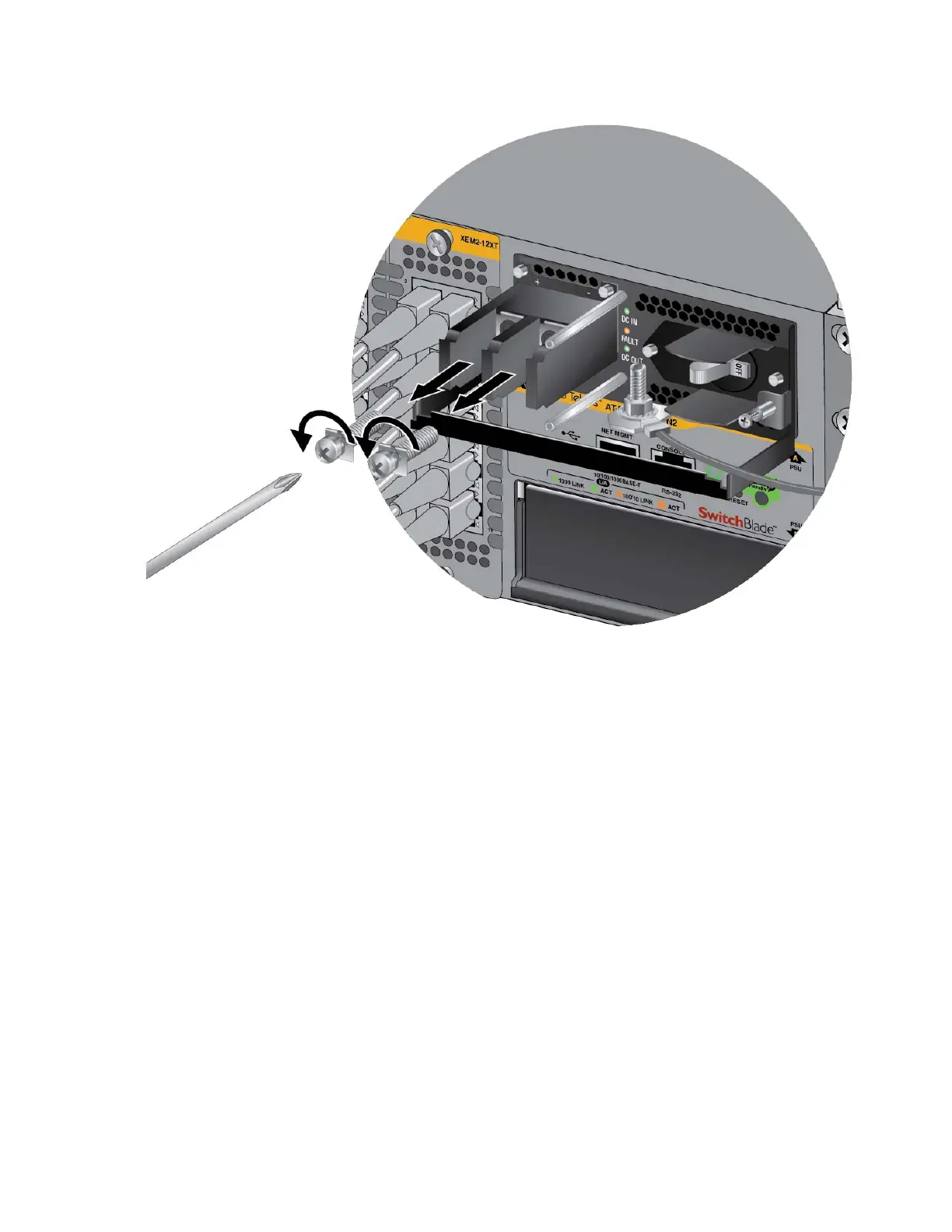

Figure 73. Removing the Terminal Screws
6. With a #3 Phillips-head screwdriver, connect the positive (+) power
lead wire to the positive terminal on the power supply, with one of the
terminal screws removed in the previous step. The positive terminal is
on the left. Refer to Figure 74 on page 104.
Allied Telesis recommends tightening the screw to 30 to 40 inch-lbs.
