AT-SBx908 Gen2 Switch Installation Guide
151

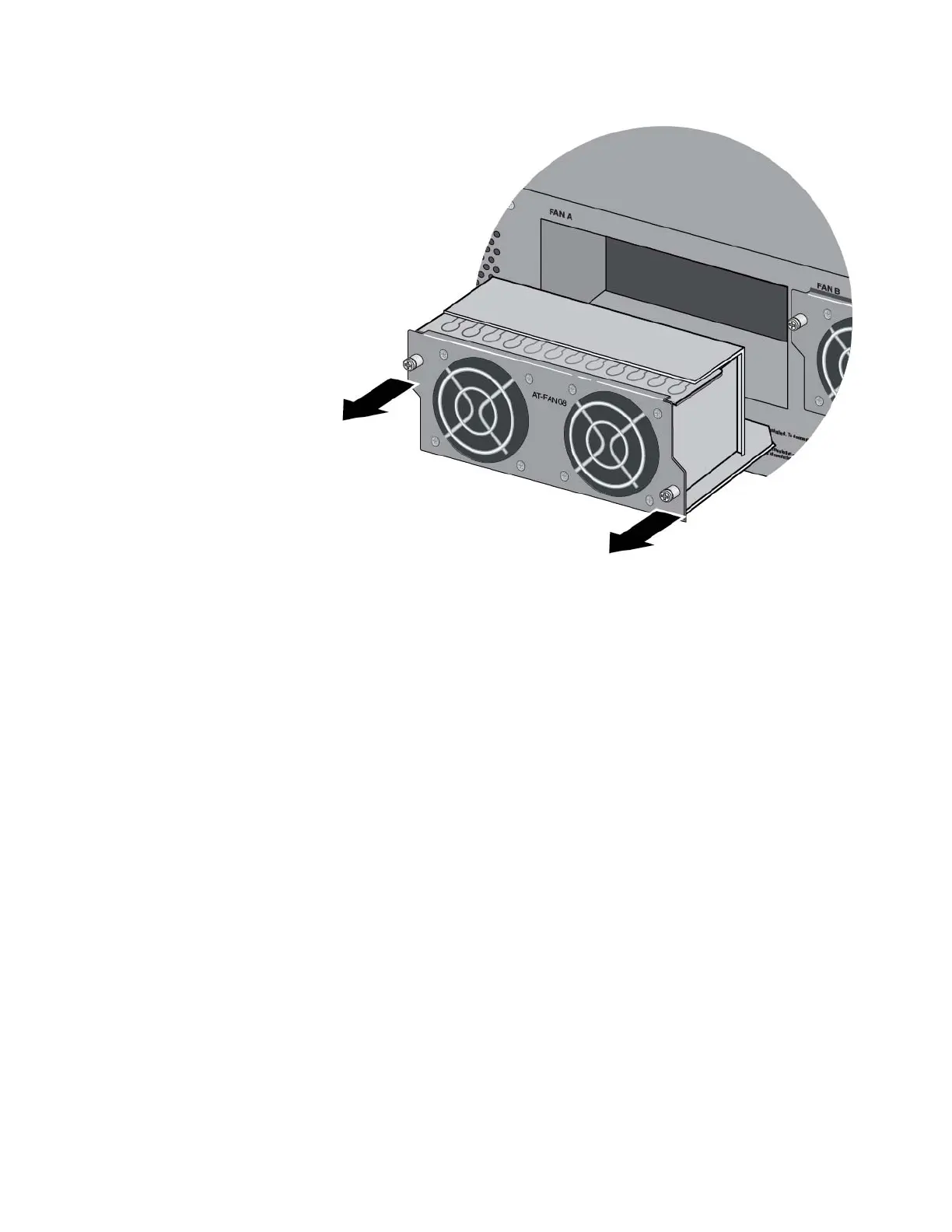

Figure 112. Disconnecting the AT-FAN08 Module from the Chassis
3. Continue with the next procedure to install a new AT-FAN08 Module.
Installing AT-
FAN08 Modules
This procedure requires the following tool:
#2 Phillips-head screwdriver (not provided)
The illustrations show the installation of the fan module in Fan A slot on
the back panel. The procedure is the same for installing the module in the
Fan B slot.
To install an AT-FAN08 Module, perform the following procedure:
1. Align the AT-FAN08 Module in the slot as shown in Figure 113 on
page 152.
