Chapter 4: Powering On the Chassis
96

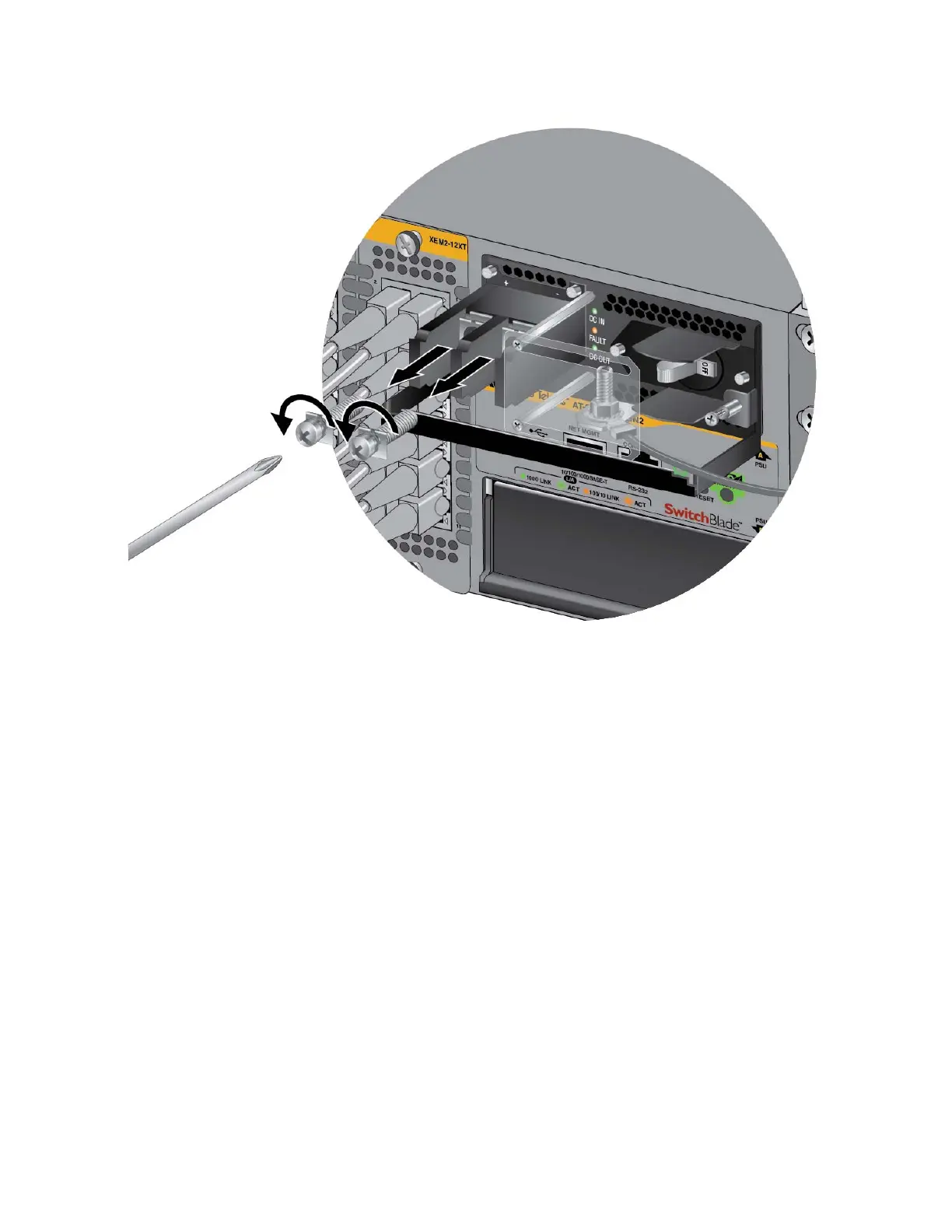

Figure 65. Removing the Terminal Screws
6. With a #3 Phillips-head screwdriver, connect the positive (+) power
lead wire to the positive terminal on the power supply, with one of the
terminal screws removed in the previous step. The positive terminal is
on the left. You may attach the terminals with the wires either above or
below the terminal block. Figure 66 on page 97 shows the positive wire
above the terminal block.
Allied Telesis recommends tightening the screw to 30 to 40 inch-lbs.
