AT-SBx908 Gen2 Switch Installation Guide
55

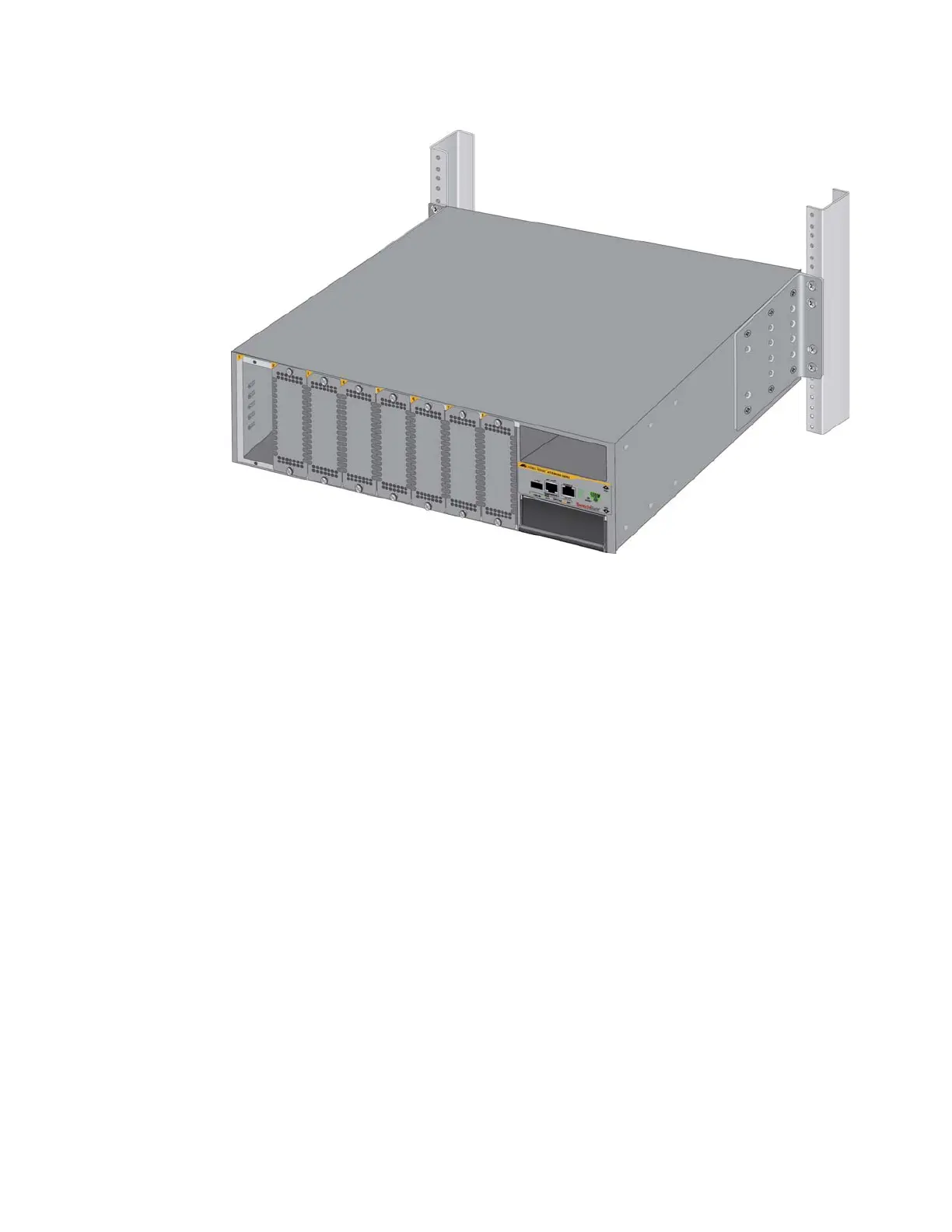

Figure 20. Chassis Orientations in the Equipment Rack (Continued)
To change the positions of the brackets, use a #2 phillips-head
screwdriver to remove them from their default positions and secure them
to the new locations. An example is shown in Figure 21 on page 56.
