Chapter 3: Installing the Chassis
66

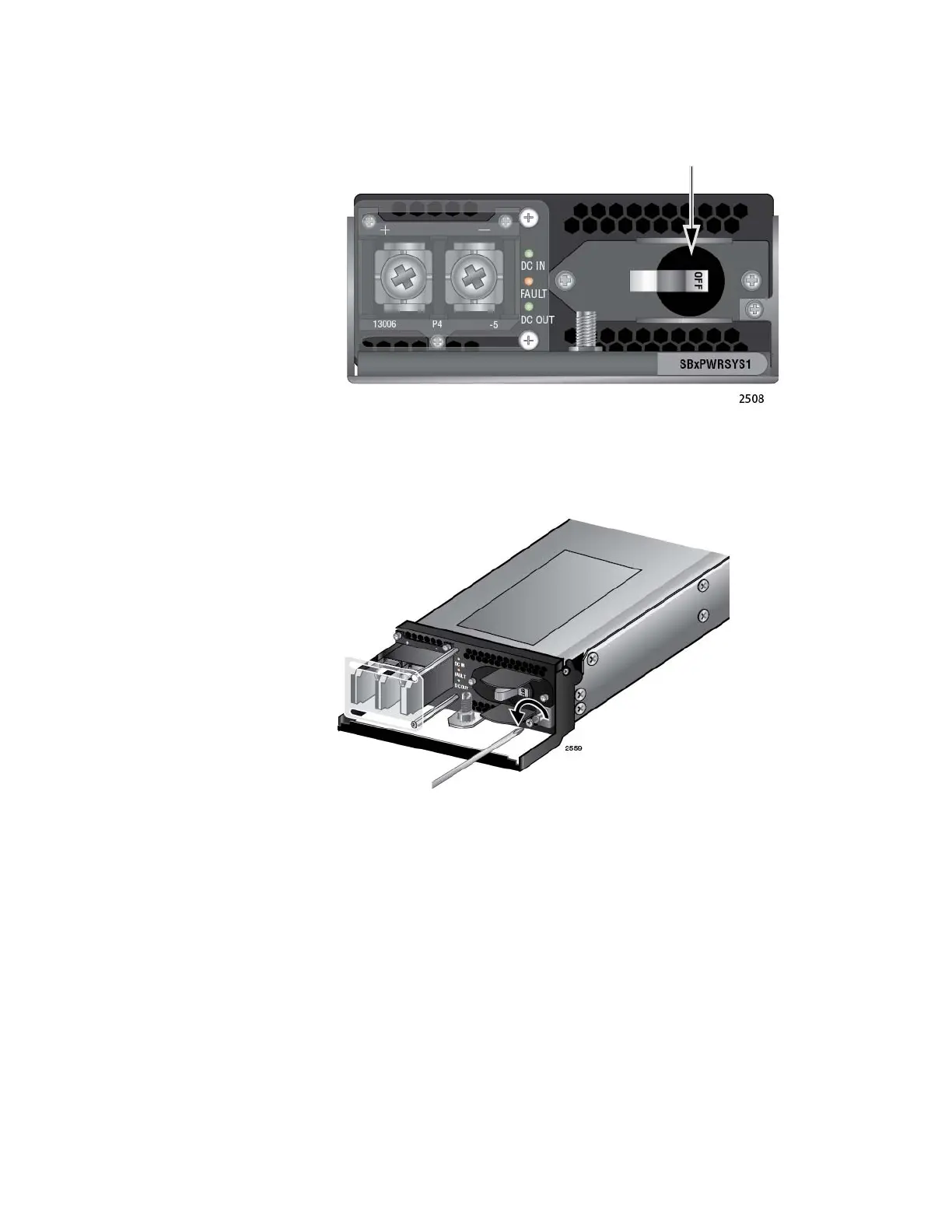

Figure 31. On/Off Switch on the AT-SBxPWRSYS1-80 DC Power Supply
4. With a #2 Phillips-head screwdriver, loosen the handle locking screw
on the power supply, as shown in Figure 32.
Figure 32. Loosening the Handle locking Screw on the AT-
SBxPWRSYS1-80 DC Power Supply
5. Lift the handle on the AT-SBxPWRSYS1-80 DC Power Supply. Refer
to Figure 33.
On/Off
Switch
