AT-SBx908 Gen2 Switch Installati
on Guide
143

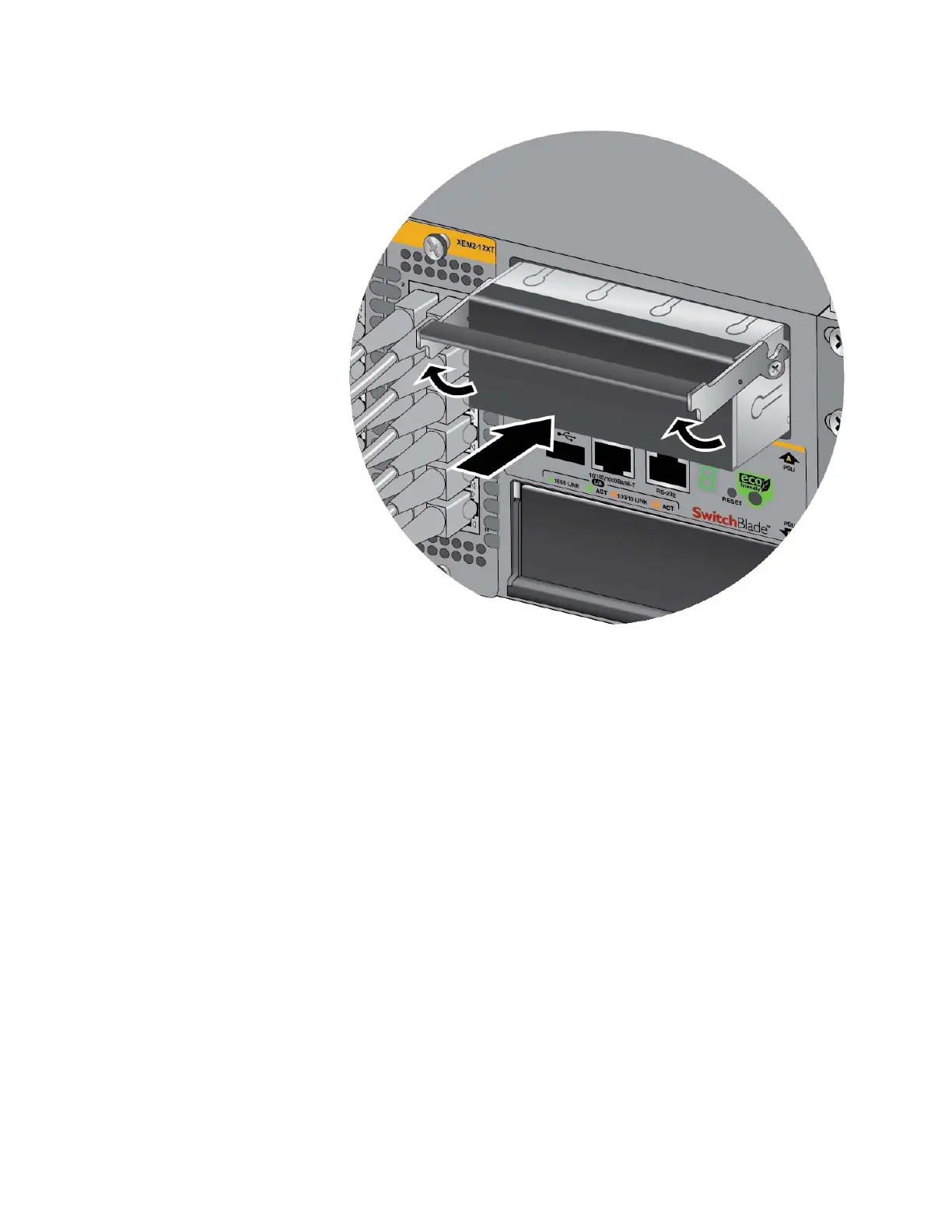

Figure 105. Installing the Blank Power Supply Slot Cover
14.
Lower the locking handle to secure the slot cover to th
e slot. Refer to
Figure 106 on page 144.
