Chapter 4: Powering On the Chassis
108

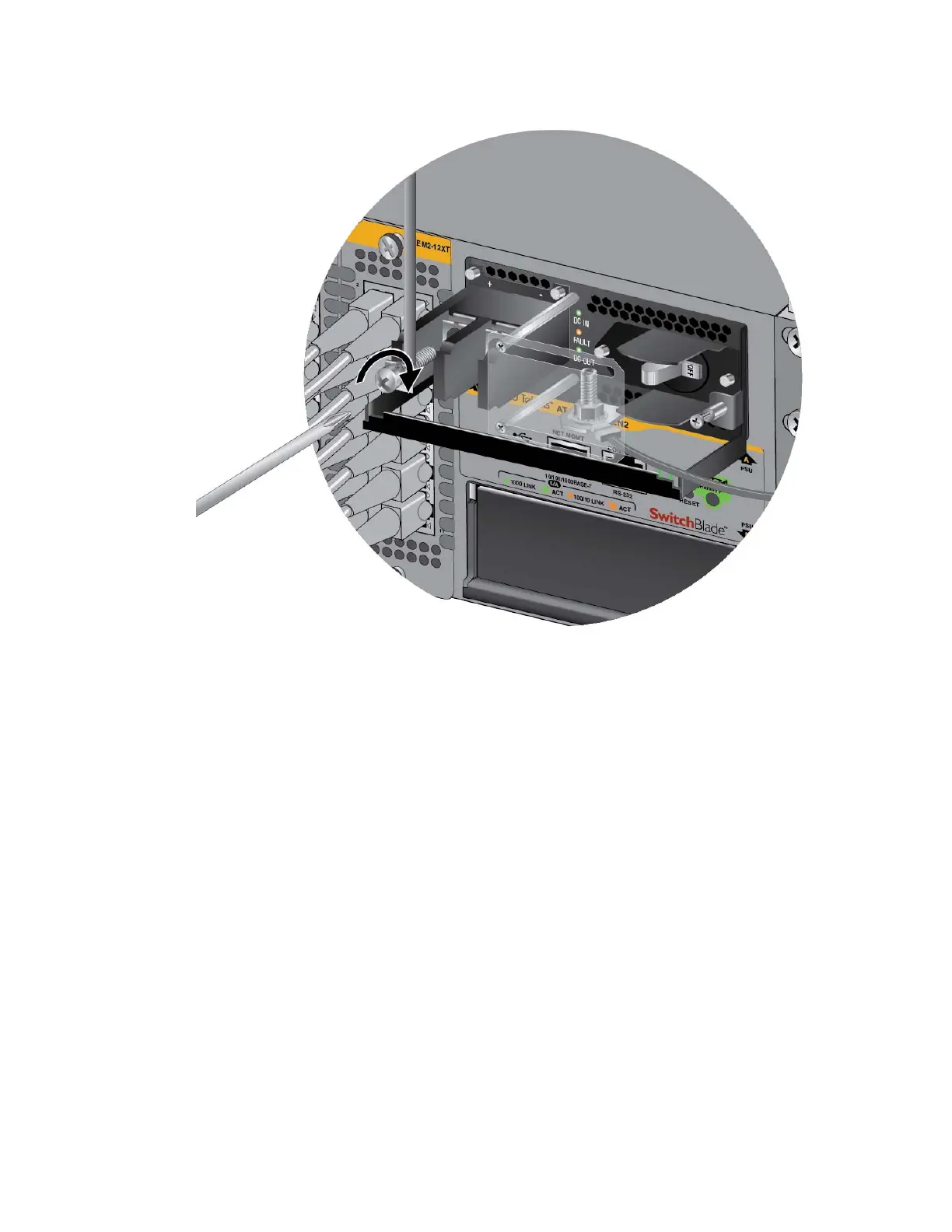

Figure 78. Connecting the Positive Wire With Bare Wire
5. Wrap the negative lead wire clockwise around the remaining terminal
screw and secure the screw and wire to the negative terminal
connection on the terminal block with a #3 Phillips-head screwdriver,
as shown in Figure 79 on page 109. The negative terminal is on the
right.
