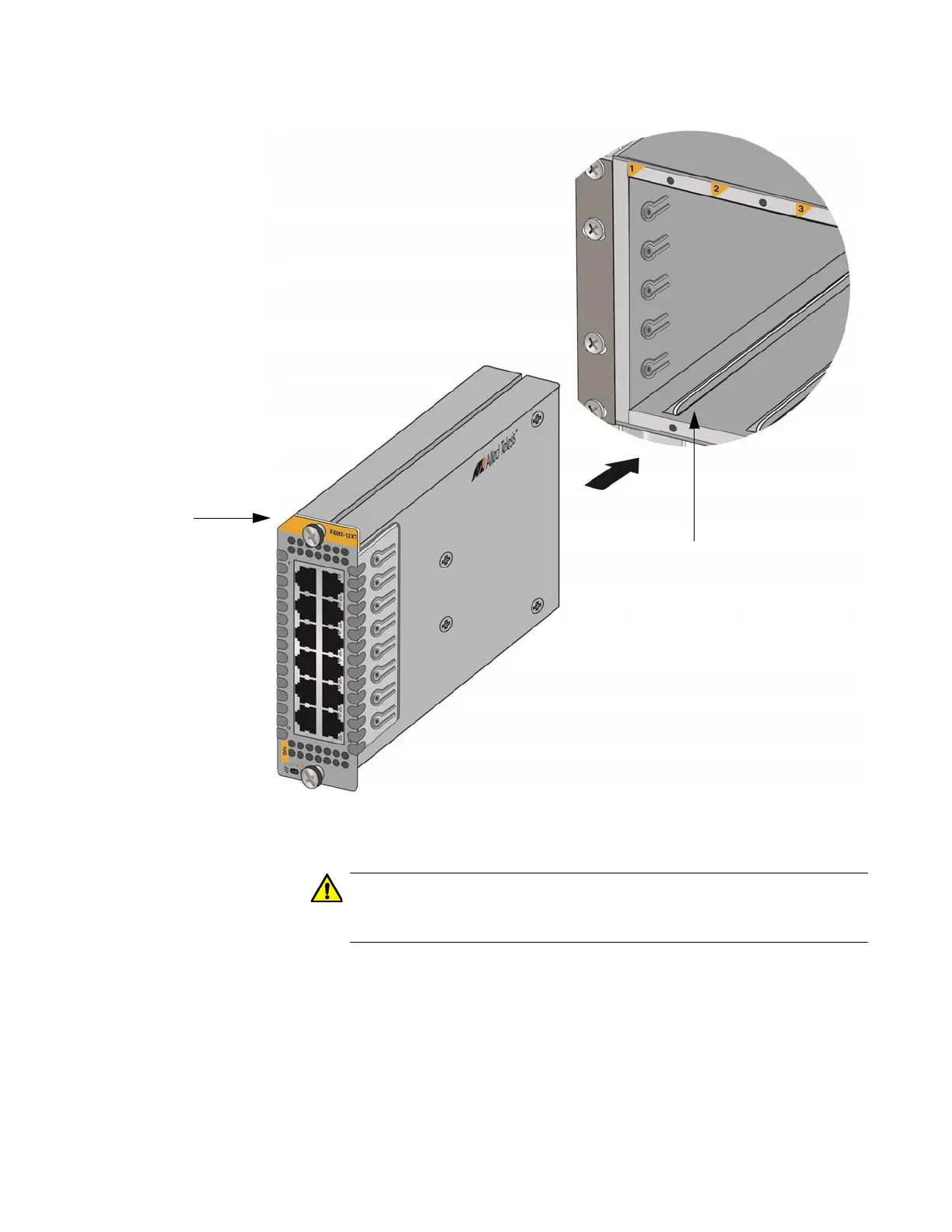

Figure 38. Sliding the Ethernet Line Card into the Slot
Caution
Do not force the card into the slot. If you feel resistance, remove it
and try again.
5. When you feel the line card make contact with the connector on the
backplane of the chassis. gently press on the top and bottom of the
faceplate to seat the card on the connector. Refer to Figure 39 on page
72.
Bottom Flange
Notch
