Chapter 6: Rep
lacing Modules
146

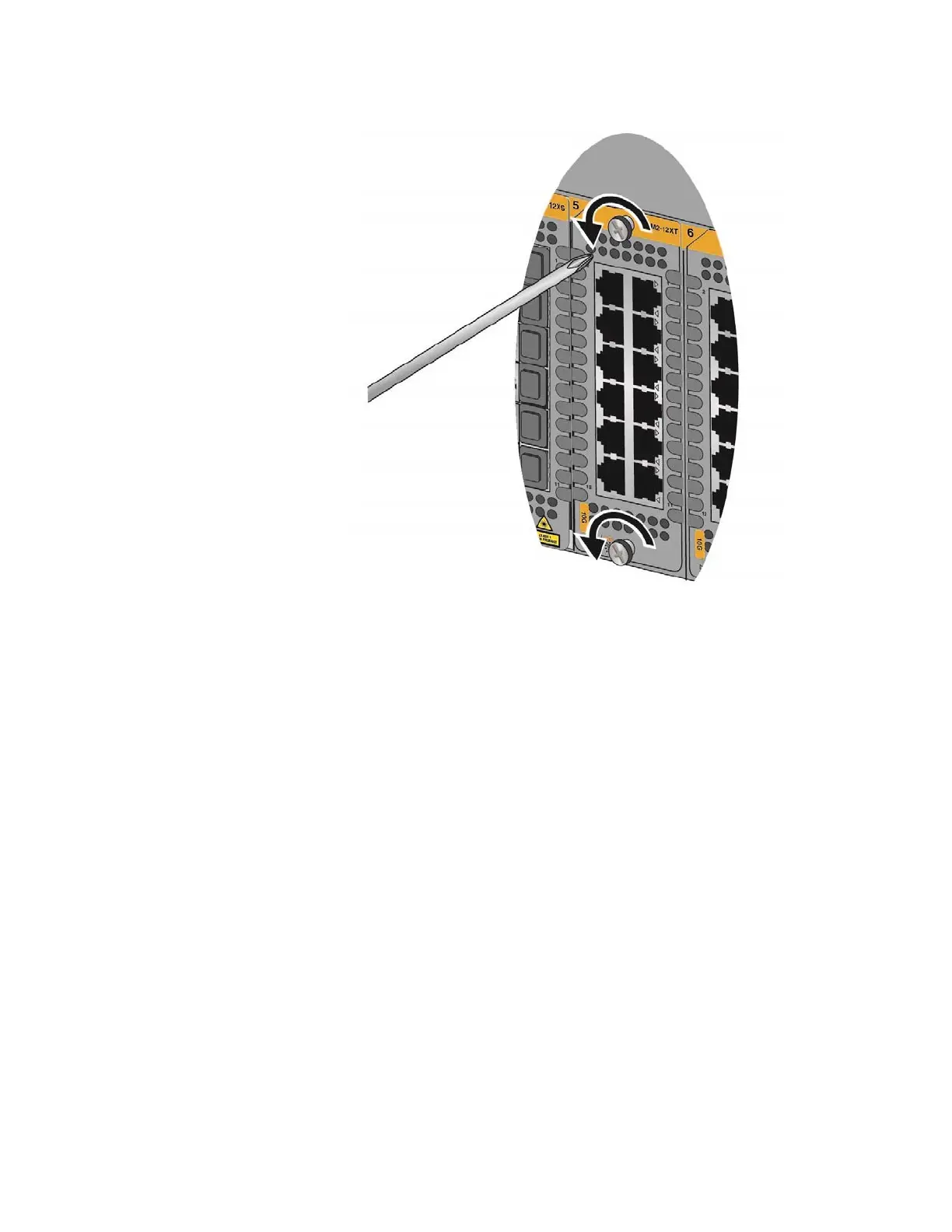

Figure 107. Loosening the Screws on the Eth
ernet Line Card
5.
Carefully pull on the scre
ws on the faceplate to disconnect th
e line
card from the connector on the backp
lane in the chassis. Ref
er to
Figure 108 on page 147.
