AT-SBx908 Gen2 Switch Installation Guide
131

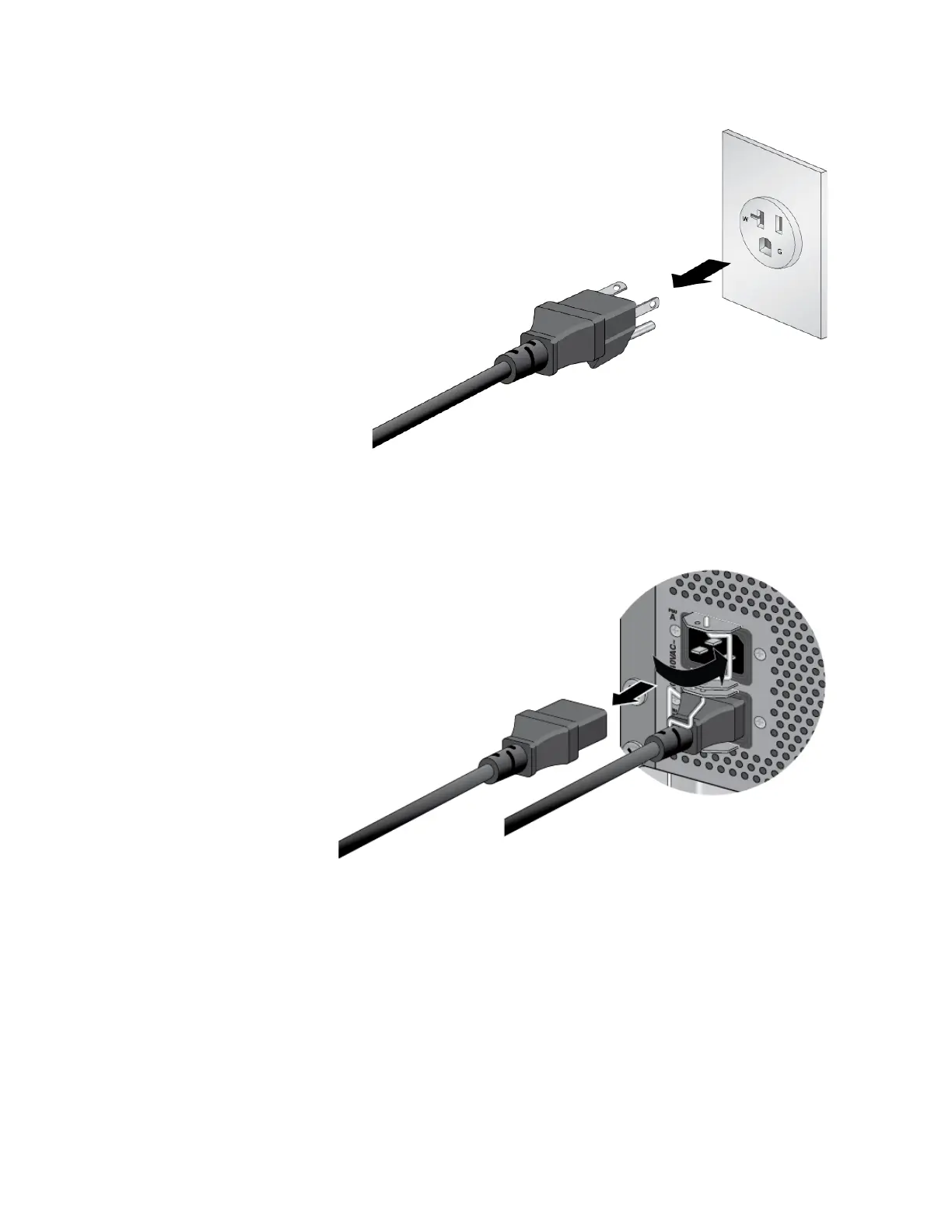

Figure 92. Disconnecting the AC Power Cord from the Power Source
2. Move the retaining clip from the power cord on the rear panel of the
chassis, and disconnect the cord. Refer to Figure 93.
Figure 93. Disconnecting the AC Power Cord from the Chassis
3. Lift the locking hand on the power supply. Refer to Figure 94 on page
132.
