Chapter 3: Installing the Chassis
76

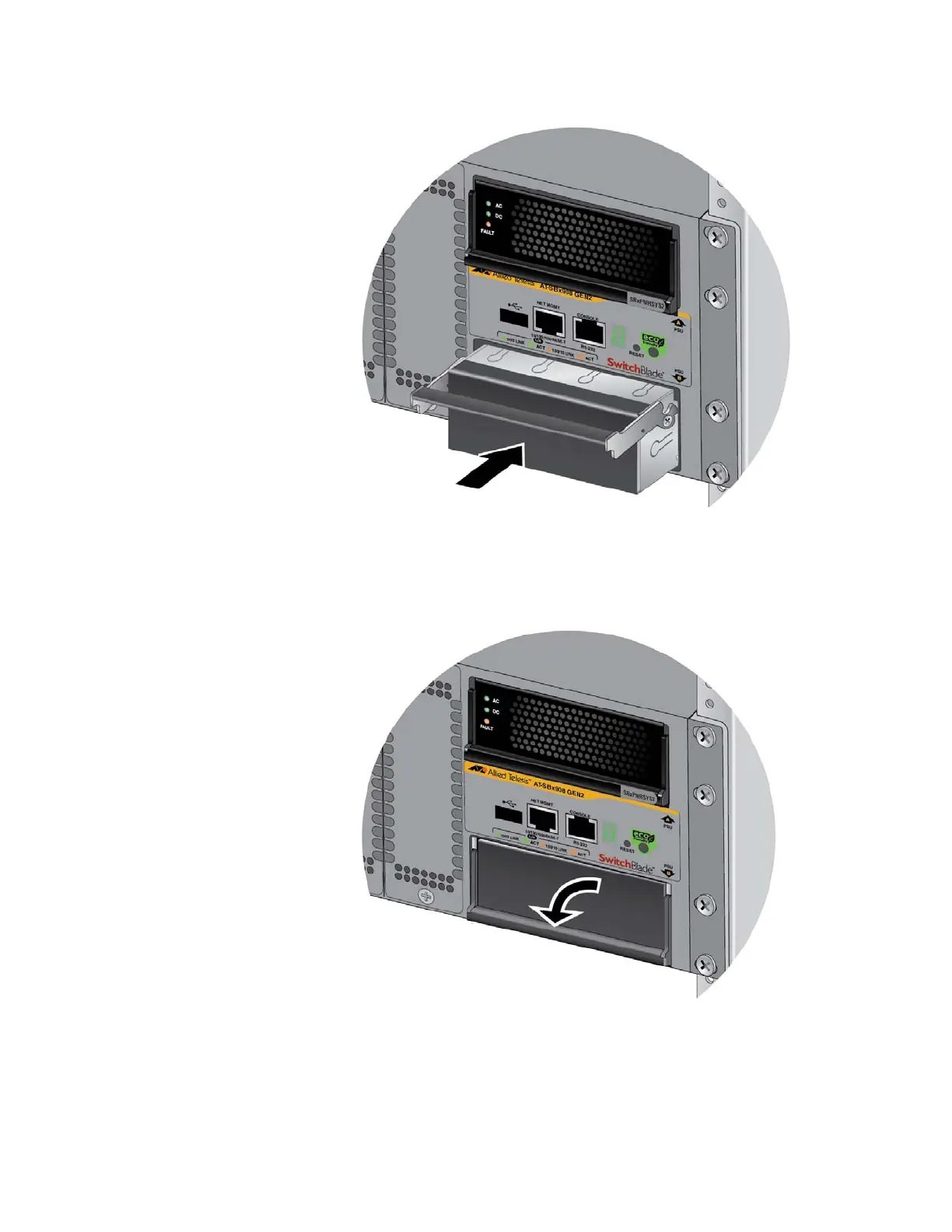

Figure 44. Aligning the Blank Power Supply Cover in the Slot
3. Lower the locking handle on the blank power supply slot cover to
secure the cover in the chassis. Refer to Figure 45.
Figure 45. Lowering the Locking Handle on the Blank Power Supply Slot
Cover
4. Go to “Installing the Power Cord Retaining Clips” on page 77.
