AT-SBx908 Gen2 Switch Installation Guide
73
Installing Blank Line Card Slot Covers
After installing the Ethernet line cards, inspect slots 1 to 8 for empty slots.
Empty slots need to be covered with the blank slot covers that come with
the chassis. Do one of the following:
If there are no empty, uncovered line card slots, go to “Installing
the Blank Power Supply Slot Cover” on page 75.
If there are empty, uncovered line card slots, perform the following
procedure.
To install blank slot covers, perform the following procedure:
1. Position the blank slot cover with the notch in the upper left and slide it
into the empty slot. Refer to Figure 41.

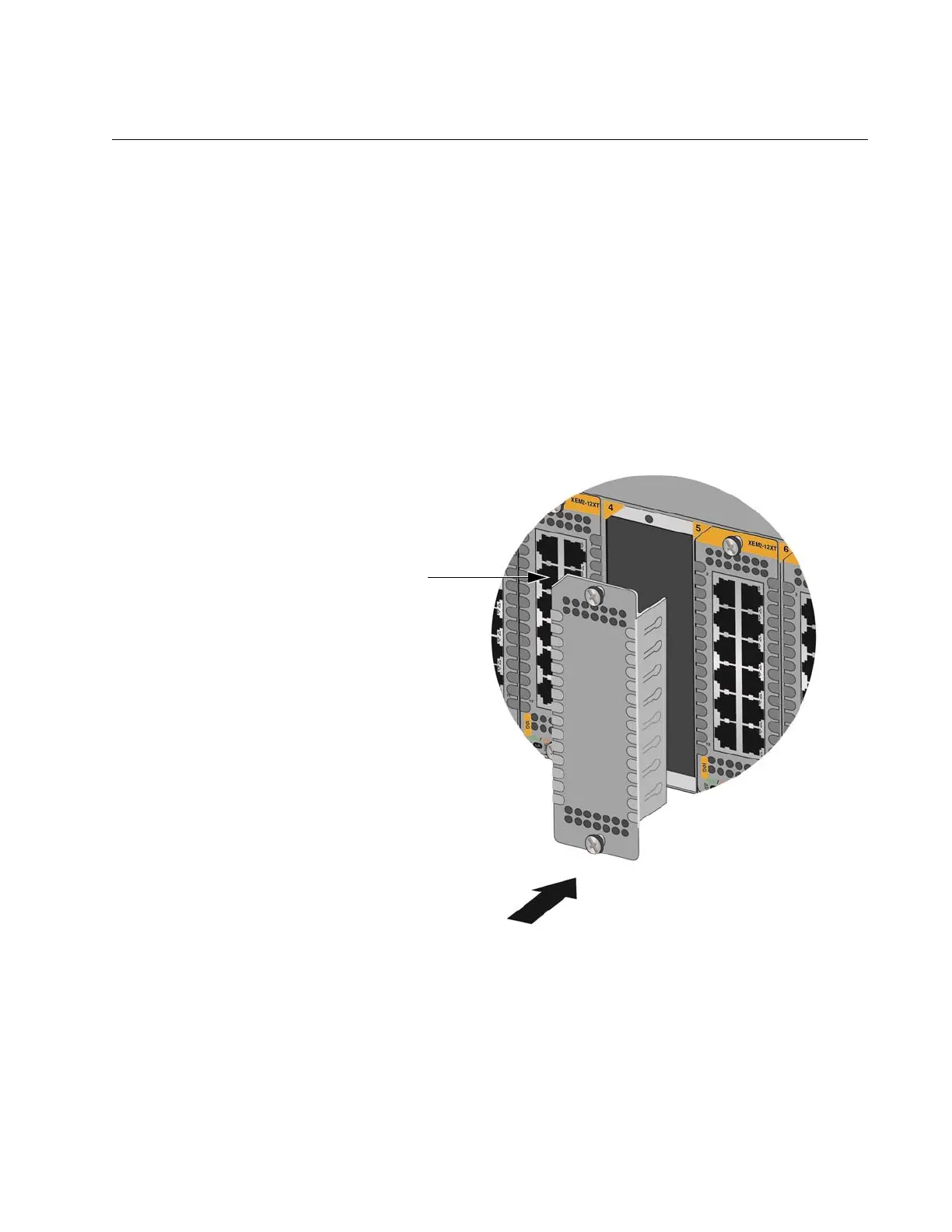

Figure 41. Installing a Blank Slot Cover
2. Tighten the two captive screws with a #2 Phillips-head screwdriver to
secure the cover to the chassis. Refer to Figure 42 on page 74.
