Chapter 1: Overview
32
Power Supplies
The power supply units for the chassis are the AT-SBxPWRSYS2 AC and
AT-SBxPWRSYS1-80 DC Power Supplies. Refer to Figure 6.

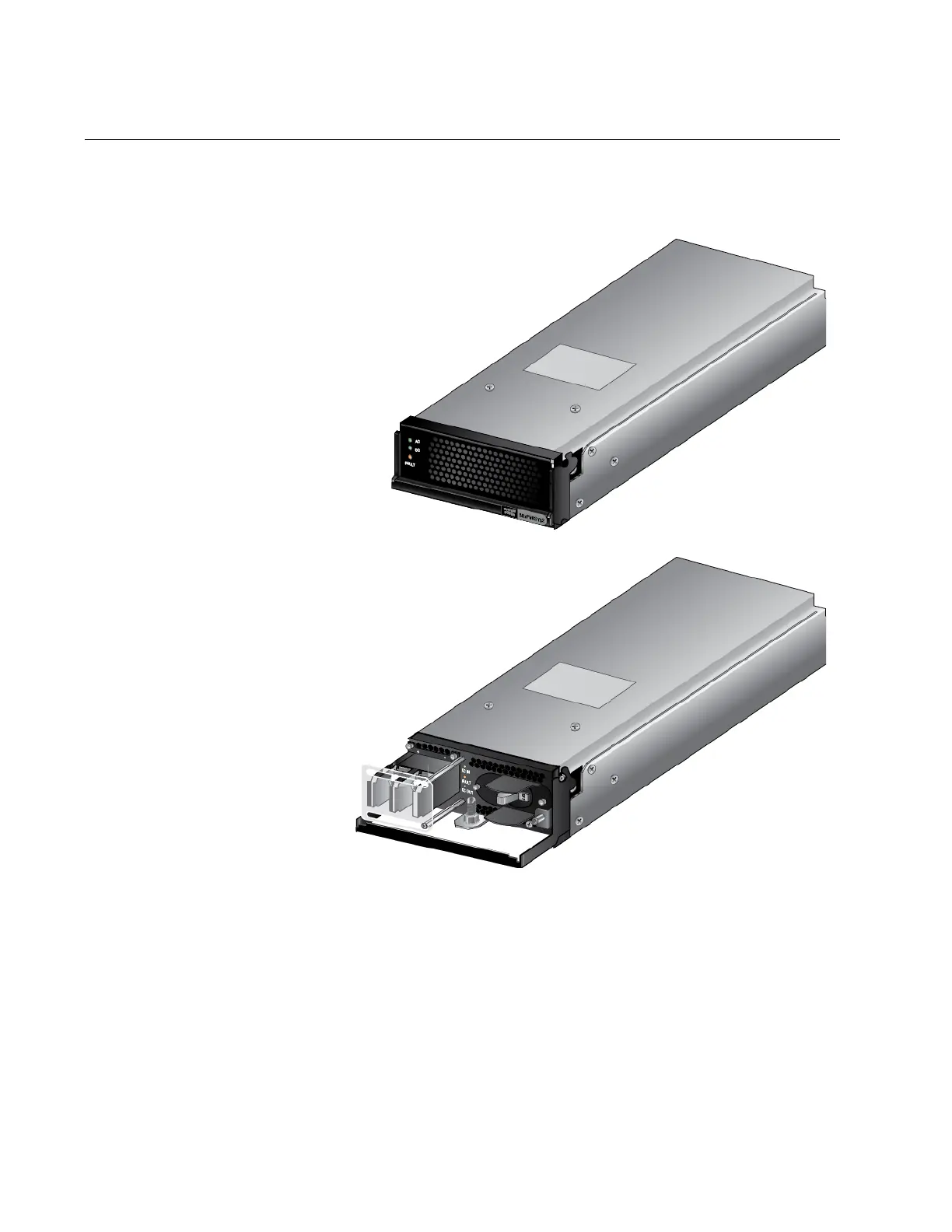

Figure 6. AT-SBxPWRSYS2 and AT-SBxPWRSYS1-80 Power Supplies
Here are the power supply guidelines:
The AT-SBxPWRSYS2 AC Power Supply uses the AC connectors
on the back panel of the switch and is intended for AC
environments.
The AT-SBxPWRSYS1-80 Power Supply has DC power
connectors on its front panel and is intended for DC environments.
AT-SBxPWRSYS2 AC
Power Supply
AT-SBxPWRSYS1-80 DC
Power Supply
