AT-SBx908 Gen2 Switch Installation Guide
83

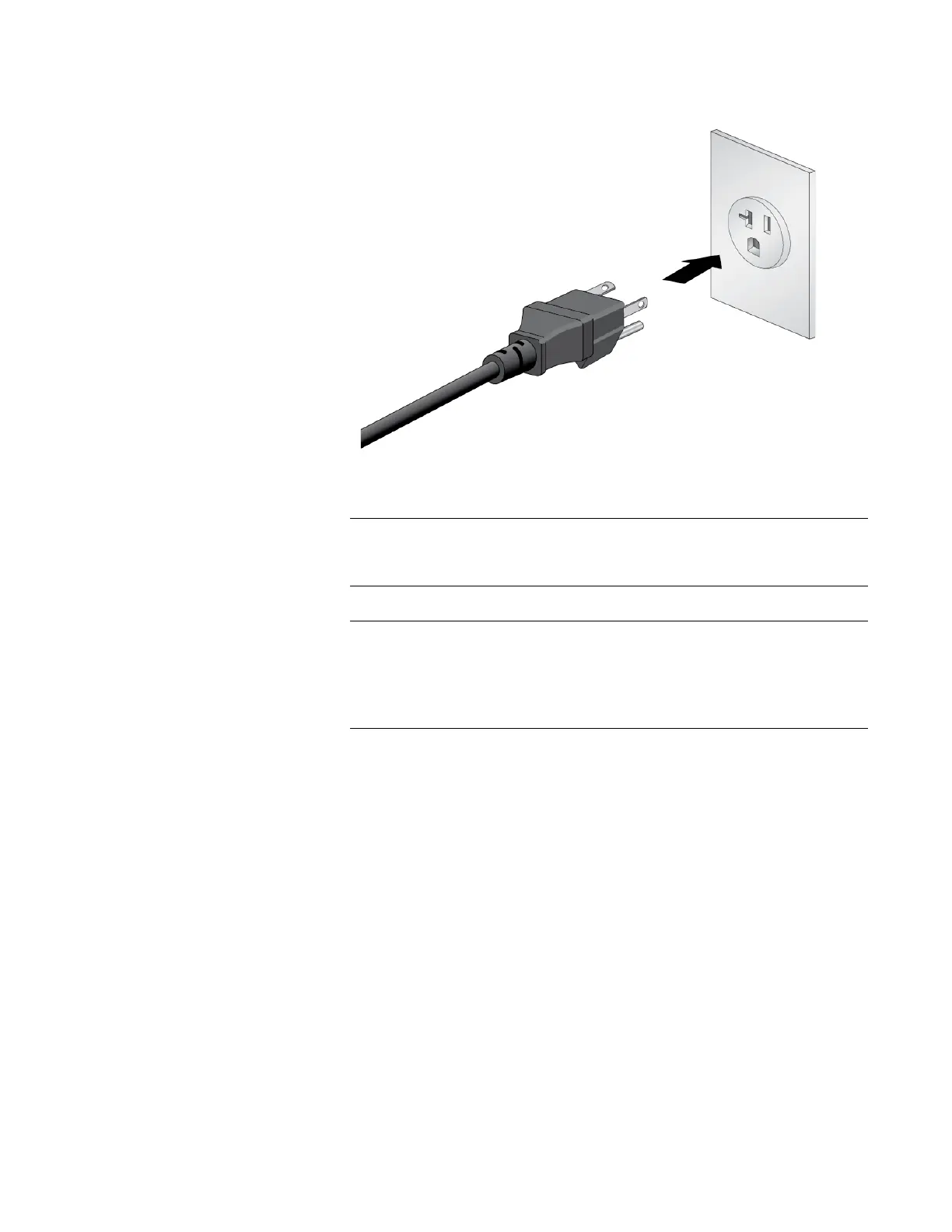

Figure 49. Connecting the Power Cord to an AC Power Source
The illustration shows the North American power cord. Your power
cord may be different.
The power cords included with AT-SBxPWRSYS2 Power Supplies
for 100-125 VAC installations have 20 Amp, 125 V NEMA 5-20P
plugs. The plugs require NEMA 5-20R receptacles. Refer to Figure 9
on page 43.
4. If the switch has two power supplies, repeat this procedure to connect
a power cord to the second power supply.
5. Do one of the following:
To monitor the switch as it initializes the management software, go
to “Monitoring the Initialization Processes” on page 111.
Wait three minutes for the switch to initialize its management
software and then go to “Verifying the Hardware Operations of the
Chassis” on page 114.
