Chapter 6: Replacing Modules
150
Replacing AT-FAN08 Modules
This section contains the procedure for replacing AT-FAN08 Modules in
the AT-SBx908 Gen2 Chassis.
Removing AT-
FAN08 Modules
This procedure requires the following tool:
#2 Phillips-head screwdriver (not provided)
The illustrations show the removal of the fan module from the Fan A slot
on the back panel. The procedure is the same for removing the module
from the Fan B slot.
To remove an AT-FAN08 Module from the chassis, perform the following
procedure:
1. Use a #2 Phillips-head screwdriver to loosen the two screws on the
faceplate of the fan module. Refer to Figure 111.

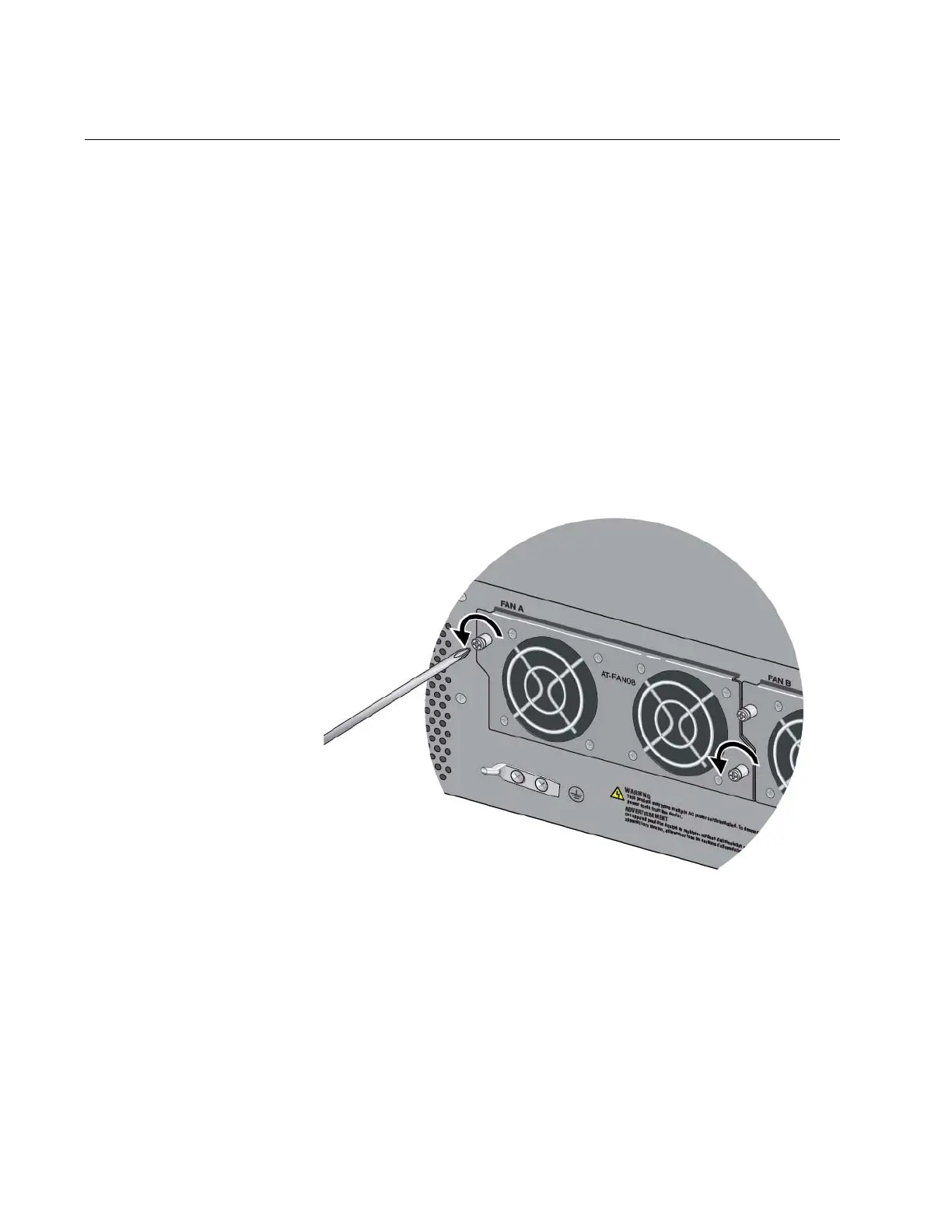

Figure 111. Loosening the Screws on the AT-FAN08 Module
2. Carefully pull on the screws on the faceplate to disconnect the line
card from the connector on the backplane in the chassis. Refer to
Figure 112 on page 151.
