AT-SBx908 Gen2 Switch Installati
on Guide
99

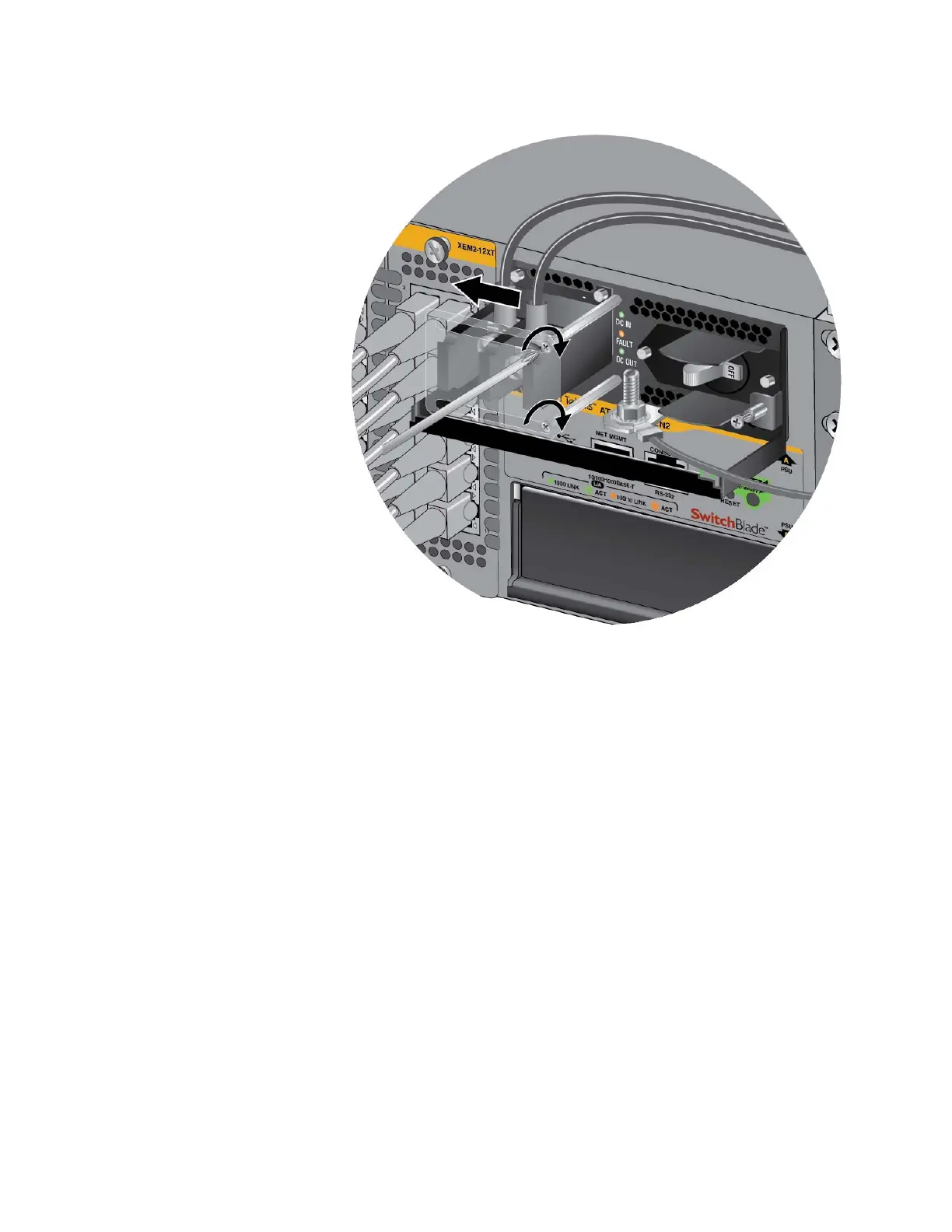

Figure 68. Closing the Plastic
Cover over the Terminal
Connectors
9.
With a #2 Phillips-head screwdriver, tighten the han
dle locking screw
to secure the power supply to th
e chassis. See Figure 69 on pag
e 100.
98
100
Table of Contents
Default Chapter
1
Installation Guide
1
Electrical Safety and Emissions Standards
3
Translated Safety Statements
4
Table of Contents
5
Preface
13
Document Conventions
14
Contacting Allied Telesis
15
Chapter 1: Overview
17
Overview
18
Table 1: Features of the AT-Sbx908 Gen2 Chassis
18
AT-Sbx908 Gen2 Chassis
21
Figure 1: Front Panel of the AT-Sbx908 Gen2 Chassis
21
Figure 2: Rear Panel of the AT-Sbx908 Gen2 Chassis
21
Ethernet Line Cards
22
Figure 3: AT-Sbx908 Gen2 Ethernet Line Cards
22
AT-XEM2-12XT Line Card
23
Table 2: Twisted Pair Ports on the AT-XEM2-12XT Line Card
23
Table 3: Link and Activity Leds on the AT-XEM2-12XT Line Card
23
AT-XEM2-12XS Line Card
25
Table 4: Link and Activity Leds on the AT-XEM2-12XS Line Card
25
AT-XEM2-4QS Line Card
26
Table 5: Link and Activity Status Leds for the AT-XEM2-4QS Line Card
26
Management Panel
27
USB Port
27
Figure 4: Management Panel
27
NET MGMT Ethernet Management Port
28
Table 6: Twisted Pair Cable for the NET MGMT Port on the Management Panel
28
Console (RS-232) Port
29
Switch ID LED
29
Table 7: NET MGMT Port LED
29
Eco-Friendly Button
30
Reset Button
30
Figure 5: Switch ID LED
30
Power Supplies
32
Figure 6: AT-Sbxpwrsys2 and AT-Sbxpwrsys1-80 Power Supplies
32
AT-FAN08 Units
34
Figure 7: AT-FAN08 Module
34
Specifying Ports in the Command Line Interface
35
Figure 8: PORT Parameter in the Command Line Interface
35
Table 8: PORT Parameter Format
35
Chapter 2: Beginning the Installation
37
Reviewing Safety Precautions
38
Choosing a Site for the Chassis
43
Figure 9: NEMA 5-20P Plug and Receptacle
43
Unpacking the Chassis
44
Figure 10: AT-Sbx908 Gen2 Switch Shipping Box
44
Figure 11: Lifting the Switch from the Shipping Box
45
Figure 12: Removing the Switch from the Protective Shipping Bag
45
Figure 13: Pre-Installed Items on the Front and Side Panels
46
Figure 14: Pre-Installed Items on the Rear Panel
47
Figure 15: Accessory Kit
48
Unpacking AT-Sbxpwrsys2 AC Power Supplies
49
Figure 16: Items in the Shipping Box for the AT-Sbxpwrsys2 AC Power Supply
49
Unpacking AT-Sbxpwrsys1-80 DC Power Supplies
50
Figure 17: Items in the Shipping Box for the AT-Sbxpwrsys1-80 DC Power Supply
50
Chapter 3: Installing the Chassis
51
Tools and Material
52
Adjusting the Equipment Rack Brackets
53
Figure 18: Chassis Orientations in the Equipment Rack
53
Figure 19: Chassis Orientations in the Equipment Rack (Continued)
54
Figure 20: Chassis Orientations in the Equipment Rack (Continued)
55
Figure 21: Example of Adjusting the Equipment Rack Brackets
56
Installing the Chassis in an Equipment Rack
57
Figure 22: Securing the Chassis to the Equipment Rack
57
Installing the Chassis Grounding Wire
58
Figure 23: Stripping the Grounding Wire
58
Figure 24: Removing the Grounding Lug from the Chassis
59
Figure 25: Attaching the Grounding Wire to the Grounding Lug
59
Figure 26: Installing the Grounding Lug and Wire
60
Installing AT-Sbxpwrsys2 AC Power Supplies
61
Figure 27: Removing the Blank Power Supply Panel from Power Supply Slot B
62
Figure 28: Lifting the Locking Handle on the AT-Sbxpwrsys2 Power Supply
62
Figure 29: Sliding the AT-Sbxpwrsys2 AC Power Supply into the Chassis
63
Figure 30: Lowering the Locking Handle on the AT-Sbxpwrsys2 AC Power Supply
64
Installing AT-Sbxpwrsys1-80 DC Power Supplies
65
Figure 31: On/Off Switch on the AT-Sbxpwrsys1-80 DC Power Supply
66
Figure 32: Loosening the Handle Locking Screw on the AT-Sbxpwrsys1-80 DC Power Supply
66
Figure 33: Lifting the Locking Handle on the AT-Sbxpwrsys1-80 DC Power Supply
67
Figure 34: Inserting the AT-Sbxpwrsys1-80 DC Power Supply
67
Figure 35: Lowering the Locking Handle on the AT-Sbxpwrsys1-80 DC Power Supply
68
Installing Ethernet Line Cards
69
Figure 36: Removing a Blank Line Card Cover
69
Figure 37: Removing the Ethernet Line Card from the Anti-Static Bag
70
Figure 38: Sliding the Ethernet Line Card into the Slot
71
Figure 39: Seating an Ethernet Line Card in the Chassis
72
Figure 40: Tightening the Two Captive Screws on the Ethernet Line Card
72
Installing Blank Line Card Slot Covers
73
Figure 41: Installing a Blank Slot Cover
73
Figure 42: Tightening the Captive Screws on a Blank Slot Cover
74
Installing the Blank Power Supply Slot Cover
75
Figure 43: Lifting the Locking Handle on the Blank Power Supply Slot Cover
75
Figure 44: Aligning the Blank Power Supply Cover in the Slot
76
Figure 45: Lowering the Locking Handle on the Blank Power Supply Slot Cover
76
Installing the Power Cord Retaining Clips
77
Figure 46: Installing the Power Cord Retaining Clips
77
Chapter 4: Powering on the Chassis
79
Verifying the Installation
80
Powering on AT-Sbxpwrsys2 Power Supplies
81
Figure 47: Connecting the AC Power Cord
82
Figure 48: Securing the Power Cord with the Retaining Clip
82
Figure 49: Connecting the Power Cord to an AC Power Source
83
Powering on AT-Sbxpwrsys1-80 DC Power Supplies
84
Figure 50: Components on the AT-Sbxpwrsys1-80 DC Power Supply
85
Choosing a Method for Attaching the Grounding Wire
86
Connecting the Grounding Wire with the Grounding Terminal
86
Figure 51: Grounding Wire Terminal
86
Figure 52: Stripping the Stranded Grounding Wire
86
Figure 53: Attaching the Stranded Grounding Wire to the Grounding Terminal
86
Figure 54: On/Off Switch on the AT-Sbxpwrsys1-80 DC Power Supply
87
Figure 55: Removing the Nut and Washer from the Grounding Post
88
Figure 56: Attaching the Grounding Lug and Wire to the Grounding Post
89
Figure 57: Securing the Grounding Wire
90
Connecting the Grounding Wire with Bare Wire
91
Figure 58: Stripping the Solid or Stranded Grounding Wire
91
Figure 59: Attaching the Bare Grounding Wire to the Grounding Post
91
Figure 60: Securing the Bare Grounding Wire to the Grounding Post
92
Choosing a Method for Attaching the Power Wires
93
Connecting the DC Power Wires with the Straight Terminals
93
Figure 61: Power Wire Terminals
93
Figure 62: Stripping the Power Wires
94
Figure 63: Attaching the Power Wires to the Straight Terminal Lugs
94
Figure 64: Opening the Plastic Cover
95
Figure 65: Removing the Terminal Screws
96
Figure 66: Connecting the Positive (+) Power Wire with a Straight Terminal
97
Figure 67: Connecting the Negative (-) Power Wire with a Straight Terminal
98
Figure 68: Closing the Plastic Cover over the Terminal Connectors
99
Connecting the DC Power Wires with the Right Angle Terminals
100
Figure 69: Tightening the Handle Locking Screw
100
Figure 70: Stripping the Power Wires
101
Figure 71: Attaching the Power Wires to the Right Angle Terminal Lugs
101
Figure 72: Removing the Plastic Cover
102
Figure 73: Removing the Terminal Screws
103
Figure 74: Connecting the Positive (+) Power Wire with a Right Angle Terminal
104
Figure 75: Connecting the Negative (-) Power Wire with a Right Angle Terminal
105
Figure 76: Tightening the Handle Locking Screw
106
Connecting Bare DC Power Wires
107
Figure 77: Stripping Solid or Stranded DC Power Wires
107
Figure 78: Connecting the Positive Wire with Bare Wire
108
Figure 79: Connecting the Negative Lead Wire with Bare Wire
109
Monitoring the Initialization Processes
111
Figure 80: Switch Initialization Messages
111
Figure 81: Switch Initialization Messages (Continued)
112
Figure 82: Switch Initialization Messages (Continued)
113
Verifying the Hardware Operations of the Chassis
114
Starting a Local Management Session
114
Figure 83: Connecting the Management Cable to the Console RS-232 Port
114
Verifying the Chassis with the Alliedware Plus Commands
115
Figure 84: SHOW CARD Command
116
Chapter 5: Cabling the Networking Ports
117
Cabling the 1Gbps or 10Gbps Ports on the AT-XEM2-12XT Line Card
118
Guidelines to Handling SFP, SFP+, and QSFP+ Transceivers
119
Installing 1Gbase SFP or 10Gbase SFP+ Transceivers in AT-XEM2-12XS Line Cards
120
Installing 1Gbase SFP or 10Gbase SFP+ Transceivers in AT-XEM2- 12XS Line Cards
120
Figure 85: Installing an SFP Transceiver
120
Figure 86: Removing the Dust Cover from an SFP or SFP+ Transceiver
121
Figure 87: Positioning the SFP or SFP+ Handle in the Upright Position
121
Figure 88: Connecting a Fiber Optic Cable to an SFP or SFP+ Transceiver
122
Installing AT-SP10TW Direct Connect Twinax Cables in the AT-XEM2-12XS Switch
123
Installing AT-SP10TW Direct Connect Twinax Cables in the AT-XEM2- 12XS Switch
123
Figure 89: Installing AT-SP10TW Cables in the AT-XEM2-12XS Line Card
123
Installing AT-QSFPSR4 or AT-QSFPLR4 Transceivers in QSFP+ Slots
125
Installing AT-QSFPCU Cables in QSFP+ Slots
126
Figure 90: Removing the Dust Cover from a Slot on the AT-XEM2-4QS Line Card
126
Figure 91: Sliding the AT-QSFPCU Cable into the Slot
127
Chapter 6: Replacing Modules
129
Replacing AT-Sbxpwrsys2 AC Power Supplies
130
Figure 92: Disconnecting the AC Power Cord from the Power Source
131
Figure 93: Disconnecting the AC Power Cord from the Chassis
131
Figure 94: Lifting the Locking Handle on the AT-Sbxpwrsys2 AC Power Supply
132
Figure 95: Removing the AT-Sbxpwrsys2 AC Power Supply
133
Replacing AT-Sbxpwrsys1-80 DC Power Supplies
134
Figure 96: Loosening the Screw on the Locking Handle
134
Figure 97: Opening the Plastic Window over the Terminal Block
135
Figure 98: Removing the Negative Lead Wire
136
Figure 99: Removing the Positive Lead Wire from the Terminal Block
137
Figure 100: Reinstalling the Screws on the Positive and Negative Terminals
138
Figure 101: Closing the Plastic Cover
139
Figure 102: Removing the Grounding Wire
140
Figure 103: Reinstalling the Nut and Washer on the Grounding Post
141
Figure 104: Lifting the Locking Handle and Removing the Power Supply
142
Figure 105: Installing the Blank Power Supply Slot Cover
143
Figure 106: Lowering the Locking Handle on the Power Supply Slot Cover
144
Removing Ethernet Line Cards
145
Figure 107: Loosening the Screws on the Ethernet Line Card
146
Figure 108: Disconnecting an Ethernet Line Card from the Chassis
147
Figure 109: Sliding an Ethernet Line Card from the Chassis
148
Figure 110: Placing the Ethernet Line Card in Its Anti-Static Bag
149
Replacing AT-FAN08 Modules
150
Removing AT-FAN08 Modules
150
Figure 111: Loosening the Screws on the AT-FAN08 Module
150
Installing AT-FAN08 Modules
151
Figure 112: Disconnecting the AT-FAN08 Module from the Chassis
151
Figure 113: Aligning the AT-FAN08 Module in the Chassis Slot
152
Figure 114: Seating the AT-FAN08 Module on the Connector in the Chassis
152
Figure 115: Tightening the Two Captive Screws on the AT-FAN08 Module
153
Chapter 7: Troubleshooting
155
Appendix A: Technical Specifications
159
Physical Specifications
160
Table 9: Product Dimensions
160
Table 10: Product Weights
160
Table 11: Ventilation Requirements
161
Environmental Specifications
162
Table 12: Environmental Specifications
162
Power Specifications
163
Table 13: AC Voltage and Frequency Requirements
163
Table 14: DC Voltage Requirements
163
Table 15: Maximum Power Consumption (Watts)
163
Table 16: Typical Power Savings in Eco-Friendly Mode (Watts)
163
Table 17: Maximum Power Supply Efficiency (Based on 100V Input Voltage)
164
Table 18: Heat Dissipation (British Thermal Units/Hour)
164
Certifications
165
Table 19: Product Certifications
165
Port Pinouts
166
Figure 116: Pin Layout (Front View) of the 1Gbps or 10Gbps Ports on the AT-XEM2-12XT Line Card
166
Table 20: Pin Signals for 1Gbps or 10Gbps
166
Table 21: RJ-45 Pin Signals for the Console Port on the Management Panel
167
Table 22: RJ-45 Pin Signals for 10 or 100Mbps for the NET MGMT Port on the Management Panel
167
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Allied Telesis AT-SBx908 Gen2 and is the answer not in the manual?
Ask a question
Allied Telesis AT-SBx908 Gen2 Specifications
General
Brand
Allied Telesis
Model
AT-SBx908 Gen2
Category
Switch
Language
English
Related product manuals
Rapier i AT-RP16Fi/SC
123 pages
Allied Telesis AT-9028
1278 pages
Allied Telesis AT-GS950
46 pages
Allied Telesis AT-FS716
44 pages
Allied Telesis AT-8026T
116 pages
Allied Telesis AT-FS708
48 pages
Allied Telesis AT-8350GB
104 pages
Allied Telesis AT-GS924MX
118 pages
Allied Telesis AT-9000/28
1276 pages
Allied Telesis AT-GS910/8
70 pages
Allied Telesis AT-RS710TX
48 pages
Allied Telesis AT-8624PoE
36 pages
Need help?
General
To Next Page
