Chapter 6: Rep
lacing Modules
148

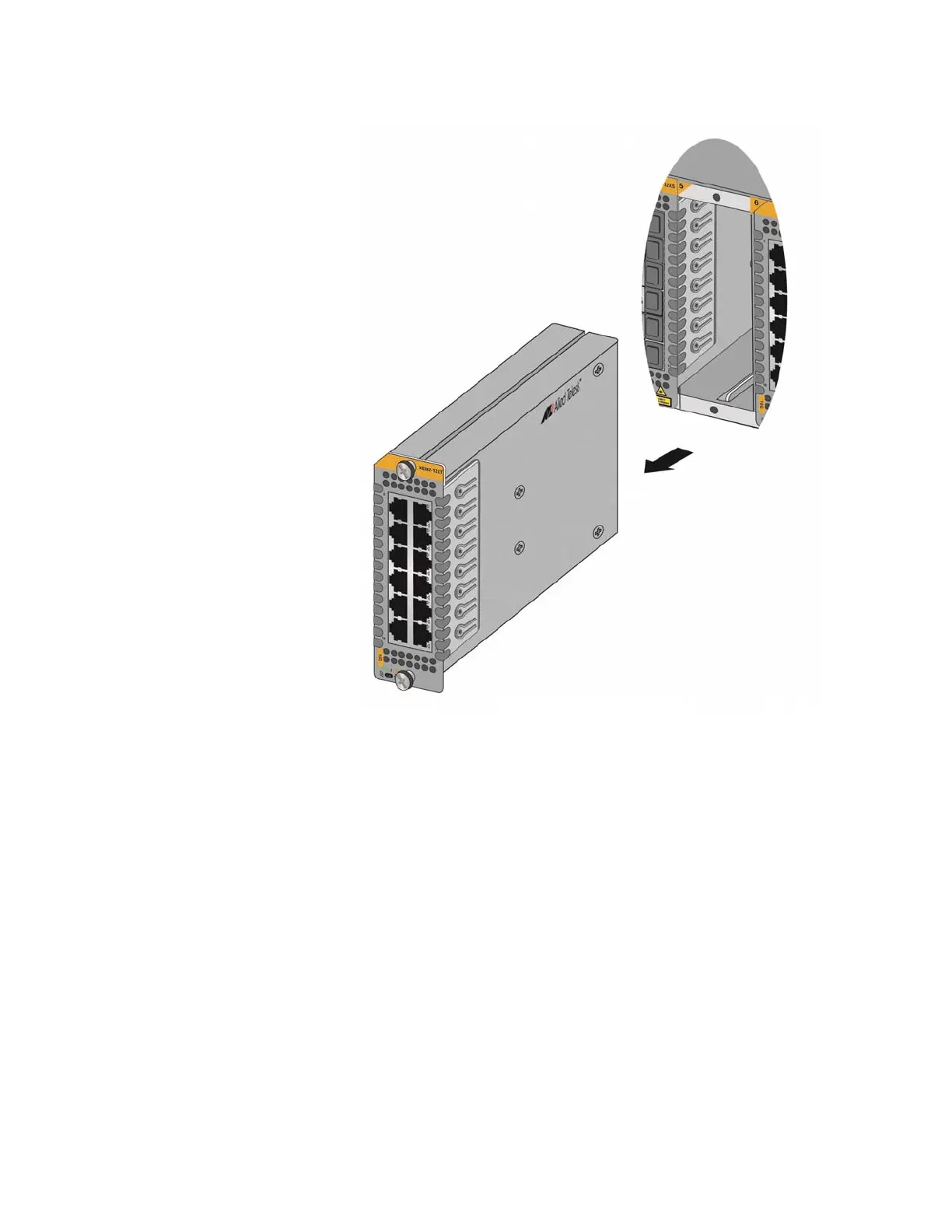

Figure 109. Sliding an Ethernet Line Card from
the Chassis
7.
If you are not installing the line card in another slot, re
turn it to its anti-
static bag and shipping containe
r. Refer to Figure 110 on page
149.
147
149
